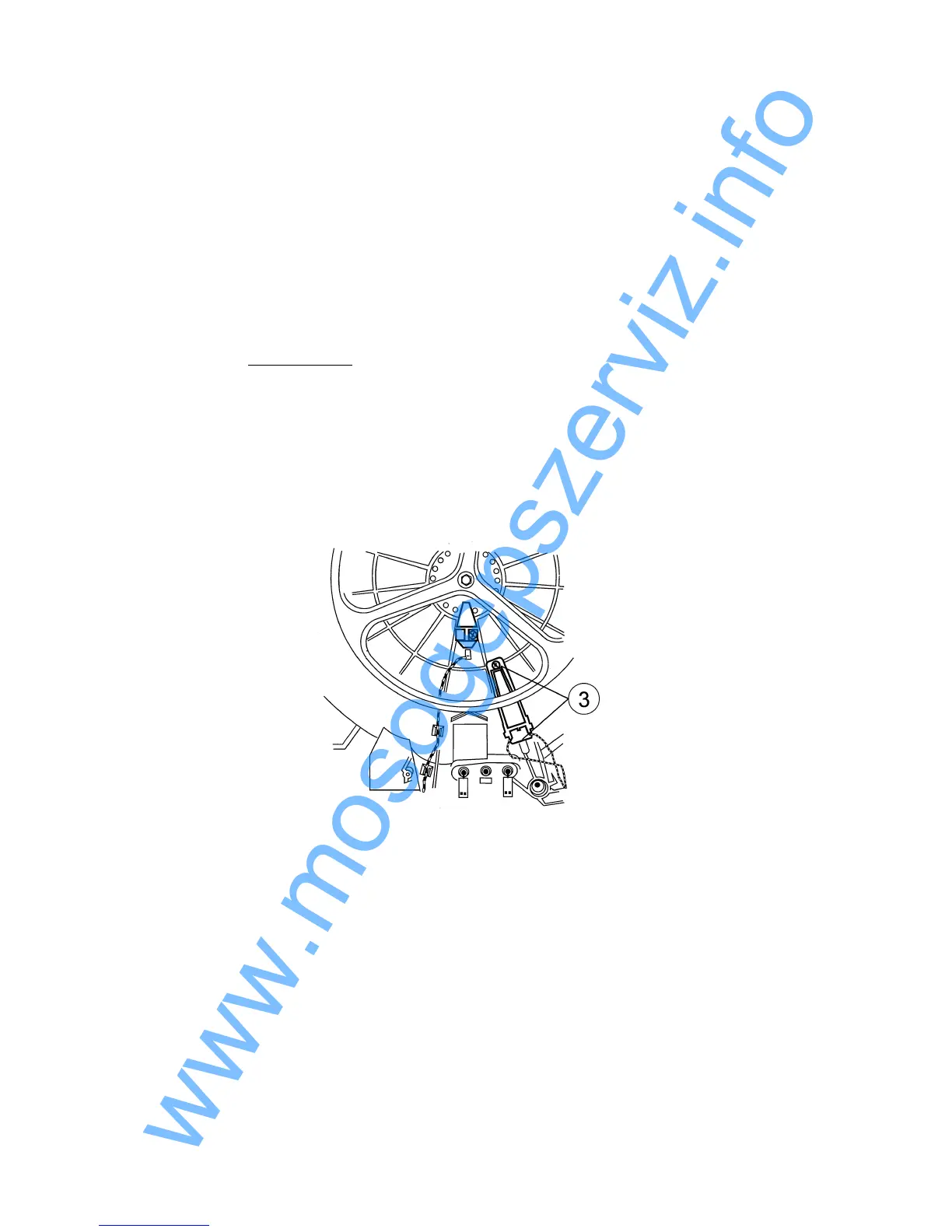

Left weight
1 - Remove the left side panel.
2 - Remove the foam damper.
3 - Remove the direct spray hose.
4 - Untighten the 4 screws for the fixation of the fixing device and remove this
device.
The weights are assembled in reverse order.
16) Drum support positioning DSP
a) Disassembling
1 - Remove the right side panel.
2 - Remove the drive belt and the pulley.
3 - Unscrew the 2 screws from the DSP.
