- 12 -
HV844-N 12.01 R.B. 599 51 30 44 EN

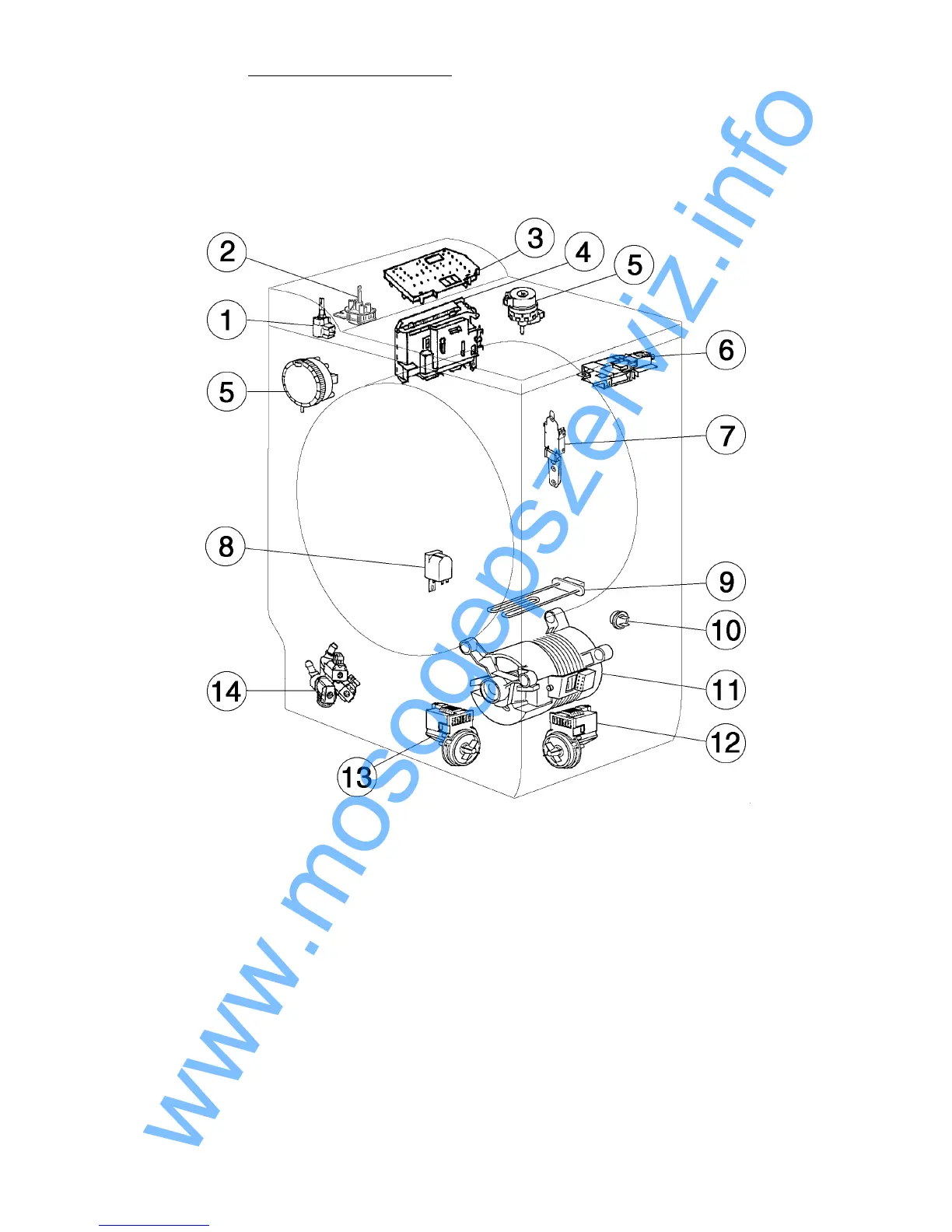

e) Electric components position
1 - on/off switch
2 - program selector
3 - input/output electronic
4 - electronic module
5 - pressure switch (1 or 2 pressure switches following model)
6 - door lock
7 - DSP - drum support positioning
8 - suppressor
9 - heating element
10 - NTC sensor (drain bellows)
11 - drum motor
12 - circulation pump
13 - drain pump
14 - cold water inlet valve (2- or 3-fold, following model)
