- 24 -
TSE-N 01.03 A.B. 599 50 75 69 EN
2
1
3
4
5
6
7
21
1

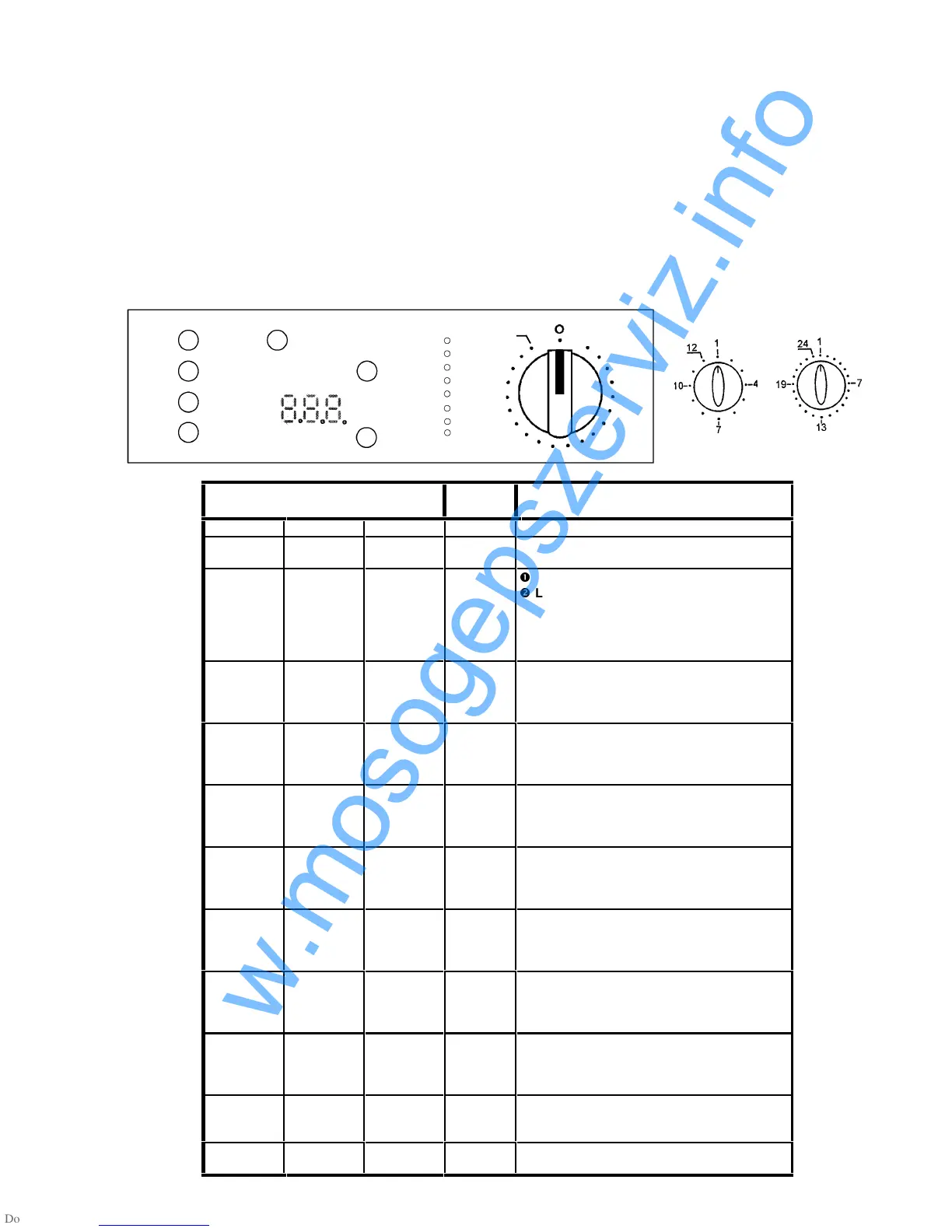

Service Program
Fault indication by display or cycle run display.
ð Switch off the appliance.
ð Hold buttons 1 and 2 pressed simultaneously and turn the program selector one position to
the right.
ð Hold the two selected buttons pressed until possibly a buzzer will sound and/or the LEDs and
the display will give a running light.
ð By the program selector it is possible to interrogate the desired checking function according
to the table.
Position of the rotary switch Button Test function
Off Off Off Off
24
Positions
21
Positions
12
Positions
02 02 02 Button 1
and
Button 2
å
Start of the customer service testprogram
LED - Test
- LEDs are step by step illuminated.
- If you press a button the according LED is on.
and the according binary code is shown in the
display
03 03 03 Water channel mainwash
Water intake up to savety level fS
Time max. 10 min
Valve mainwash
04 04 04 Water channel prewash
Water intake up to savety level fS
Time max. 10 min
Valve prewash
05 05 05 Water channel softener
Water intake up to savety level fS
Time max. 10 min
Valve mainwash and prewash
06 06 06 Water channel spots
Water intake up to savety level fS
Time max. 10 min
Valve spots or hotwater
07 07 07 Heating and circulation pump
Heating up to 90°C
Time max. 10 min
Water intake over mainwash chamber
08 08 08 Tub leakage test
Water intake over mainwash chamber up to
150 mm
Motor rotation 250 1/min
09 09 09 Draining and spinning
Draining
Spinning up to maximium spin speed,
if level < fSch
23 20 11 Shows the fault code
(Display + program duration LEDs)
24 21 12 Activates the configuration program
