AEG Electrolux EMW2000 - B) Base; C) Control Panel

- 10 -
HV844-N 12.01 R.B. 599 51 30 44 EN

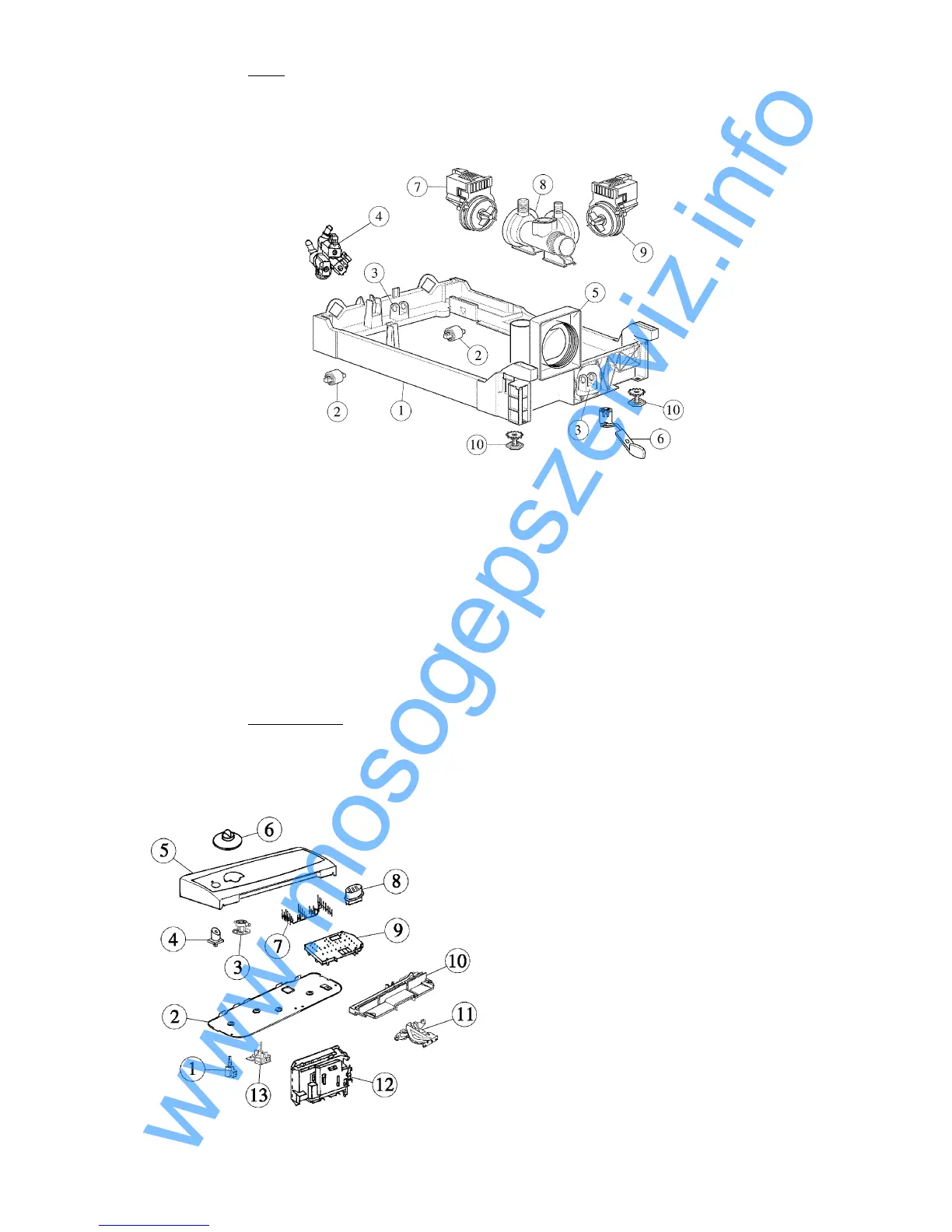

b) Base
1 - base
2 - rear roller
3 - fixation for shock absorber
4 - cold water inlet valve (2- or 3-fold,
following model
5 - filter body included in the base
6 - front roller kit
7 - drain pump
8 - connection drain/circulation pump
(following model)
9 - circulation pump (following model)
10 - adjustable feet
c) Control panel
1 - on-off switch
2 - functional support
3 - knob hub
4 - key cap
5 - panel
6 - knob
7 - LED light guide
8 - Display light guide
9 - input/output electronic
10 - cover for water distributor
11 - water distributor
12 - electronic
13 - program selector
