E) HYDRAULIC CIRCUIT

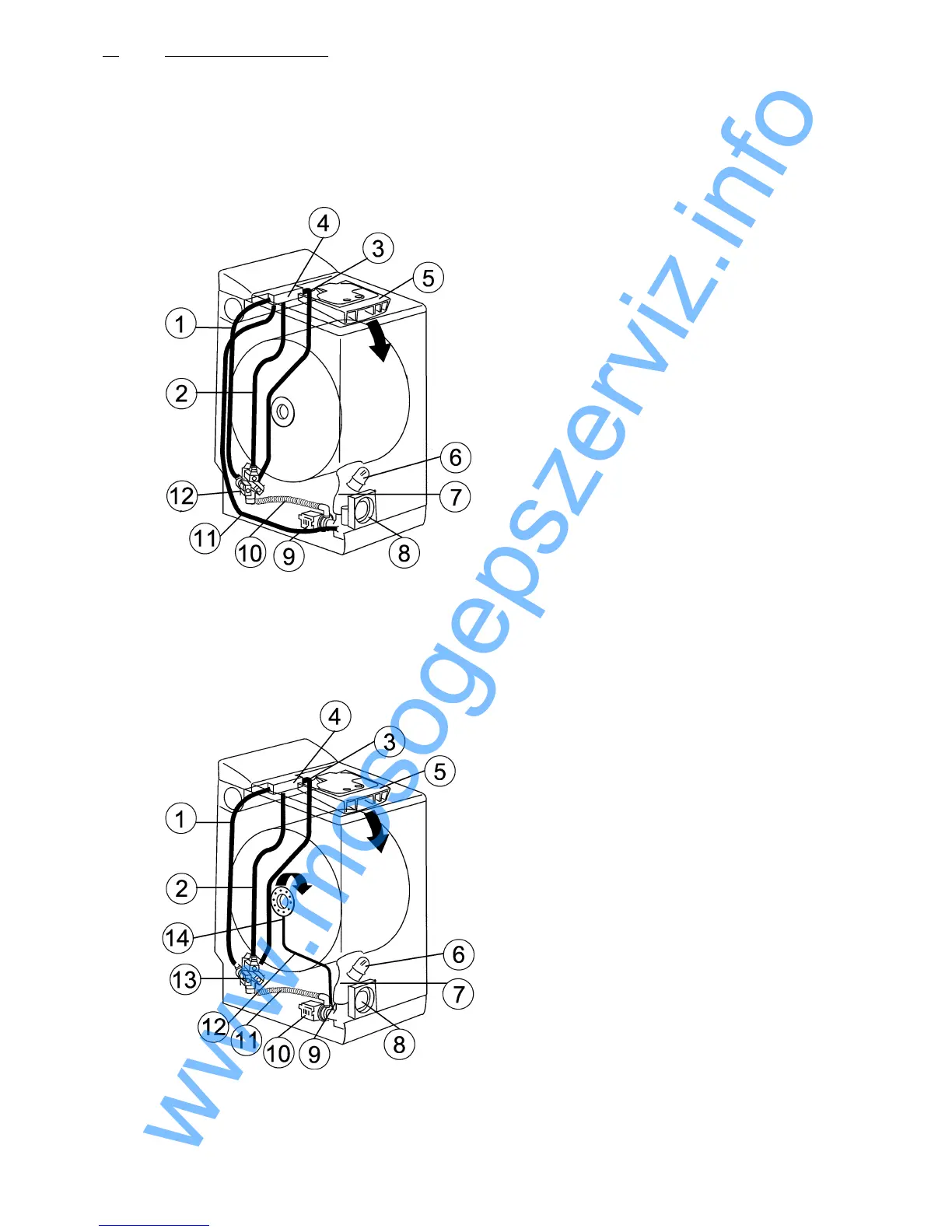

1) “STANDARD” washing system
1 - cold water
2 - cold water
3 - cold water
4 - distributor
5 - product box
6 - compression chamber
7 - rubber-bellow
8 - filter body
9 - drain pump
10 - drain hose
11 - ventilation of fluff filter housing
12 - inlet valve
2) “DIRECT SPRAY” washing system
1 - cold water
2 - cold water
3 - cold water
4 - distributor
5 - product box
6 - compression chamber
7 - rubber-bellow
8 - filter body
9 - circulation pump
10 - drain pump
11 - drain hose
12 - direct spray hose
13 - inlet valve
14 - control opening for direct spray
