14) Bearings
a) Disassembling/Assembling
Left bearing
1 - Remove the left side panel.
2 - Remove the drum screw.

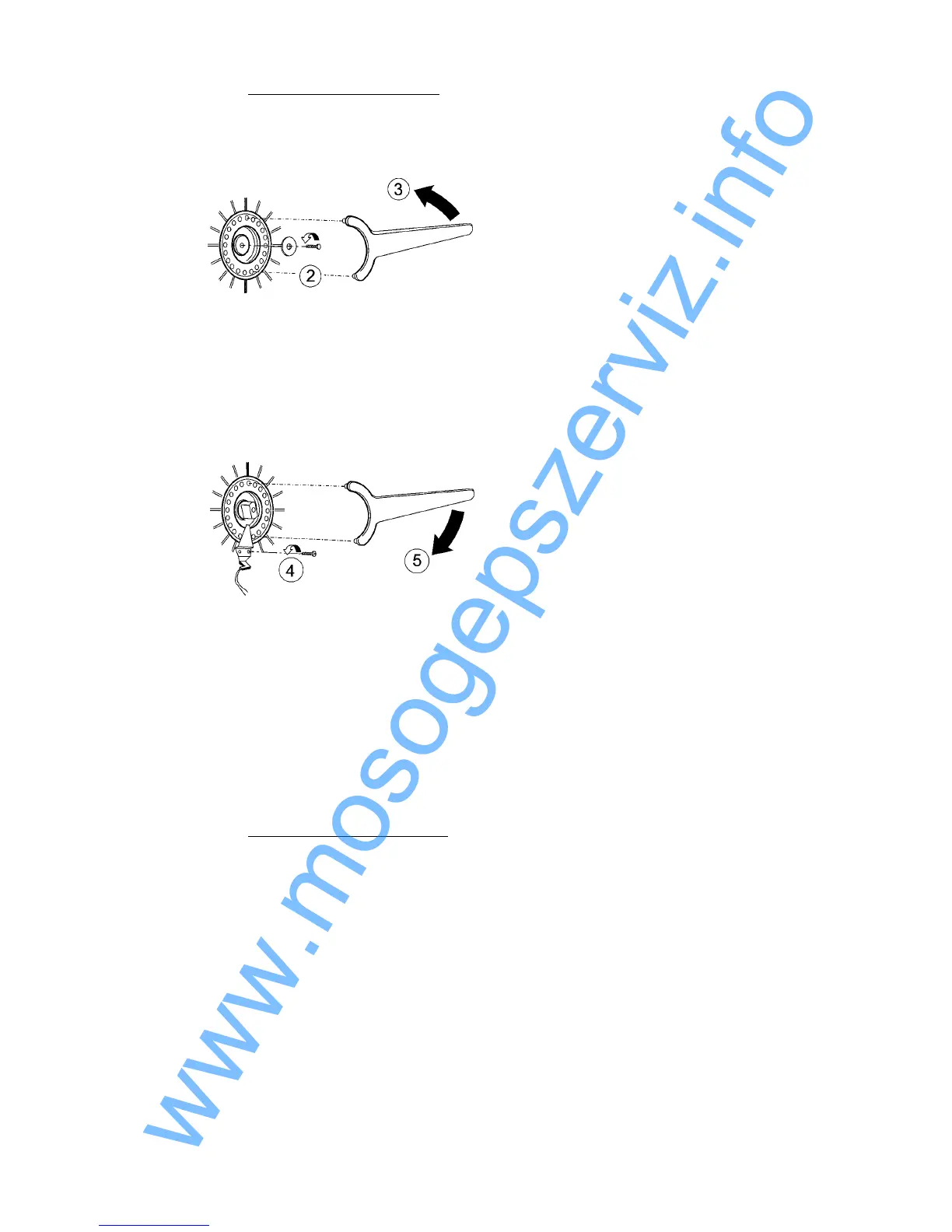

3 - Loosen the bearing (open sense)
with a spanner as shown in the
figure, ET-no. 899 2980018-48/5
During assembling take care to the correct position of the round gasket. Clean the
drum shaft, grease the shaft-sealing ring, screw the bearing to the tub (closed
sense). Screw in the drum screw with pulley.
Right bearing
1 - Remove the right side panel.
2 - Remove the drum screw with pulley.
3 - Remove the pulley.
4 - Remove the earth connection of the
drum.
5 - Loosen the bearing (open sense)
with a spanner
ET-no. 8992980018-48/5.
During assembling take care to the correct position of the round gasket. Clean the
drum shaft, grease the shaft-sealing ring, screw the bearing to the tub (closed
sense). Slip on and screw the pulley.
Note: These bearings are auto-fastening, therefore do not fasten them too strong.
15) Left and right weight
a) Disassembling / Assembling
The whole tub can be equipped with 3 kinds of weights:
- weight of concrete
- weight with a “polypropylene” housing
- weight of iron
Right weight
1 - Remove the right side panel.
2 - Remove the foam damper.
3 - Untighten and remove the 4 screws for the fixation of the weight, which
have a different length depending on the kind of weight.
