HV844-N 12.01 R.B. 599 51 31 28 EN

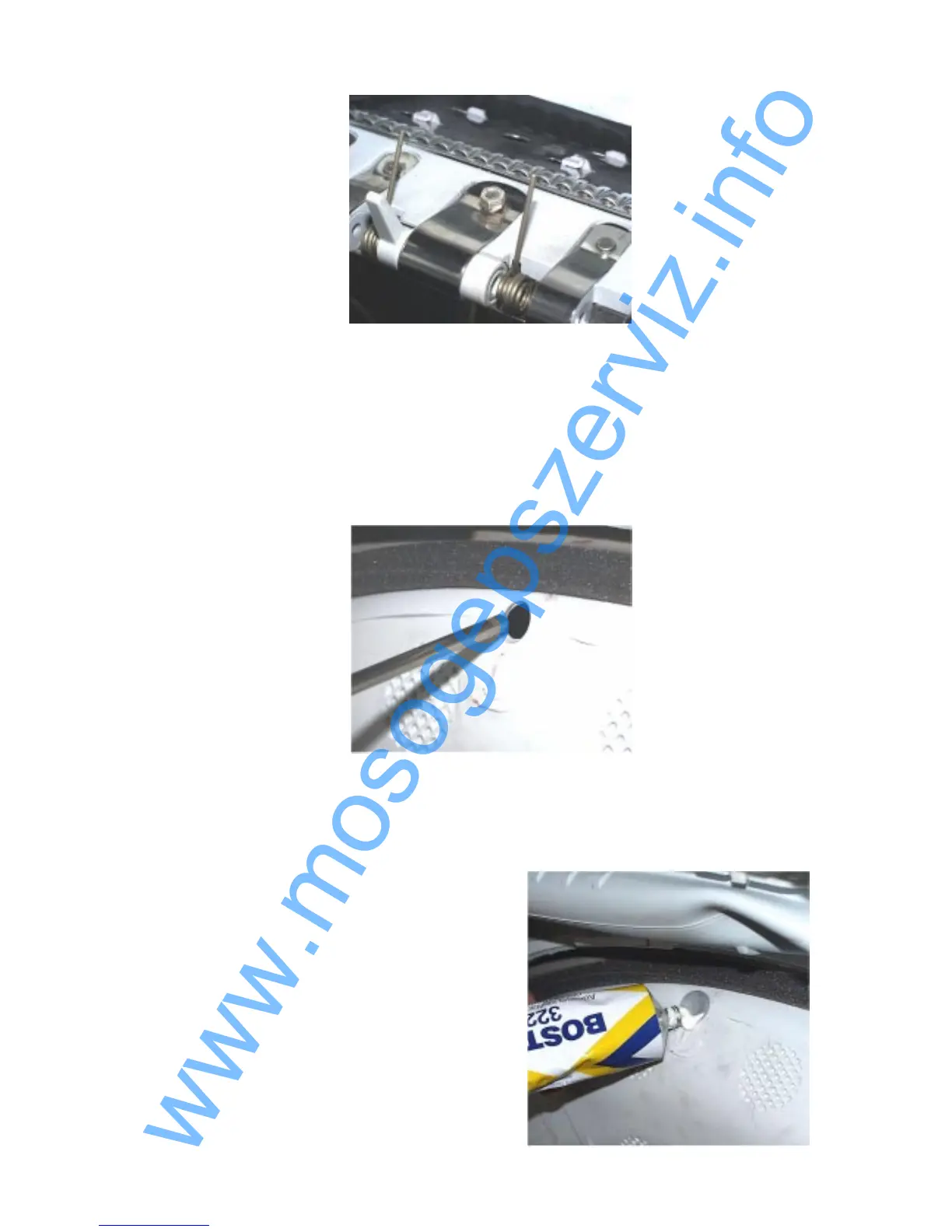

d) Bend back the shackle and fix it using a screw and nut (see figure 11).
e) Repeat operations a) to d) for the second drum lid.
Mounting a new drum lid
a) Fit in the new drum lid
b) Insert the axle of the drum lid with the marked end first and punch it in with a hammer and
the punch (see figure 12). Centre the axle of the drum lid.
c) Repeat operations a) and b) to the second drum lid.
d) Close both holes with the enclosed caps.
e) Safe the cap with silicone (see figure 13)
f) Fix the weights with silicone on the tub
and mount the screws.
Protect the screws with silicone.
g) Stick on the foam parts
h) Assemble the side walls
i) Execute the functional test
