A few examples of extended functions are set out on the following
pages.
3.10.1 Extended operating modes / circuit types
With the aid of THYRO-TOOL FAMILY, it is possible to set the
operating mode and circuit type independently of one another.
Combinations are thus possible which cannot be set with DIP switch
S1.1 and S1.2.
Operating modes TAKT, VAR
Load circuits Star with neutral conductor, delta or star without
neutral conductor, open delta

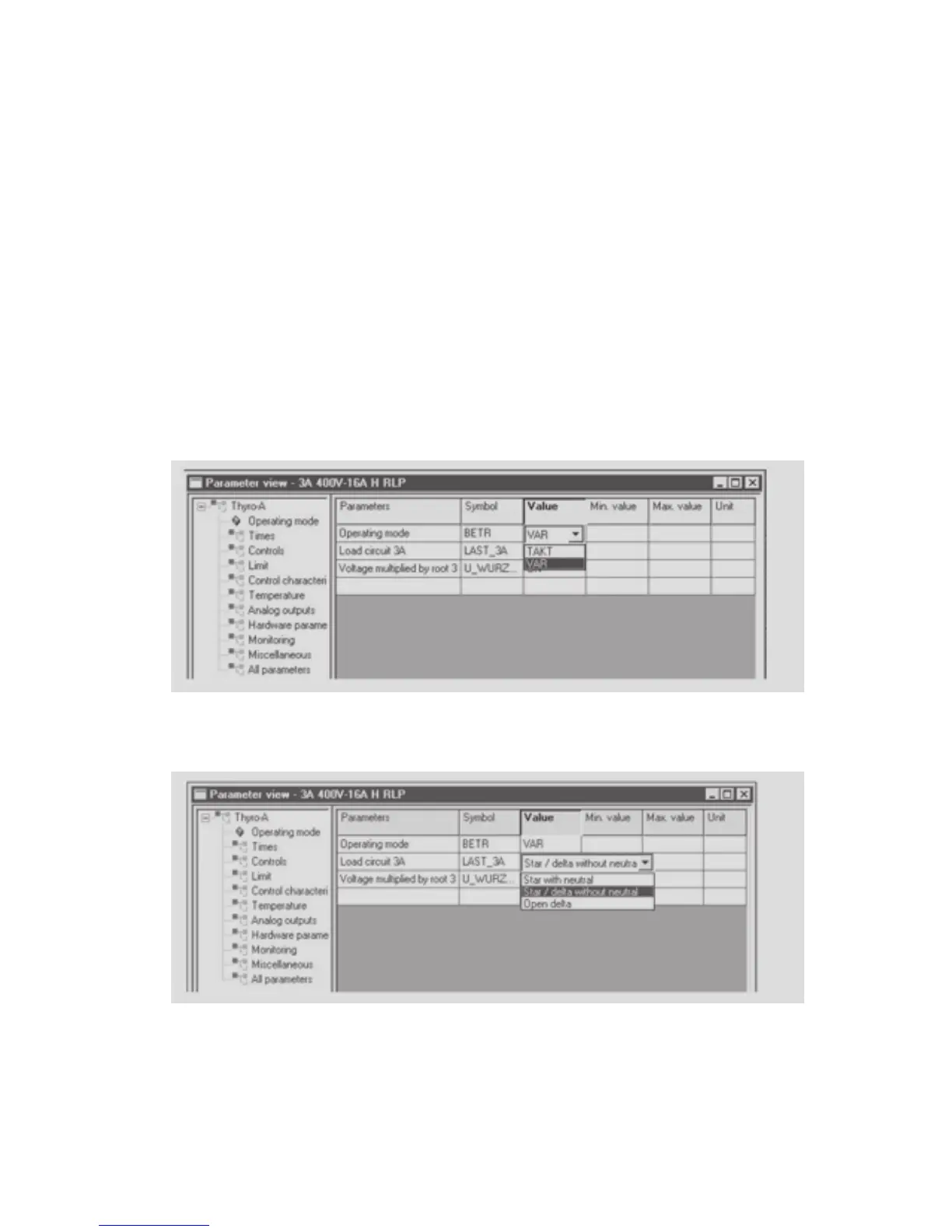

Possible settings in THYRO-TOOL FAMILY (operating mode)
Possible settings in THYRO-TOOL FAMILY (circuit type)
