AEG THYRO-A - Tab. 10 Other Possibilities of Load Monitoring

57
EN
Thyro 3A

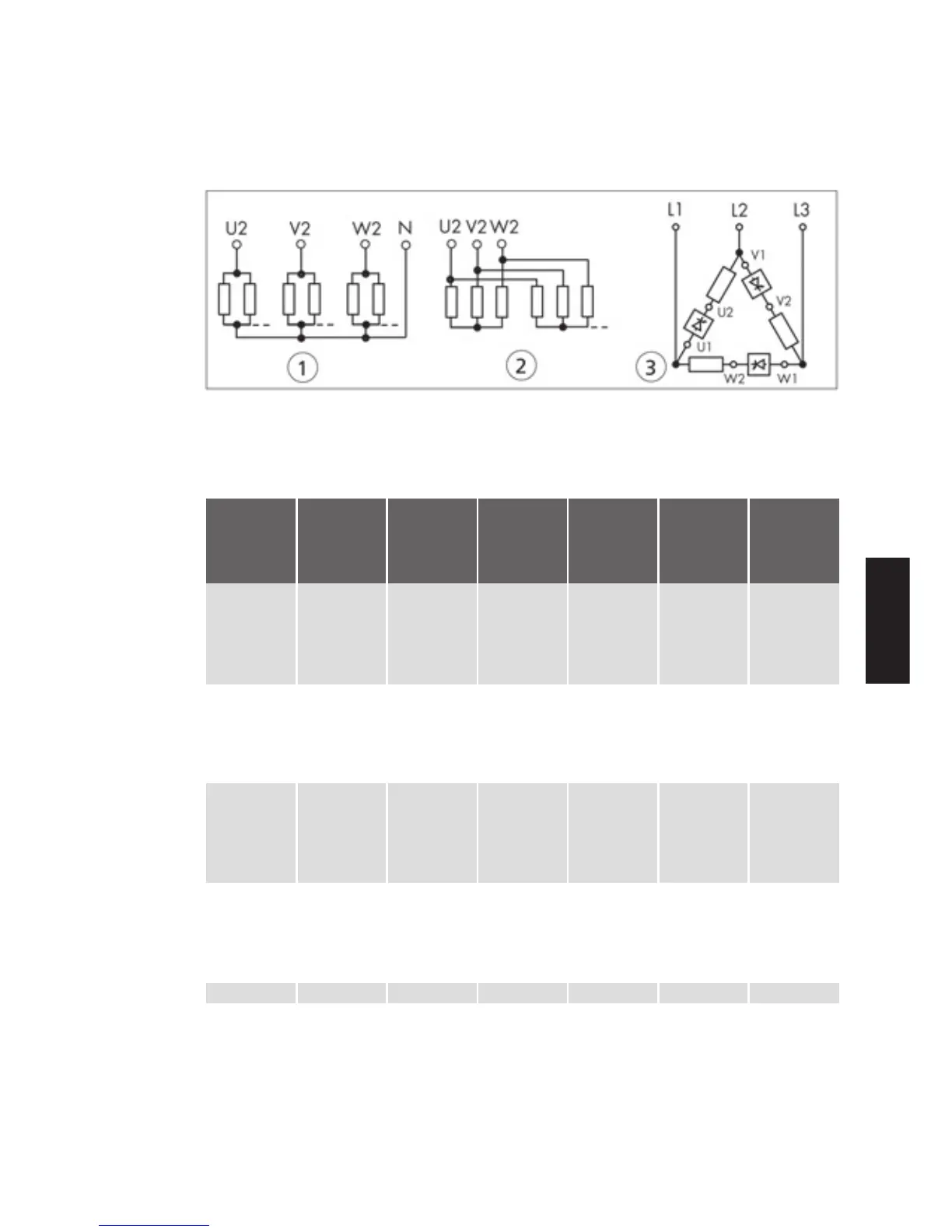

Load with common star point with neutral conductor (1)
Load with separate star point without neutral conductor (2)
Load in open delta connection (3)
No. of I
load nom
/ Current in Recommen- Setting aid Setting aid No. of
parallel I
type controller
case of ded setting at actual at actual potentiometer
load in % fault in % for Poti value output value output turns from
resitors R205 in % X2.9 in mA X2.9 in Volt left stop
1 100 0 50 5 2.5 7.8
80 40 4 2 6.7
60 30 3 1.5 5.4
40 20 2 1 4.2
20 10 1 0.5 3.0
2 100 50 75 7.5 3.75 10.9
80 60 6 3 9.0
60 45 4.5 2.25 7.2
40 30 3 1.5 5.4
20 15 1.5 0.75 3.6
3 100 66 83 8.3 4.15 11.8
80 66,4 6.64 3.32 9.8
60 49,8 4.98 2.49 7.8
40 33,2 3.32 1.66 5.9
20 16,6 1.66 0.83 3.8
4 100 75 87,5 8.75 4.375 12.3
80 70 7 3.5 10.3
60 52,5 5.25 2.625 8.1
40 35 3.5 1.75 6.0
20 17,5 1.75 0.875 3.9
5 100 80 90 9 4.5 12.7
Tab. 10 Other possibilities of load monitoring
