55
EN
Thyro-3A

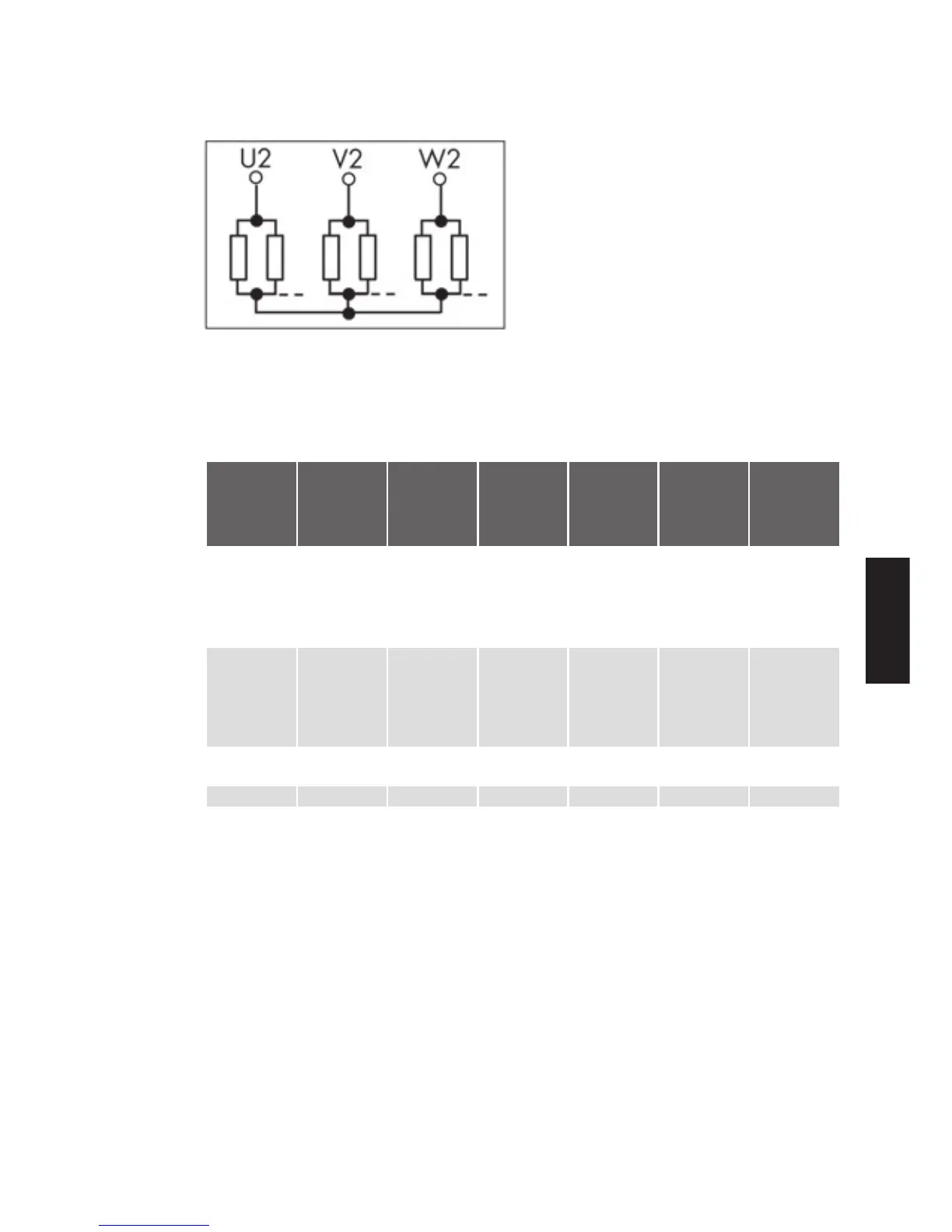

Load with common star point and without neutral conductor
No. of I
load nom
/ Current in Recommen- Setting aid Setting aid No. of
parallel I
type controller
the case of ded setting at actual at actual
potentiometer
load in % fault in % for Poti value output value output turns from
resitors R205 in % X2.9 in mA X2.9 in Volt left stop
1 100 0 50 5 2.5 7.8
80 40 4 2 6.6
60 30 3 1.5 5.4
40 20 2 1 4.2
20 10 1 0.5 2.9
2 100 60 80 8 4 11.4
80 64 6.4 3.2 9.5
60 48 4.8 2.4 7.5
40 32 3.2 1.6 5.7
20 16 1.6 0.8 3.7
3 100 75 87.5 8.75 4.375 12.3
80 70 7 3.5 10.3
4 100 82 91 9.1 4.55 12.8
Tab. 8 Load with common star point and without neutral
conductor
