5.8 Using the analog output
(only for ...H RL1 and ...H RLP1)
• Switch off mains supply and secure against accidentally being swit-
ched back on.
• Connect terminals X2.9 (+) and X2.5 (ground) to a display device.
Ensure the correct polarity!
• Configure the signal level (see page 41, Analog output).
• Adapt the signal level to the scale (see page 43, Analog output
( Adapting scale)).

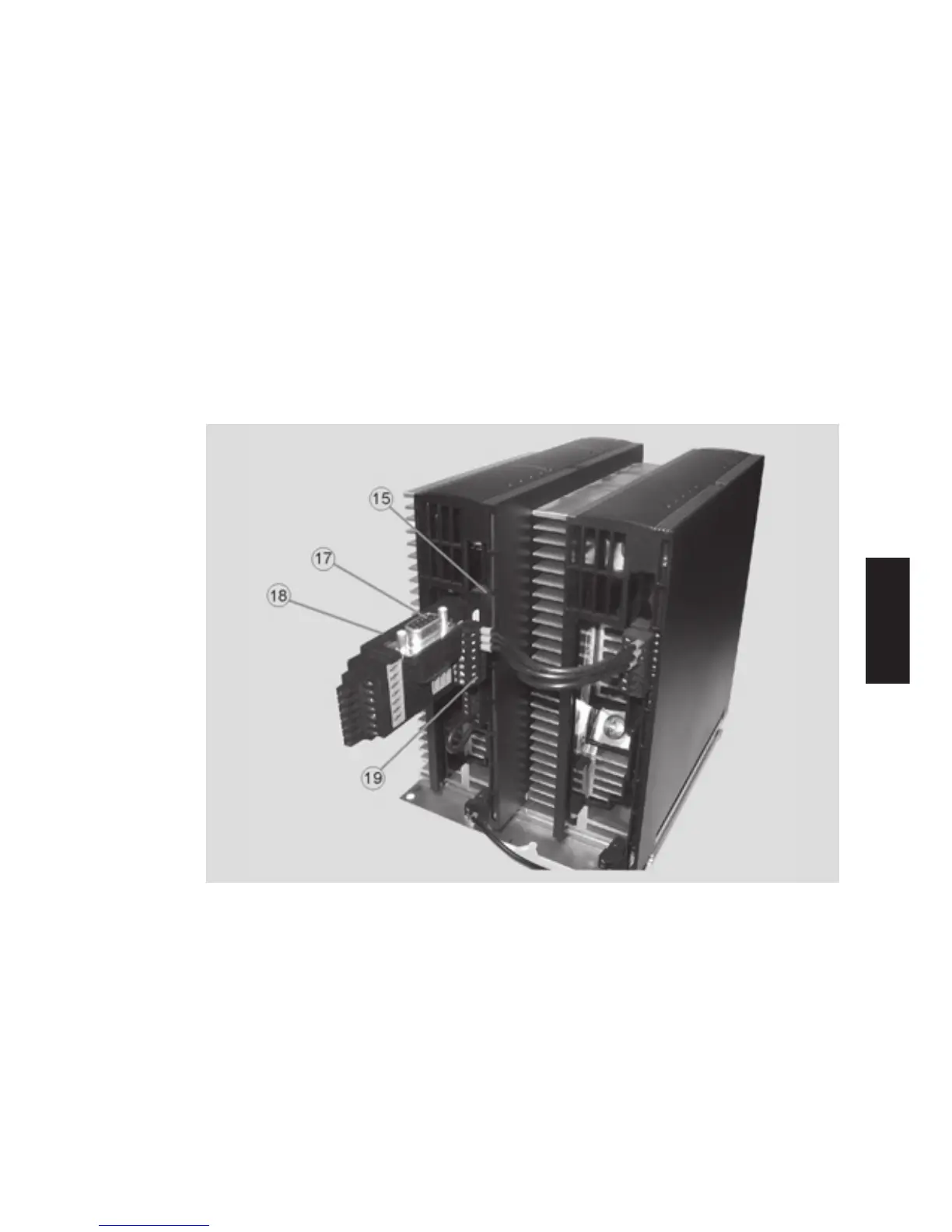

5.9 Using the THYRO-TOOL FAMILY
15 Terminal X22
17 Serial interface (COM) RS232
18 PC-Interface RS232
19 Connector (Connection to Slave only necessary for Thyro-2A
and Thyro-3A)
