44

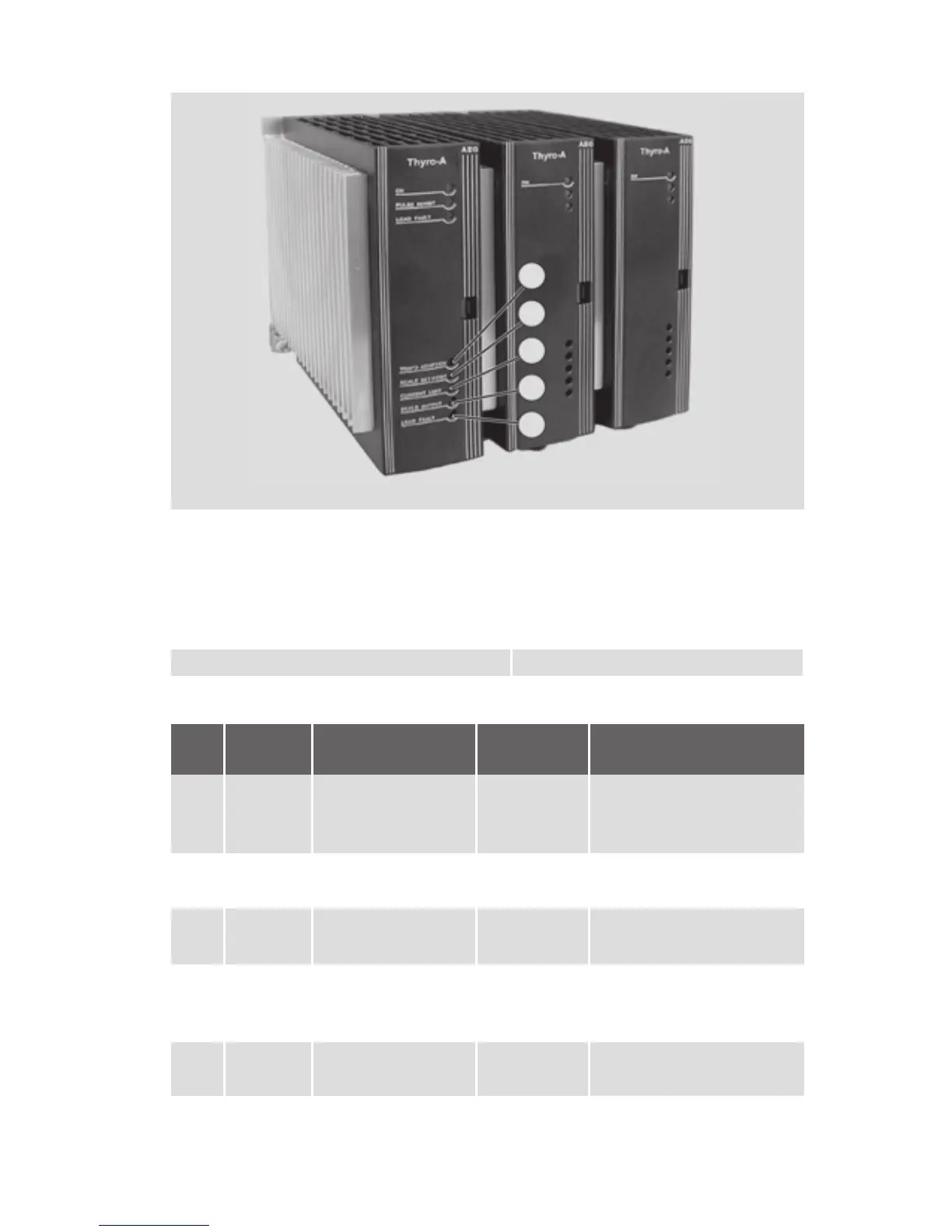

4.3 Potentiometer
There are five potentiometers below the LEDs with approx. 18 turns
for the setting range.
Function
• Turn potentiometer to the right. > Value is increased.
• Turn potentiometer to the left. > Value is decreased.
26
27
28
29
30
Pos.- Potentio- Designation Function Default setting
Nr. meter
26 R201 TRAFO ADAPTION
Phase angle 1st
Thyro-A 1A 60°el.
half wave for
Thyro-A 2A 90°el.
transformer load
Thyro-A 3A 90°el.
27 R202* SCALE SETPOINT Control end U-Regelung: U
type
+ 10%
P-Regelung: P
type
+ 10%
28 R203* CURRENT LIMIT Current I
type
limit
29 R204* SCALE OUTPUT Amplification
U
type
, I
type
, U
type
, P depend-
ing on output variable of
analog output
30 R205* LOAD FAULT Load OFF (left stop pos.)
monitoring
* only with ...H RL1 and H RLP1
