AEG THYRO-A User Manual
5
of 2
of 2 ratings
108 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
38
9

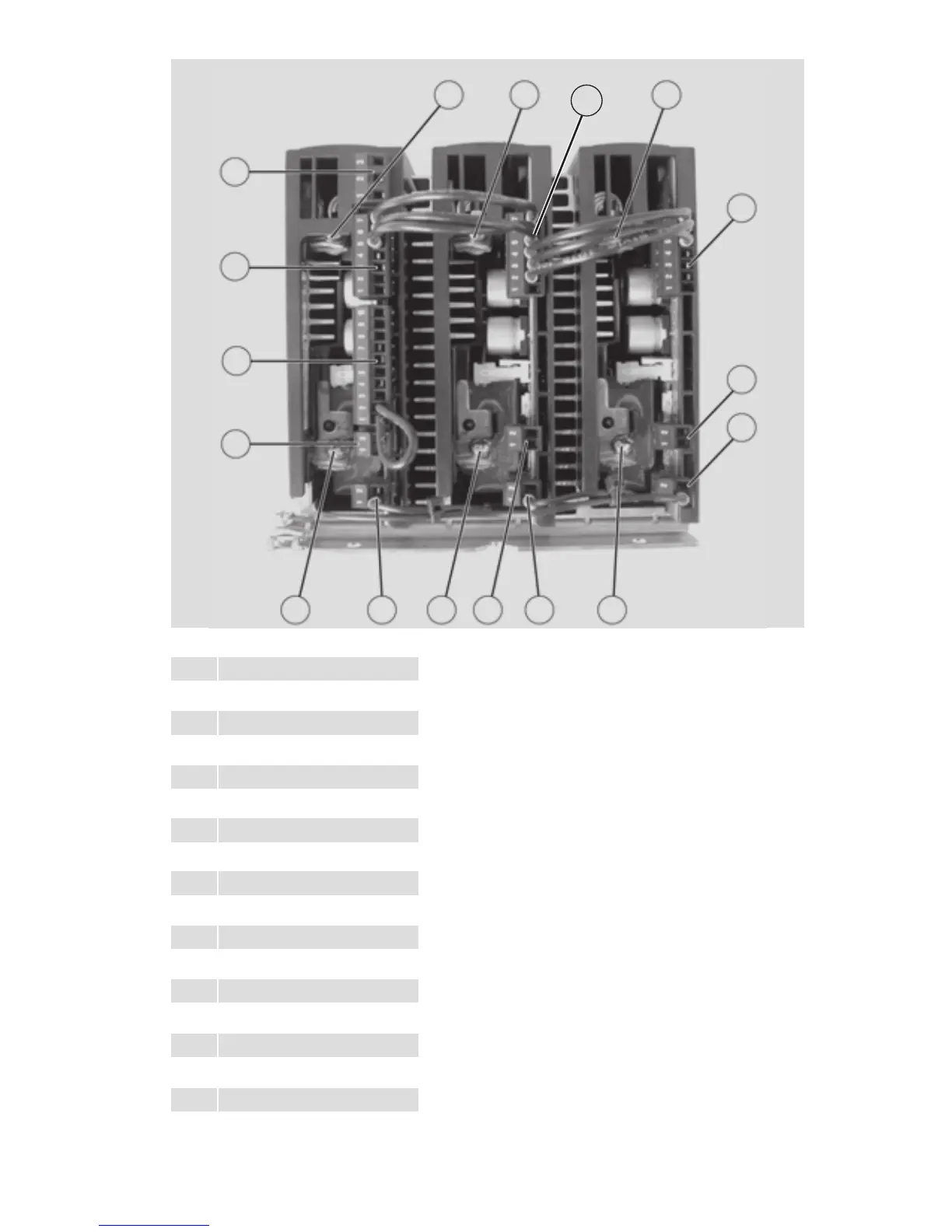

Connection terminal U1
10
Connection terminal V1
11
Connection terminal W1
12
Connection terminal U2
13
Connection terminal V2
14
Connection terminal W2
15
Terminal X2
16
Terminal X3
17
Terminal X1 Master
18
Terminal X11 Master
19
Terminal X22 Master
20
Terminal X1 Slave1
21
Terminal X11 Slave1
22
Terminal X22 Slave1
23
Terminal X1 Slave2
24
Terminal X11 Slave2
25
Terminal X22 Slave2
10
11
9
16
19
15
18
12
17
13
21
20
14
25
24
23
22
37
39
Table of Contents
Default Chapter
2
Table of Contents
2
1 General
7
Type Designations/Validity
7
Abbreviations
10
Special Features
10
Warranty
11
2 Safety
12
Identification in the Operating Instructions
12
General Danger Information
13
Operator Requirements
13
Personnel Requirements
14
Intended Use
14
Use of the Device
15
Operation
15
Prior to Installation/Commissioning
15
Maintenance, Service, Faults
16
Transport
17
3 Functions
18
Operating Modes
18
Full Wave Switch Principle TAKT
18
Phase Angle Principle VAR
19
Half Wave Switch Principle QTM
19
Setpoint Processing
19
Fig. 1 Setpoint Inputs and Effective Setpoint
19
Control Modes
20
Limits
23
Pulse Inhibition
23
Current and Voltage Transformer
23
(Only for
24
Display Via Analog Output (Only for
24
Error and Status Messages
24
Default Settings
26
LED Messages
29
Led Messages
30
Fault Signalling Relay K1
31
Only for
32
Monitoring
32
Monitoring the Mains Voltage
32
Load Monitoring (Only for
33
Device Temperature Monitoring
33
Fan Monitoring (for
33
Extended Functions (with Bus Module / THYRO-TOOL FAMILY)
33
Extended Operating Modes / Circuit Types
34
Averaging for the Analog Output
35
Control Limits
35
Controller Parameters
35
Mains Load Optimization
35
4 Settings and Operation
36
Device Overview
37
DIP Switches S1
39
Operating Mode and Load Types
41
Control Mode / Analog Output
41
Live Zero and Setpoint Input Range
43
Analog Output (Only for
43
Potentiometer
44
Setting the Transformer Load (AN1, SST, T )
45
Setting Ohmic Load
46
Setting Maximum Load Value with Control End U, U
47
Setting Maximum Load Current (Only for
48
Tab. 4 Maximum Load Value at Control End
48
Setting Example for Maximum Load Value at Control End / Maximum Load Current
49
Adapting Analog Output (Scale) (Only for
50
Setting Load Monitoring (Undercurrent Monitoring)
51
(Only for
51
Conductor
55
Tab. 9 Load in Delta Connection
56
Tab. 10 Other Possibilities of Load Monitoring
57
5 Installation
58
Connecting Terminals (Overview)
60
Fig. 2 Operating Elements
61
Connecting Power Supply
62
Connecting Additional Electronics Supply (Only for
62
Only for ...H Rl1 and ...H Rlp
62
Connecting Pulse Inhibition
63
Connecting Analog Setpoint Input
63
Connecting Control Input for Switch Operation
63
Connecting the Bus Module
64
Using the Analog Output (Only for
65
Using the THYRO-TOOL FAMILY
65
Fig. 3 User Surface THYRO-TOOL FAMILY
67
6 Mains Load Optimization
68
Internal Mains Load Optimization
68
Synchronization with Thyro-Power Manager
68
Software Synchronization (Operating Mode TAKT)
69
7 Connecting Diagrams
71
Fig. 4 Connection Diagram Thyro-A 1A...H1
71
Fig. 5 Connection Diagram Thyro-A 2A...H1
72
Fig. 6 Connection Diagram Thyro-A 1A ...H RL1, ... H RLP1
73
Fig. 7 Connection Diagram Thyro-A 2A ...H RL1, ... H RLP1
74
Fig. 8 Connection Diagram Thyro-A 3A...H1
75
Fig. 9 Connection Diagram Thyro-A 3A ...H RL1, ... H RLP1
76
Fig. 10 Load Connection Types
77
Fig. 11 Additional Electronics Supply and Connection with Optional Bus Module
77
Fig. 12 Connection Diagram Mains Load Optimization with Thyro-Power Manager
78
Fig. 13 Connection Diagram Mains Load Optimization for Operating Mode TAKT
78
8 Help in the Event of Problems
79
9 Technical Data
82
10 Dimension Drawings
89
11 Accessories and Options
104
12 Approvals and Conformity
