AEG THYRO-A User Manual

53
EN
Thyro-A 2A

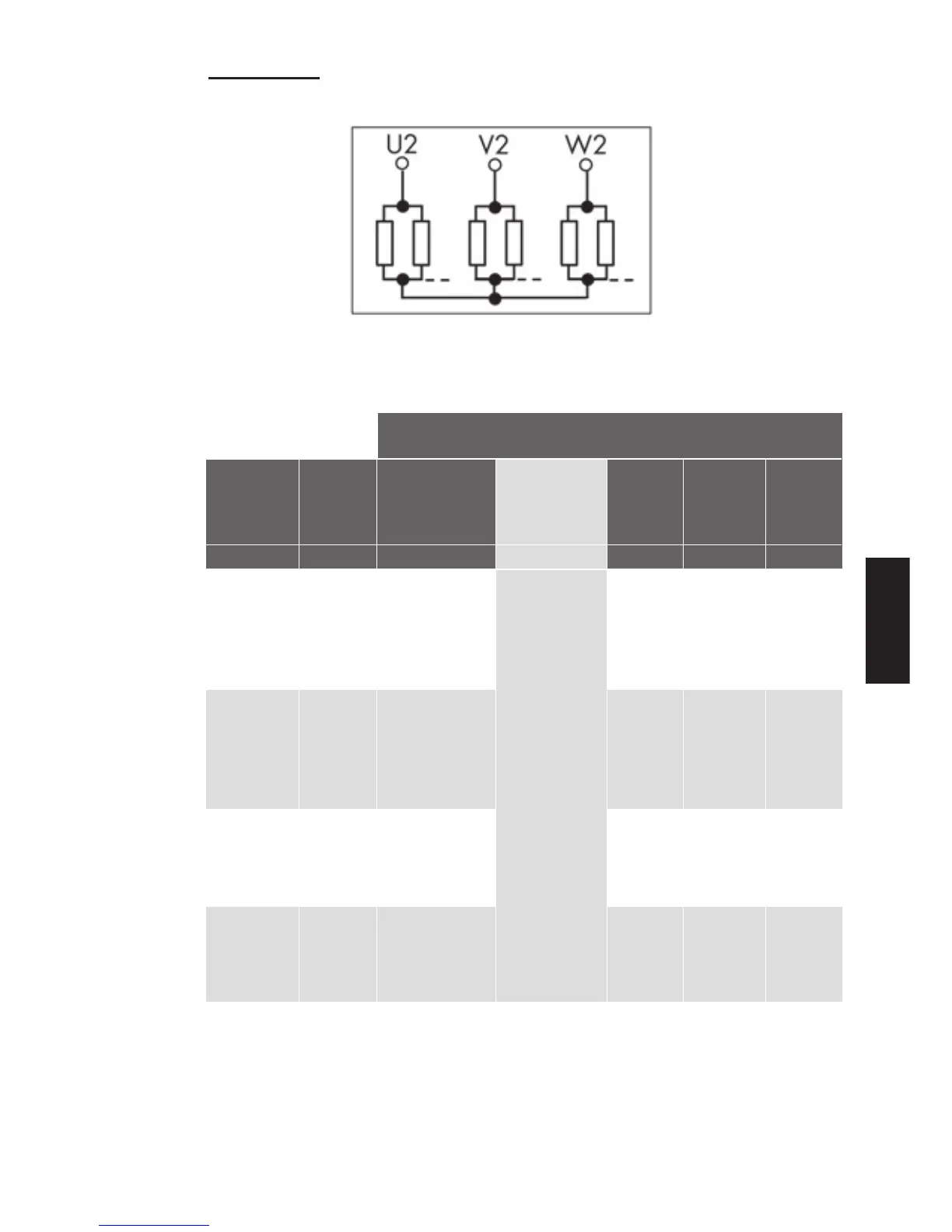

Load with common star point and without neutral conductor
Thyro-A 2A
load with common neutral point without N
e.g.
parallel load
resistances
Number
I
load nom.
/
I
type contr.
Resistance
increase
in case of
fault
Recommended
setting
for Poti
R205
X2.9 [V]
[0-10V]
X2.9
[0-20mA]
ca.
Revo-
lutions
1 100% 50,0% 2.50 5.00 8.5
1 80% 40,0% 2.00 4.00 7.0
1 60% Infinite 30,0% 1.50 3.00 6.0
1 40% 20,0% 1.00 2.00 4.5
1 20% 10,0% 0.50 1.00 2.5
2 100% 80,0% 4.00 8.00 12.0
2 80% 63,0% 3.15 6.30 10.0
2 60% 67% 48,0% 2.40 4.80 8.0
2 40% 32,0% 1.60 3.20 5.5
2 20% 16,0% 0.80 1.60 3.5
3 100% 87,0% 4.35 8.70 13.5
3 80% 70,0% 3.50 7.00 11.5
3 60%
33%
52,0% 2.60 5.20 8.5
3 40% 35,0% 1.75 3.50 6.0
4 100% 90,0% 4.50 9.00 14.0
4 80% 72,0% 3.60 7.20 11.5
4 60%
22%
(54%) 2.70 5.40 9.0
4 40% -
Tab. 7b Load with common star point and without neutral
