AEQ BC 2000 User Manual

BC 2000 DIGITAL
Audio Routing, Mixing and Processing System for Program Production Centers
HARDWARE MANUAL
88

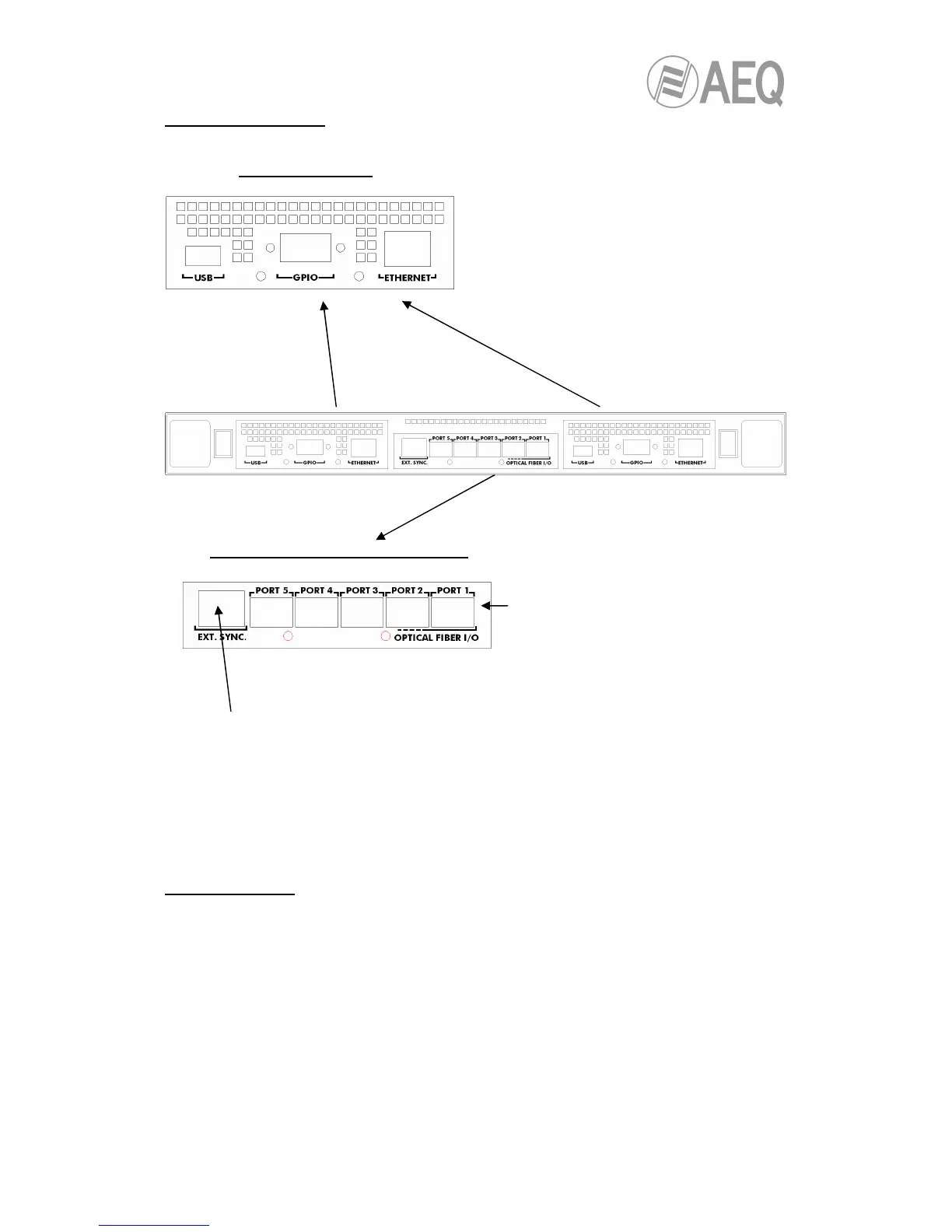

Rear Panel Description.
Controller modules
Audio communications ports module
Firmware modules.
At the firmware level, this board is made up of the following modules:
- PIC microcontroller: manages board communications and start-up.
- FPGA programmable device: manages the alarms and the audio channels of the 5
high speed links (including its routing).
The firmware versions can be brought up to date by using the ”BC2000D Firmware Upgrade”
software application.
Standard USB connector:
host port, A
type connector.
'GPIO' DB9 type connector: 4 general
purpose inputs and 3 general purpose
outputs with a common ground.
'ETHERNET' connector: allows to connect
the controller module through a switch (or
directly, by means of a crossed network
cable) to the computer (with the setup and
real time control software).
'EXT. SY
NC.' RJ45 type connector:
extern
al synchronism interface able to
accept and generate synchronizing
signals in AES11 formats. The AES11
synchronism output is follower of the
input.
LC 'PORT 1' to 'PORT 5' connectors:
SFP (Small Form Pluggable) optical f
iber
transceiver, removable and
interchangeable without tools, with a
range of 150 meters (for
62.5/125 µm
MULTIMODE
fiber) or 300 meters (for
50/125µm MULTIMODE fiber)
. For
MONOMODE fiber and its corresponding
SFP transceivers much higher distances
can be reached (>10km).
