AM Series Boiler Heat Exchanger Maintenance & Replacement
Technical Instruction Document
Removing the Heat Exchanger - Continued
10. Completely loosen the water supply nut, as shown in Figure 3-6, using the 46mm wrench.
11. Completely loosen the water return nut on the outlet side of the flow meter, as shown in
Figure 3-6, using the 46mm wrench.

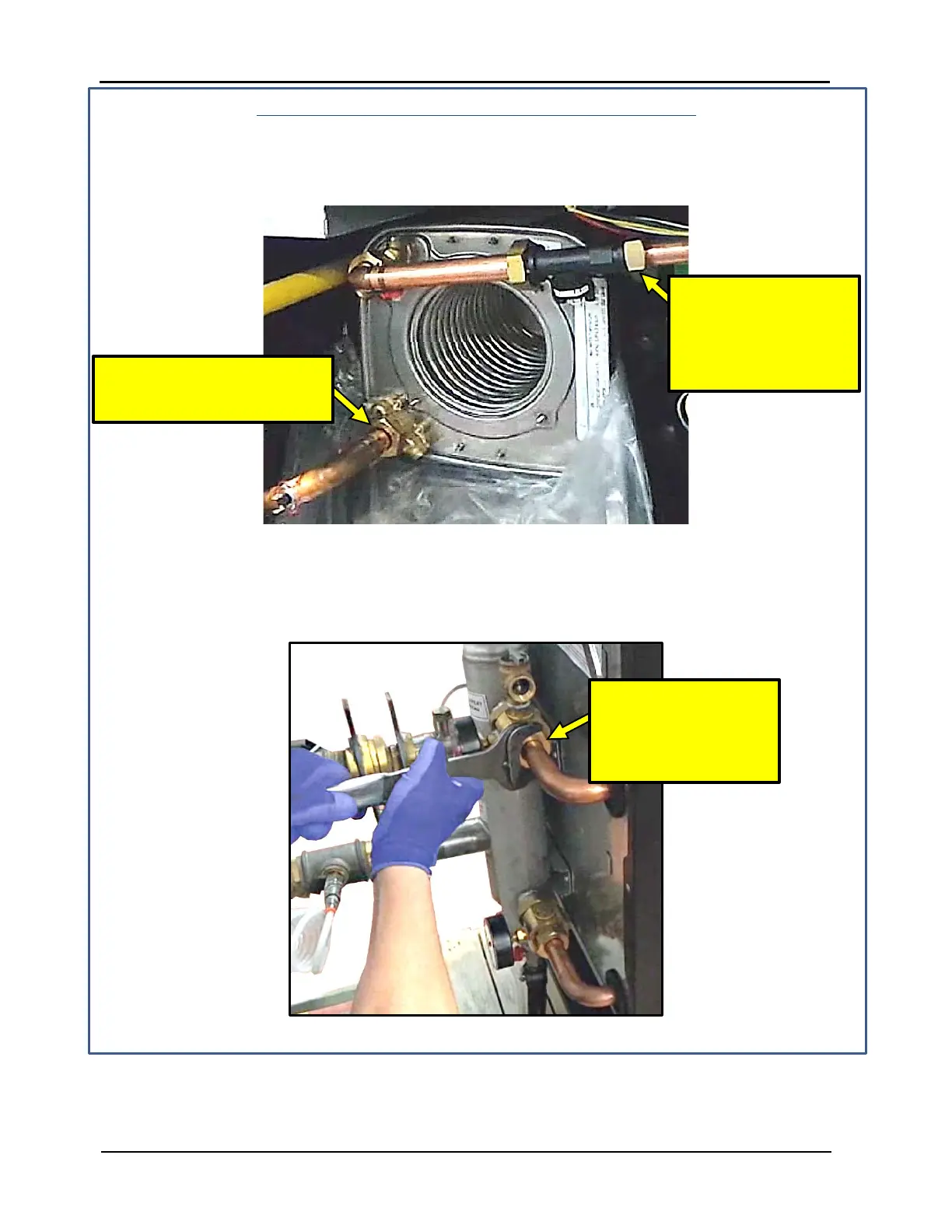

Figure 3-6: Loosening the Return and Supply Connection Nuts
12. At the rear of the unit, completely loosen the nut for the water supply of the heat exchanger
being replaced using the 46mm wrench, as shown in Figure 3-7.
Figure 3-7: Loosening the Water Supply Nut at Rear of Unit
STEP 10: LOOSEN THE WATER
SUPPLY NUT COMPLETELY
LOOSEN THE
WATER RETURN NUT
COMPLETELY WITH
46mm WRENCH AND
RETAIN THE O-RING
STEP 12: COMPLETELY
LOOSEN THE WATER
SUPPLY NUT AT THE
REAR OF THE UNIT
WITH 46mm WRENCH.
Page 15 of 36 AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 TID-0137_0A
02/02/2015 Ph.: 800-526-0288
