Disassembling the Boiler for Maintenance – Continued
4. Remove screws from around exhaust outlet opening and remove flue assembly from unit
(Figures 7-7 & 7-8).

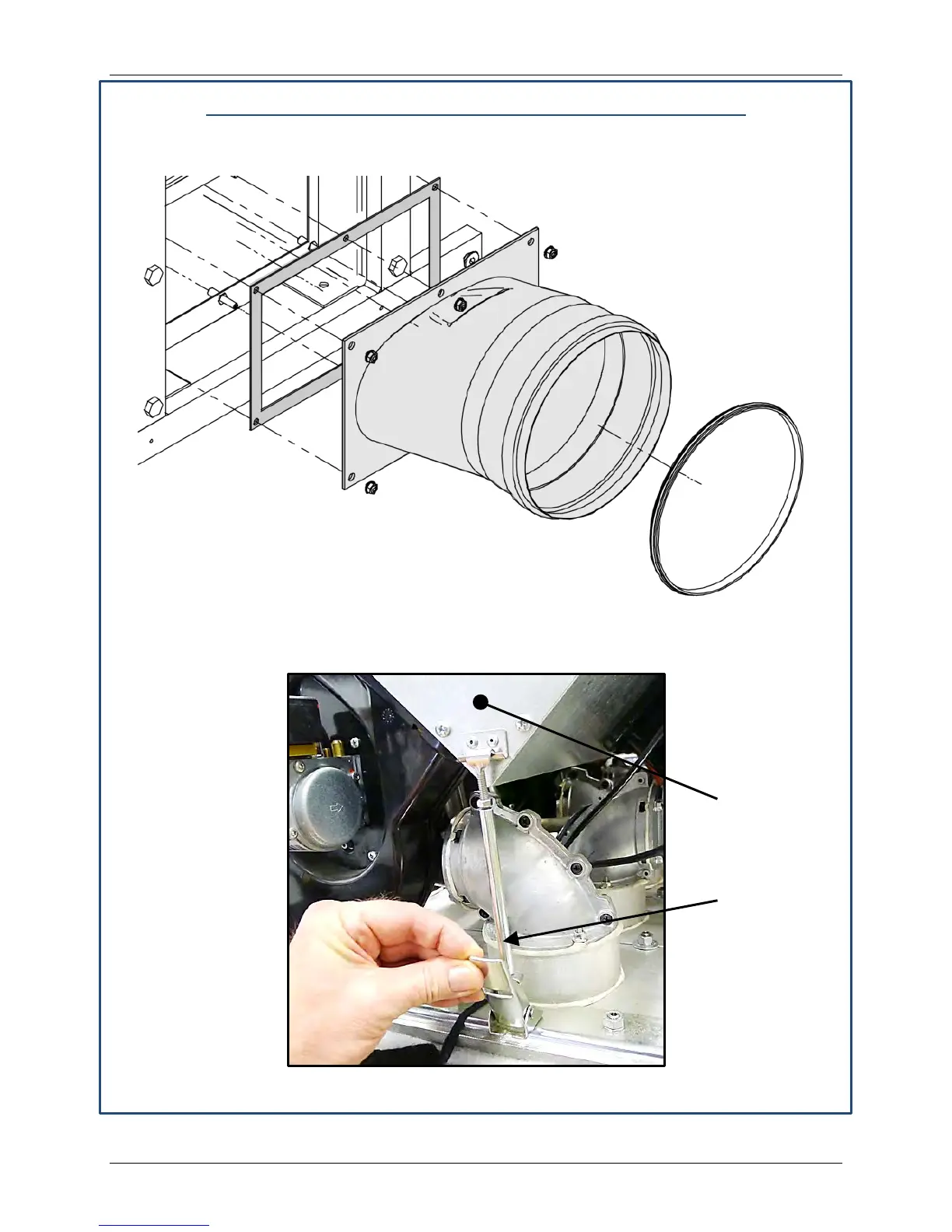

Figure 7-8: Flue Removal (Step 4)
5. On each side of the air intake manifold, unlatch spring clips holding it in place (Figure 7-9).
Figure 7-9: Unlatch Spring Clips from Left and Right Side of Manifold (Step 5)
Manifold
Retention
Spring Clip
(Left & Right)
Air Intake
Manifold
