MODULEX EXT 321, 481, 641, 802, 962, 1123 BOILERS
Installation, Operation & Maintenance Manual
OMM-0087_0F AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 99 of 146
GF-143 Phone: 800-526-0288 07/13/15
5.5 Service Menu
The SERVICE menu contains the TEST RELAY, SENSOR TEST, and OTHER PARAMETERS
sub-menus as shown below:
NOTE
The SERVICE menu is accessed as shown below. However,
SERVICE MODE ( ) is different and can only be accessed when
the E8 cover is closed.

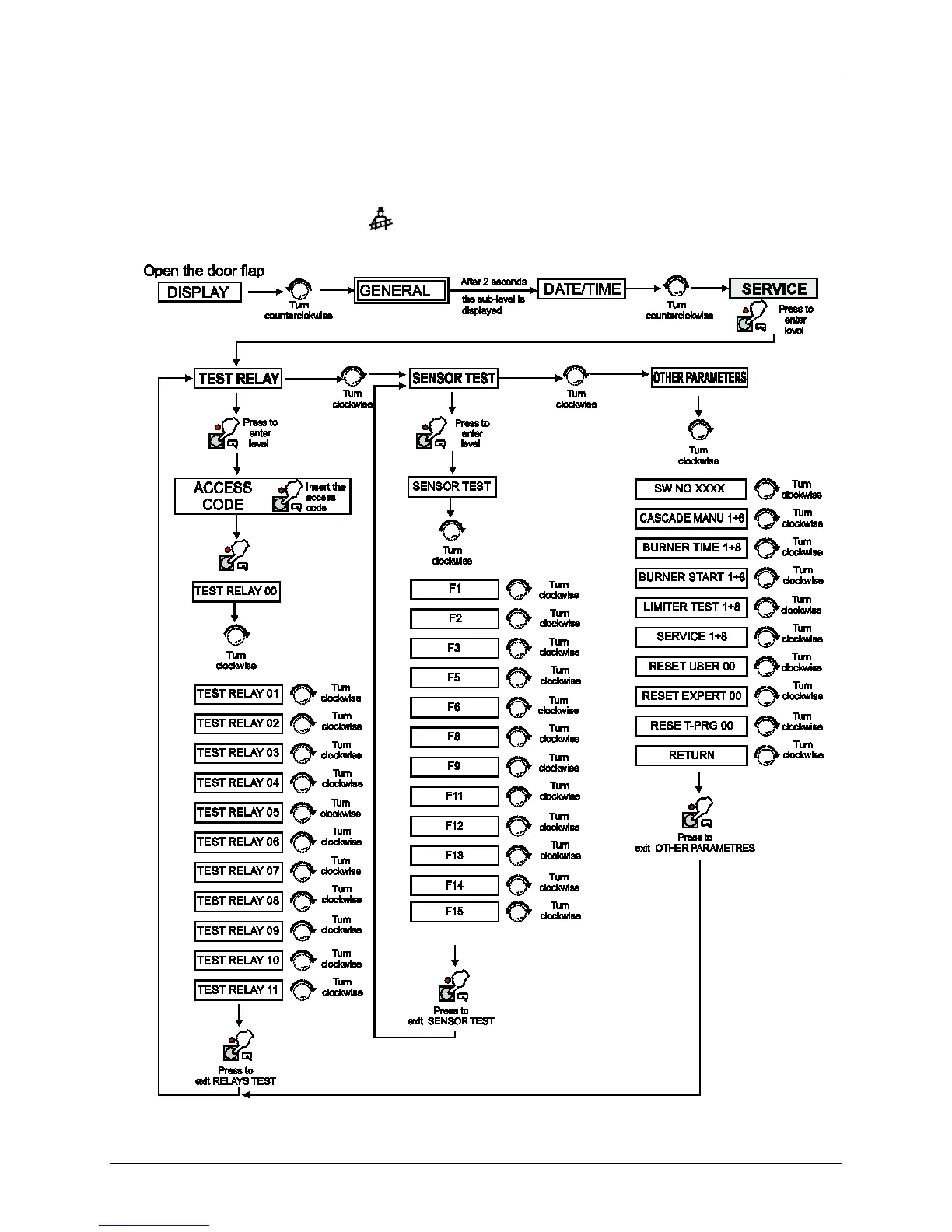

Figure 5-6: SERVICE Menu
To Next Page
