MODULEX EXT 321, 481, 641, 802, 962, 1123 BOILERS
Installation, Operation & Maintenance Manual
Page 68 of 146 AERCO International, Inc. 100 Oritani Dr. Blauvelt, NY 10913 OMM-0087_0F
07/13/15 Phone: 800-526-0288 GF-143
3.32 Testing The Ignition Safety Shut Off Device
Ignition Safety Shutoff Device Test
1. Power on by switching on the ON-OFF switch.
2. Create a request in C/H Central Heating using the E8 controller.
3. Turn burners ON.
4. Disconnect the igniter cable (WHITE) of BURNER 1 (See Figure 7-2).
NOTE
Ensure the cable end is not grounded to the enclosure frame, or to
any other grounded part.
5. The display will show ERROR CODE
E05
(Loss of Flame). See Figure 3-34.

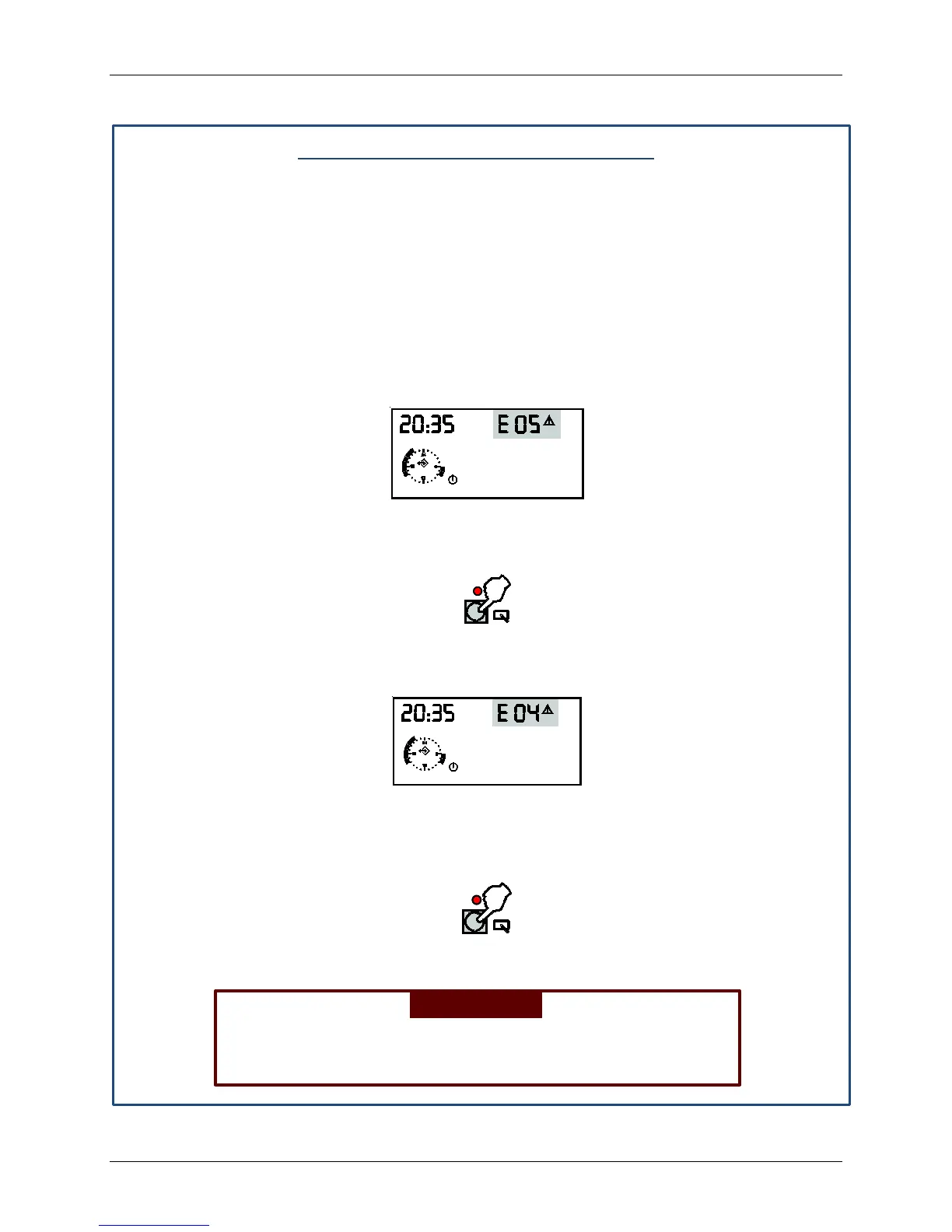

Figure 3-34: “Loss of Flame” Error Code (E 05)
6. Press Reset Button on E8 Controller.
7. The boiler will retry the ignition cycle and the display will show ERROR CODE E04 (No
Flame Detected During Ignition). See Figure 3-35.
Figure 3-35: “No Flame Detected During Ignition” Error Code (E 04)
8. Reconnect the ignition cable of BURNER 1.
9. Press Reset Button
10. Check that the boiler starts correctly.
WARNING!
Do not touch the inside of the ignition cable while it is disconnected
during start-up of the boiler.
