Disassembling the Boiler for Maintenance – Continued

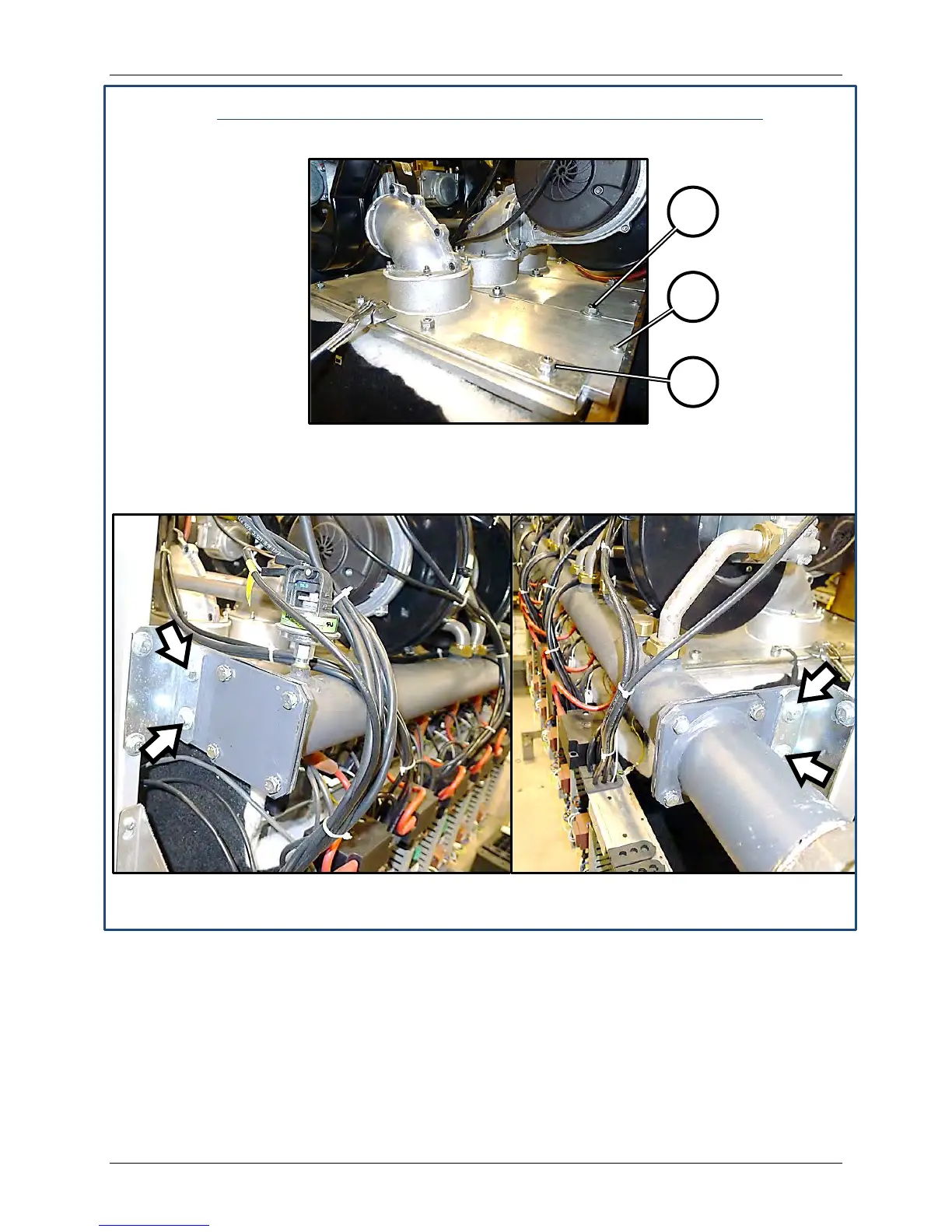

Figure 7-14: Removal of Burner Plate Hardware (Steps 9, 10, 11)
11. Refer to Figure 7-15 and remove the two bolts (white arrows) at each end of the gas
collection tube that mount it to the boiler chassis.
Figure 7-15: Uninstall Gas Collector Tube from Boiler Chassis (Step 12)
