Example 1:
A 40 foot (12.2 m) length of vent pipe and 1 sharp 90° elbow add up to 40 ft. + 10 ft. = 50
equivalent ft. (17.4 m).
Example 2:
A 30 foot (10.4 m) length of vent pipe and 2 sharp 90° elbows add up to 30 ft. + (2 x 10 ft.) =
50 equivalent ft. (17.4 m).

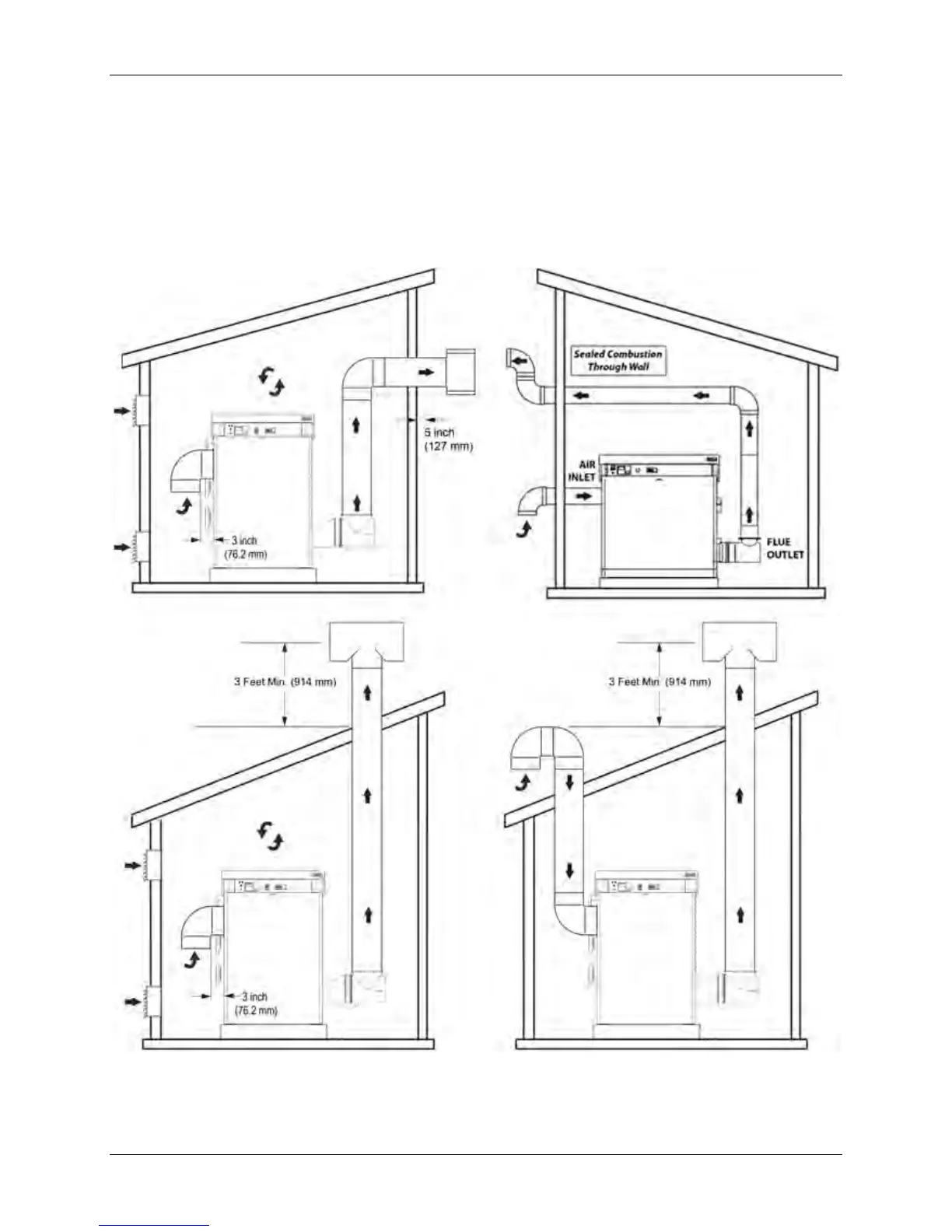

Figure 3-27: Modulex EXT Allowable Venting Solutions
