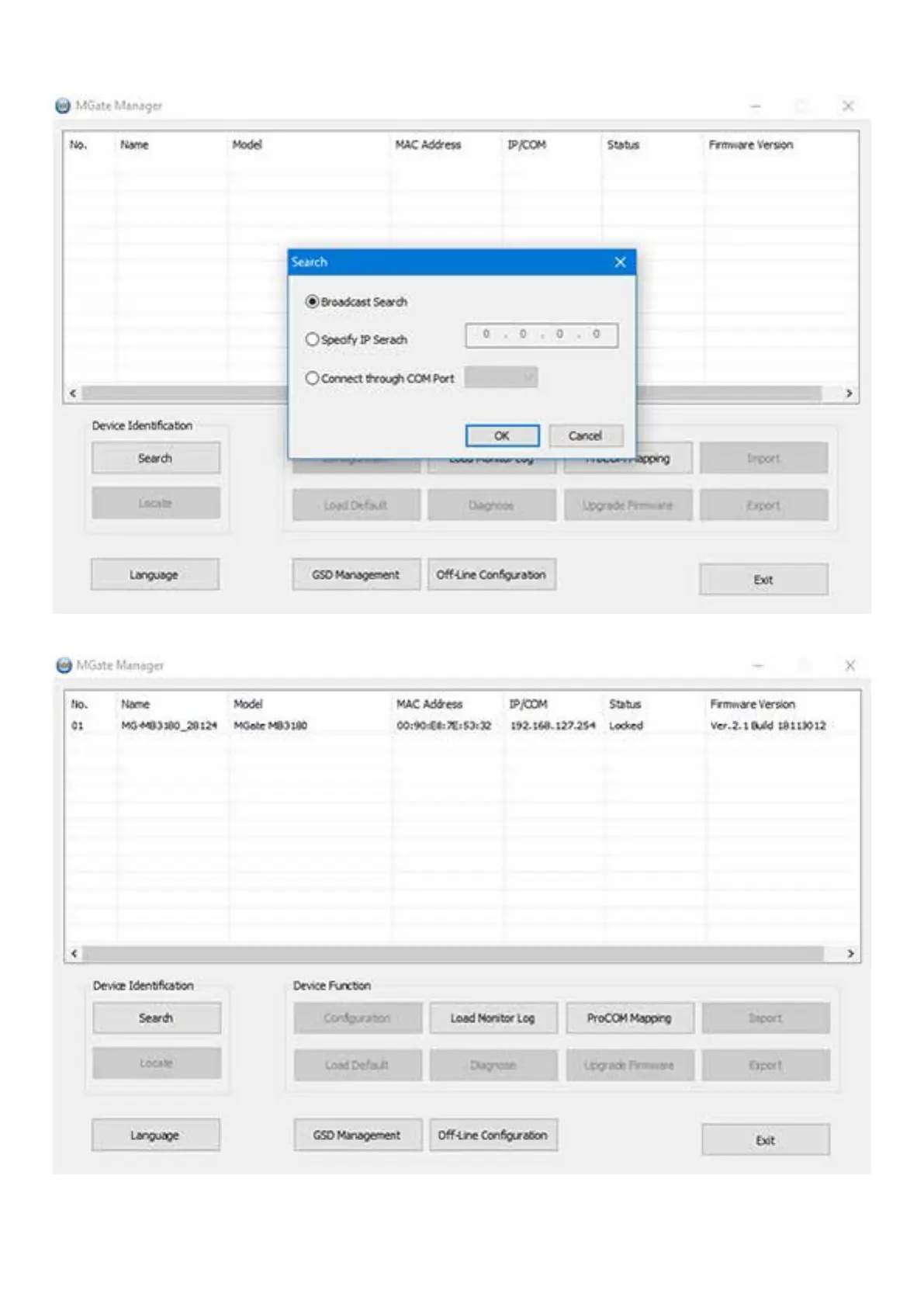

3. Iniciar el procedimiento para buscar dispositivos MB3180, presionando la tecla “Search” y conrmar la búsqueda en modalidad Broadcast.

4. Si los dispositivos y el PC están conectados correctamente a la red ethernet, el programa devuelve la lista de todos los MB3180 encontrados, vea el ejemplo siguiente:
