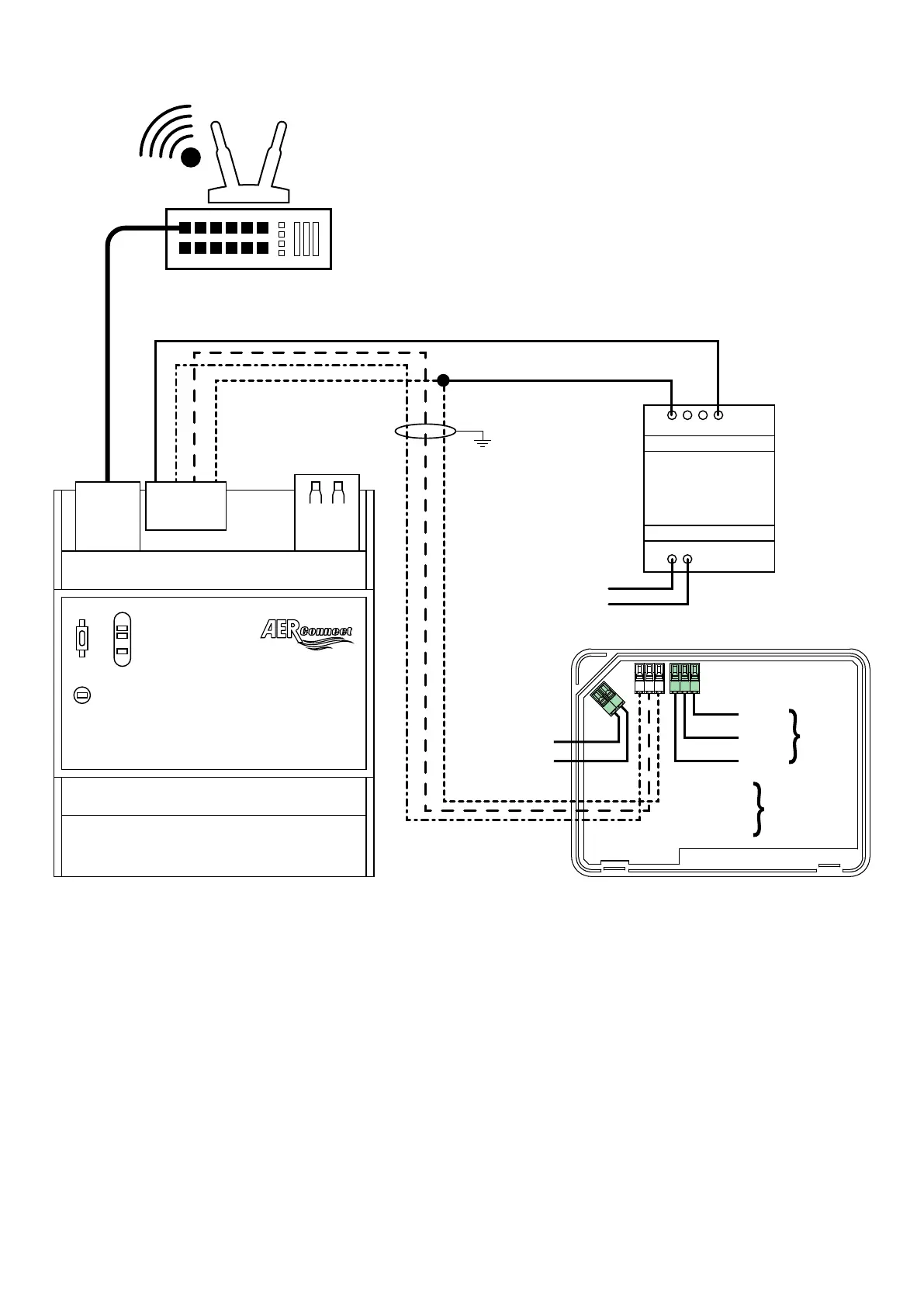

2.6 CONNECTION BETWEEN AERCONNECT AND VMF-E6
The connections must be as follows if the systems managed by the VMF-E6 are connected directly to the AERCONNECT accessory:
GND
TX- (B)
TX+ (A)
RS485
(VMF)
GND
TX- (B)
TX+ (A)
RS485
(BMS)
+12Vcc/24Vac
-12Vcc/24Vac
VMF-E6
SL
SL2
PI
+ A B -
1 2
5 6
3 4
L
N
KB-POW60-3M
ATTENTION:
— The AERCONNECT accessory must be connected to the power supply provided;
— The connection cable between the VMF-E6 and ETHERNET-RS485 must only be earthed at one end;
— The connection cable between VMF-E6 and ETHERNET-RS485 must be a multipolar shielded cable with a minimum section of 0.3255 mm
2
;
