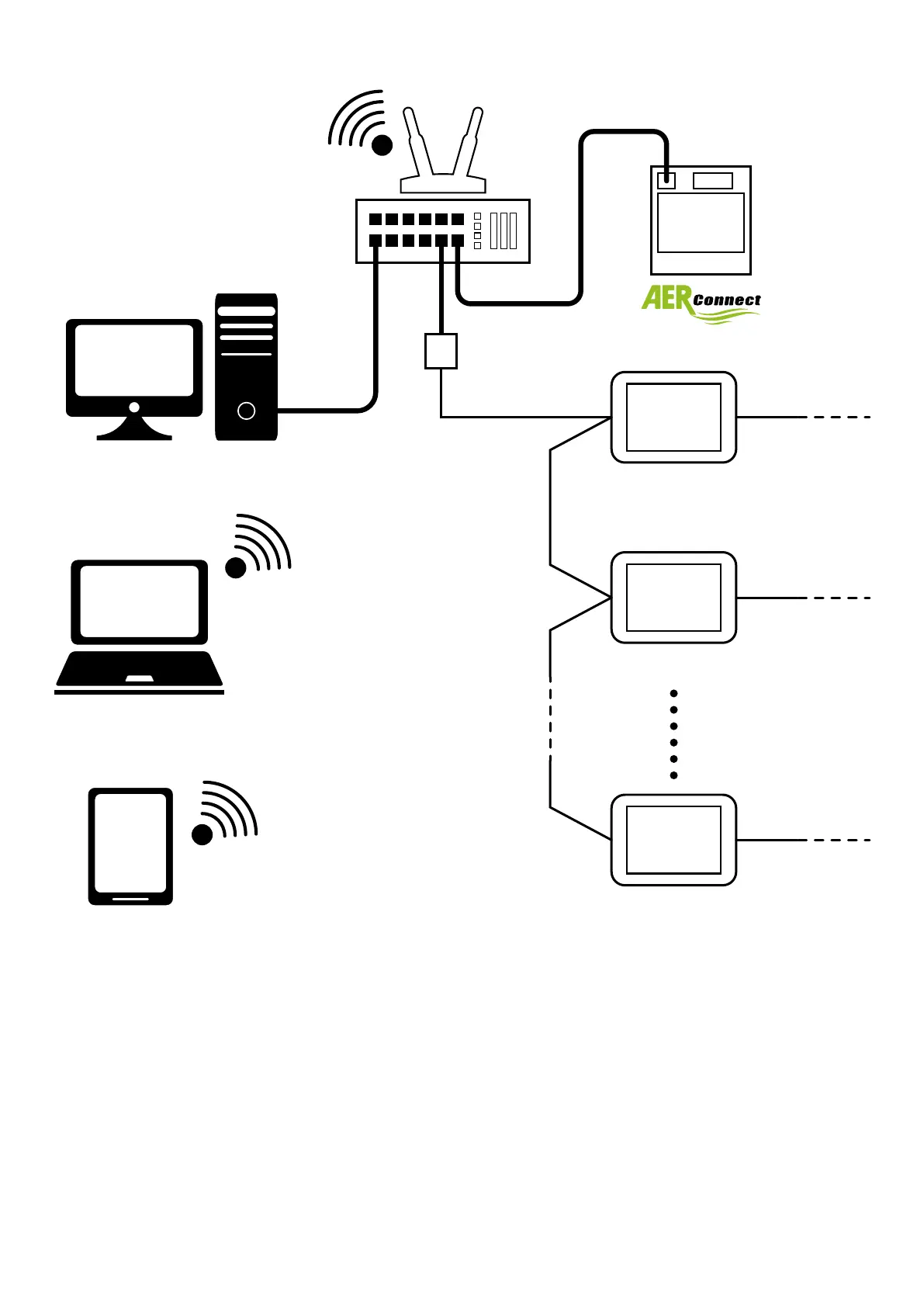

2.2 AERCONNECT AND SINGLE ETHERNET-RS485

VMF-E6 (1)

RS485 (VMF)RS485 (BMS)

VMF-E6 (2)

RS485 (VMF)

VMF-E6 (6)

RS485 (VMF)

Ethernet-RS485

Conguration for this type of connection:

1. Make all the electrical connections correctly (specied in chapter 2.5p.9);

2. Congure the parameters relating to the serial port (Modbus address, Baud rate) of the VMF-E6 panel;

3. Activate the recognition and conguration procedure of the Ethernet-RS485 expansion through the MGate-Manager software (3.1p.11);

4. Activate the webserver recognition and conguration procedure using the “AerConnect Search for devices” (3.2p.17) software;

5. System is ready for use;
