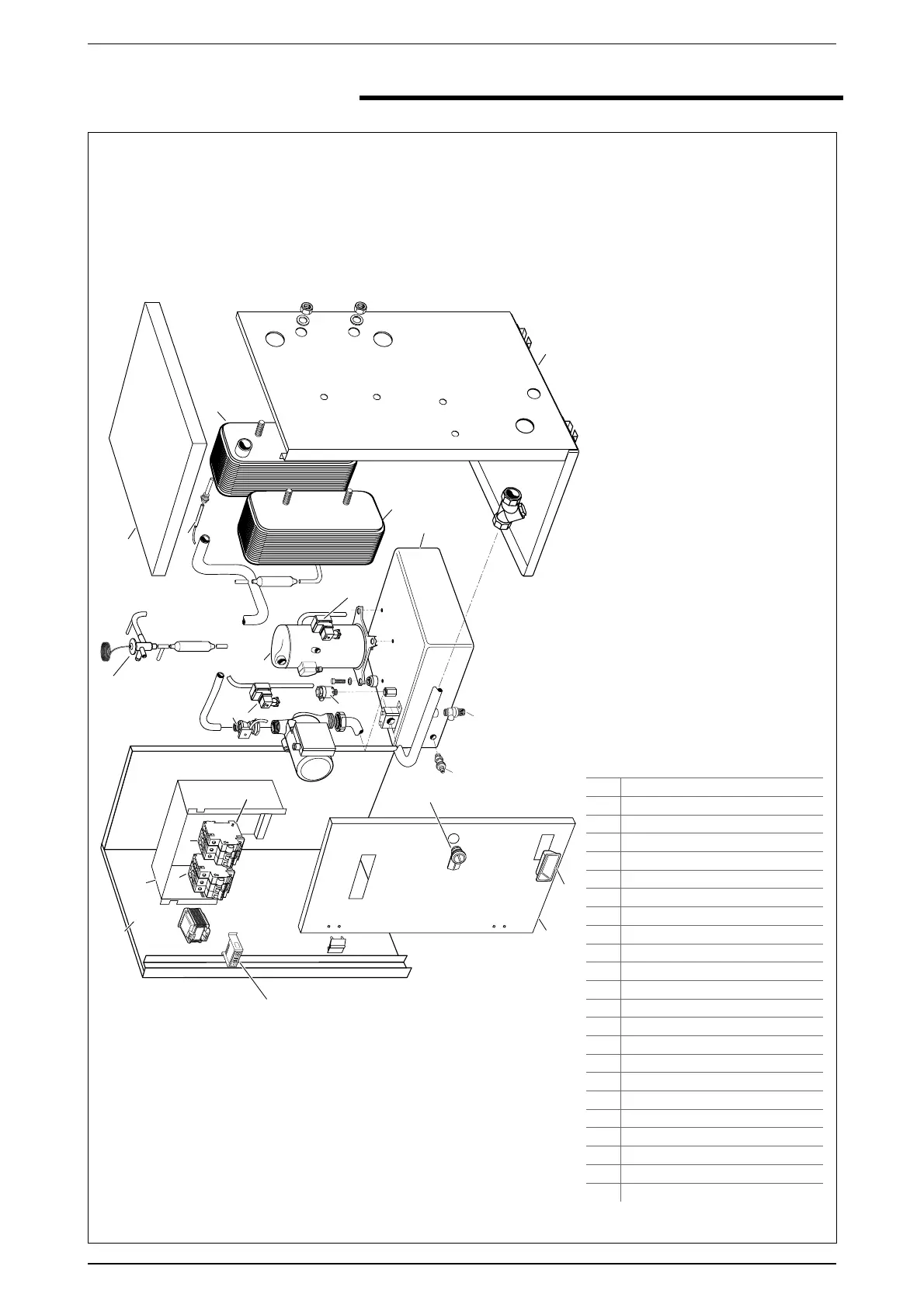

3 DESCRIPTION OF THE COMPONENTS
1
2
3
4
5
6
7
8
9
11
12
13
10
14
15
18
17
19
16
20
21
22
23
24
KEY
1
Frame
2 Electric box
3 MTP switch
4 MTA switch
5 Interlock
6 Thermostatic valve
7 Cover
8 NTC 10K water probe L=1.5 M
9 Condenser
10 Evaporator
11 Side panel
12 1" oblique filter
13 Storage
14 3 bar safety valve
15 Draining tap
16 Relief valve
17 Flow meter
18 AP high pressure pressure switch
19 Compressor
20 BP low pressure pressure switch
21 1/4 turn closure
22 Handle
24 Control board
VENICE 015 - 020 - 025 - 030 cooling only
