Operating Principle
When the sample sequence begins, the valve unit switches to the bypass
position (see Figure 3 on page 15). Solvent from the pump enters the valve
unit at port 1, and flows directly to the column through port 6.

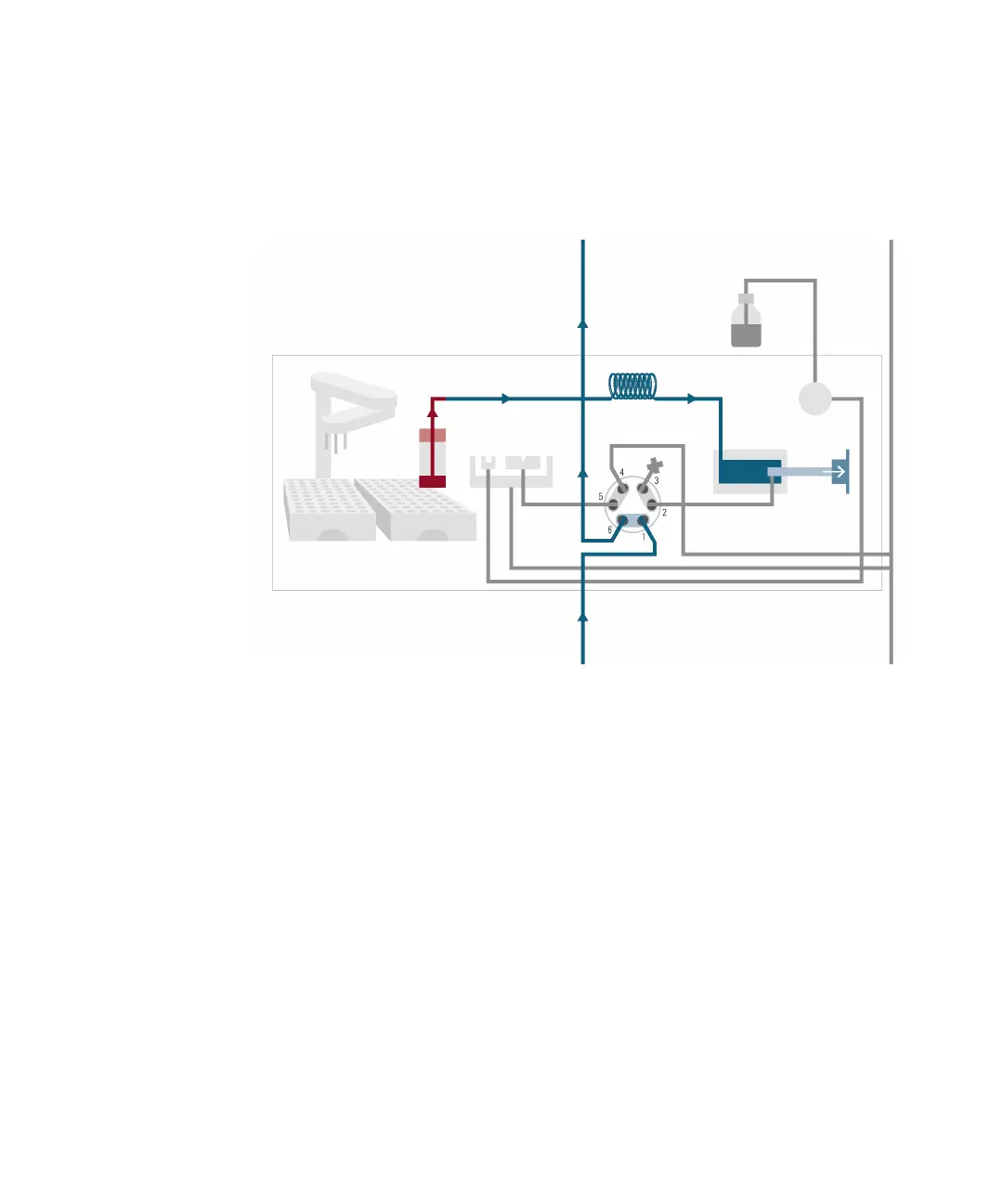

Figure 3 Valve in bypass - needle in vial, metering device aspirates sample volume
