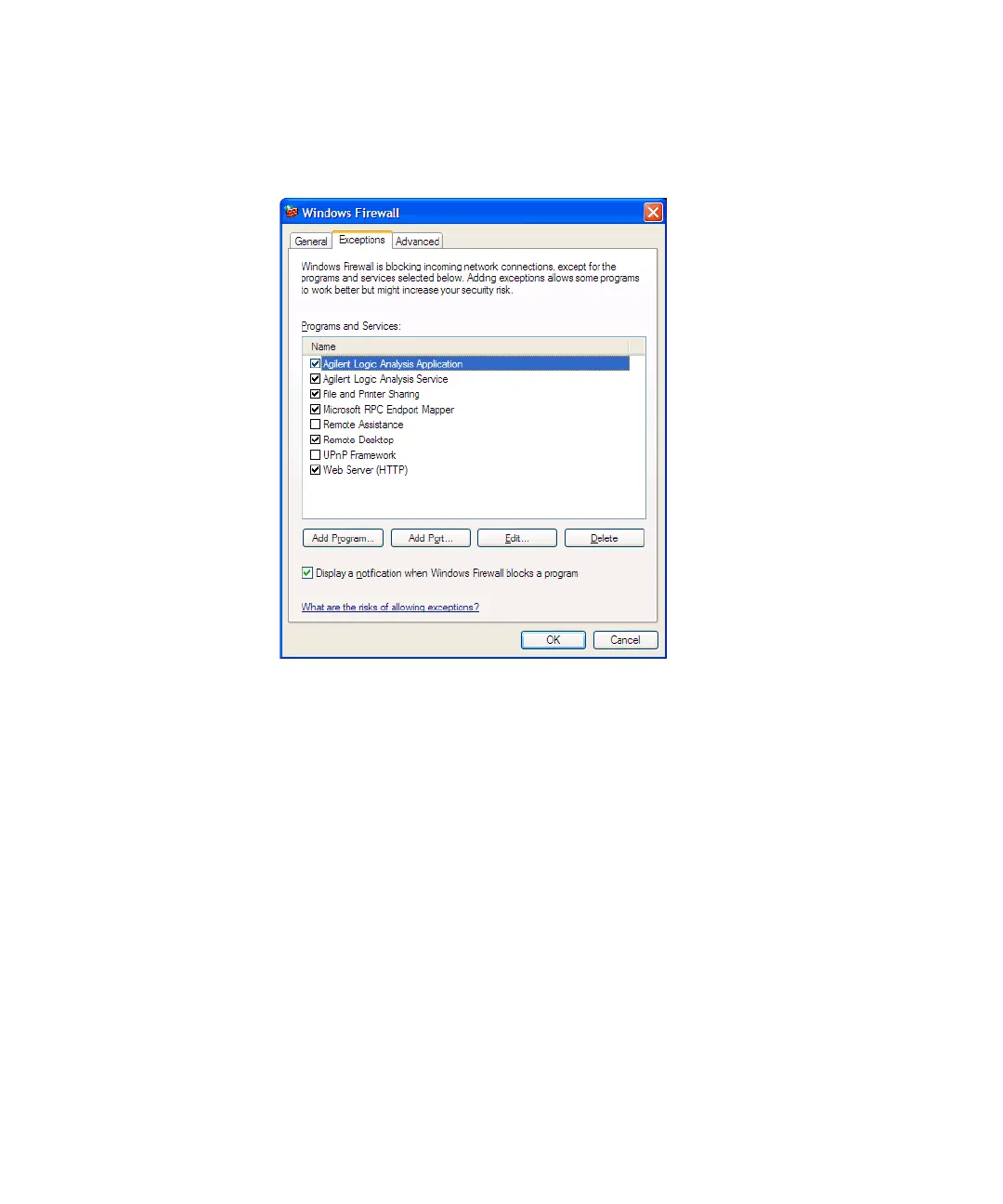

Chapter 5: Troubleshooting
2 Set up the stimulus board
a Configure the oscillator select switch S1 according to the following
settings:
• S1 0 (Off)
• S2 1 (On)
• S3 0 (Off)
•Int
b Configure the data mode switch S4 according to the following settings:
•Even
• Count
c Press the Resynch VCO button, then the Counter RST (Counter Reset)
button.
3 Set up the logic analyzer
a Open the Session Manager window and select “Start Session.”
b In the Logic Analysis System window, select the module icon, then
select Listing. A Listing window appears. You will use this window later.
c In the Logic Analysis System window, select the module icon again,
then select Setup and Trigger. A Setup and Trigger window appears.
4 Set up the Sampling tab
a In the logic analyzer Setup and Trigger window, ensure that the
Sampling tab is selected.
b Under the Sampling tab, select State Mode.
c In the upper right area of the window, select the Timing Zoom... button
d Switch Timing Zoom off, and close the Timing Zoom window.
e In the Clock Setup area of the Sampling tab, ensure that the Mode is set
to Master only.
f In the Clock Setup area of the Sampling tab, ensure that the clock edge
