3 Copy the arbitrary waveform to non-volatile memory.
You can output the arbitrary waveform directly from volatile memory
(as described in step 2) or you can copy the waveform to non-volatile
memory. Use the DATA:COPY command to copy the waveform to
non-volatile memory.
4 Select the arbitrary waveform to output.
You can select one of the five built-in arbitrary waveforms, one of four
user-defined waveforms, or the waveform currently downloaded to
volatile memory. Use the FUNC:USER command to select the waveform.
5 Output the currently selected arbitrary waveform.
Use the FUNC:SHAP USER command to output the waveform previously
selected with the FUNC:USER command.

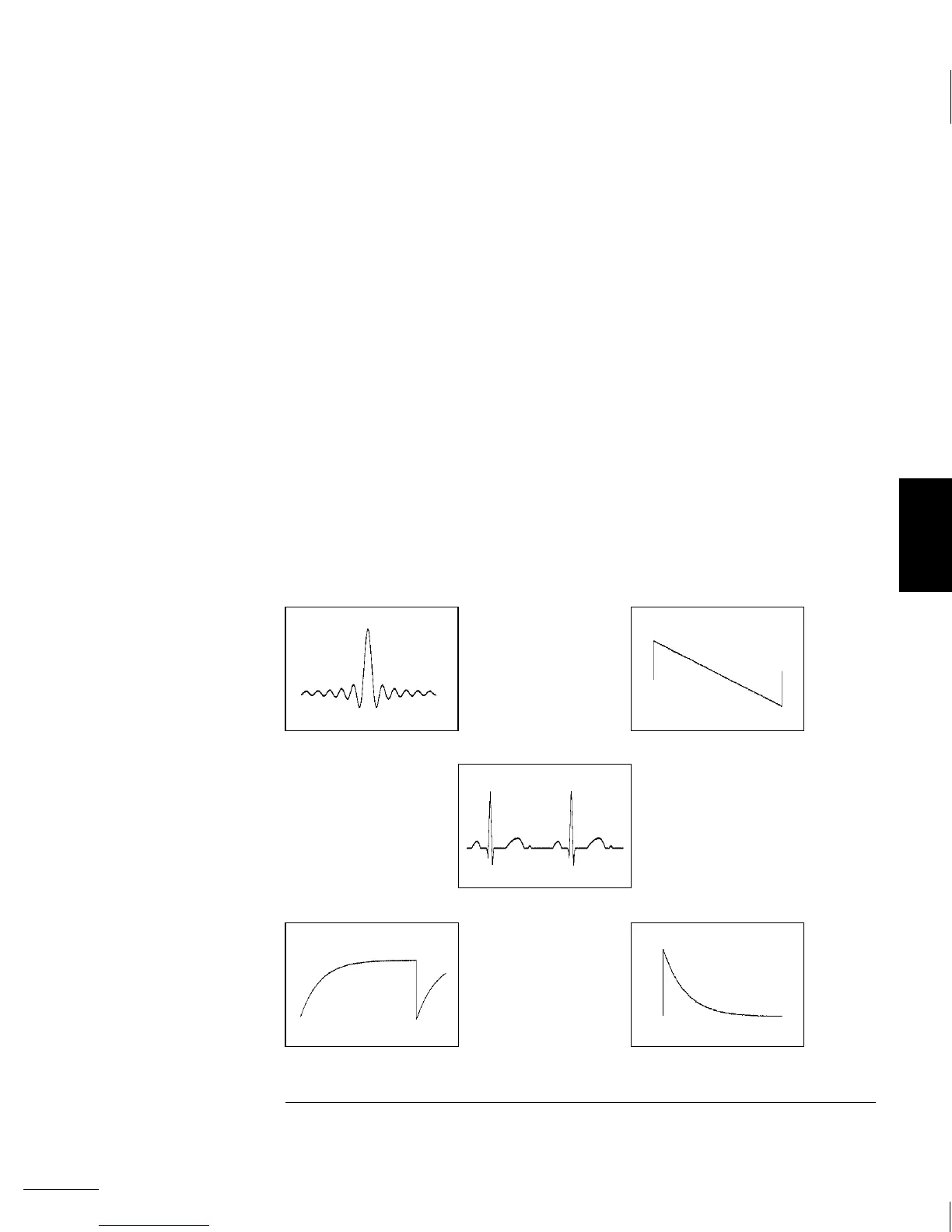

The five built-in arbitrary waveforms are shown below.
Sinc
Negative Ramp
Exponential Rise
Exponential Fall
Cardiac
4
Chapter 4 Remote Interface Reference
Arbitrary Waveform Commands
