34410A/11A User’s Guide 39
Features and Functions 2
Front Panel Features
Front Panel Display
The 34410A and 34411A multimeters feature a dual–line, alphanumeric
display, plus a set of text annunciators to indicate non–default operational
states.
Displayed Messages
During menu–driven operations (e.g. measurement configuration), the
primary display line indicates the configuration feature or menu, and the
second display line indicates the submenu, configuration choices or
parameters. The second display line also displays temporary messages,
when exiting menus or to convey meter state changes.
During measurement operations, the primary display line shows the
measurement reading and selected measurement function, and the second
display line can be enabled to display secondary measurements.
Self–Guiding Menus
The 34410A and 34411A multimeters utilize context–sensitive, self–guiding
menus for you to configure measurement functions. The following general
directions apply to most menu operations.

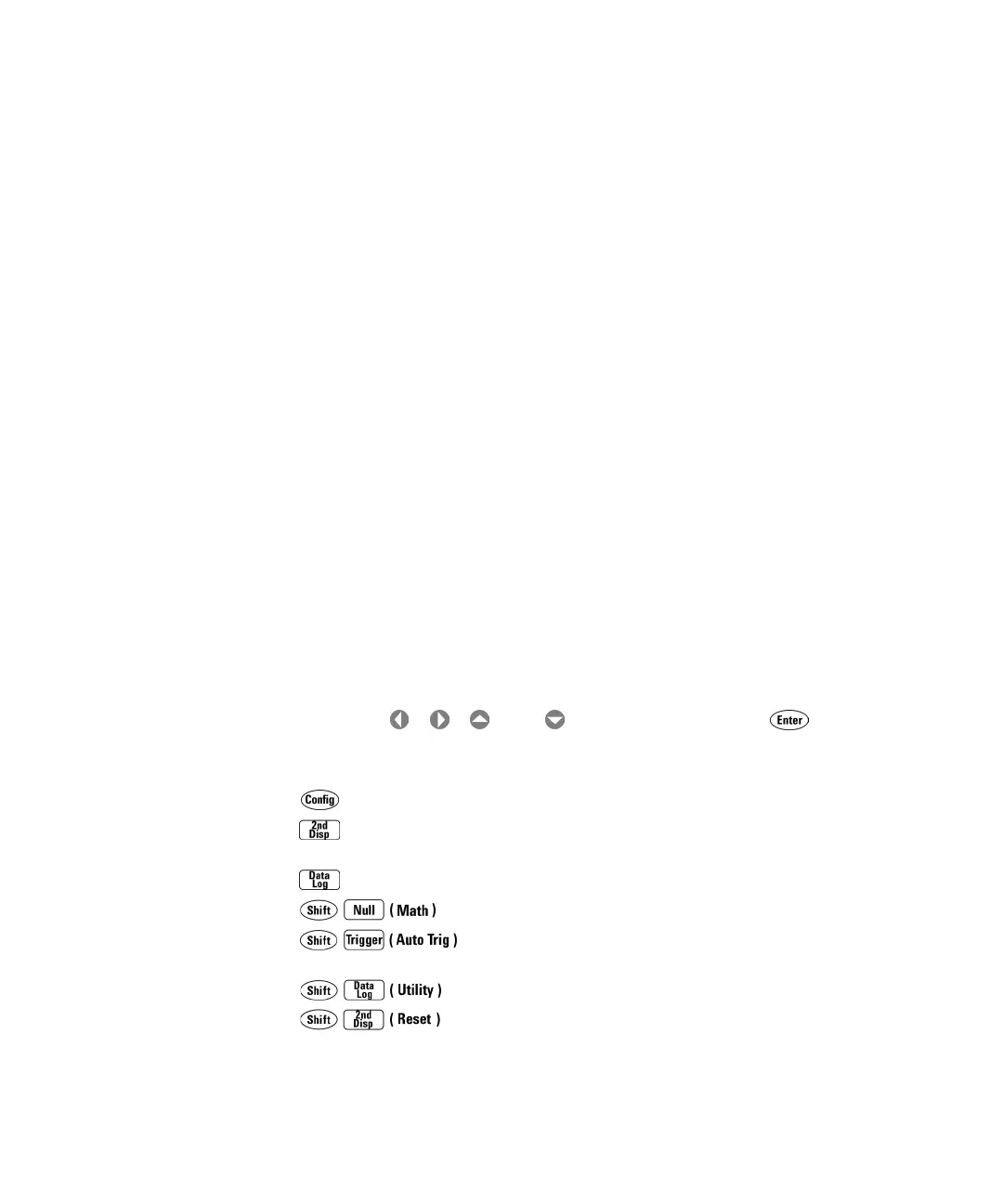

• Instructions in this guide which use the words “navigation keypad”
refer to the , , and keys surrounding the key.
• Several keys (or shifted key sequences) open a context–sensitive menu.
These include:
• : to configure the currently selected measurement function.
• : to select a secondary measurement to display on the second
display line.
• : to set up and use the Data Logger function.
• : to turn on and select the Math functions.
• : to return the multimeter to Auto Trigger mode,
enable reading hold or configure advanced triggering options.
• : to configure utility options or the remote interface.
• : to reset the multimeter to its reset state (equivalent
to the *RST command in SCPI).
The shifted functions are shown in parentheses, after the key sequence.
