Agilent Technologies 4349B Service Manual

Setup
1/2
This
setup obtains
the
I-V
Converter
scaling
factors
.

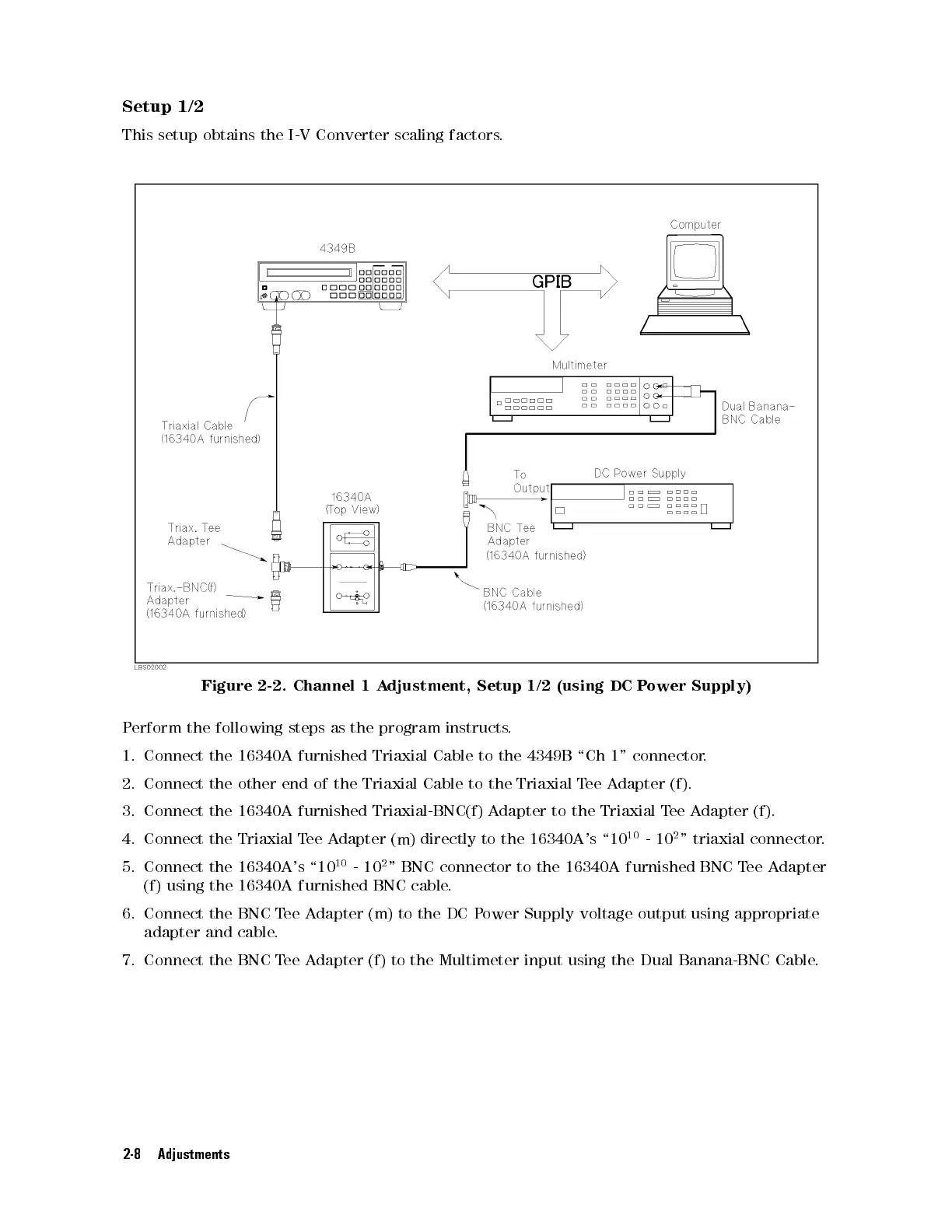

Figure
2-2. Channel
1
A
djustment,
Setup
1/2
(using
DC
P
ower
Supply)
P
erform
the
following
steps
as
the
program
instructs
.
1.
Connect
the
16340A
furnished
Triaxial
Cable
to
the
4349B
\Ch
1"
connector
.
2.
Connect the
other
end
of
the
Triaxial
Cable
to
the
Triaxial
T
ee
A
dapter
(f).
3.
Connect
the
16340A
furnished
Triaxial-BNC(f)
A
dapter
to
the
Triaxial T
ee A
dapter (f).
4.
Connect
the
Triaxial
T
ee
A
dapter
(m)
directly
to the
16340A's
\10
10
-
10
2
"
triaxial
connector
.
5. Connect the 16340A's \10
10
-10
2
" BNC connector to the 16340A furnished BNC T
ee A
dapter
(f) using the 16340A furnished BNC cable
.
6.
Connect the BNC T
ee A
dapter (m) to the DC P
ower Supply voltage output using appropriate
adapter and
cable.
7. Connect the
BNC T
ee A
dapter (f) to the Multimeter input using the Dual Banana-BNC Cable
.
2-8 Adjustments
