Agilent Technologies 4349B Service Manual

T

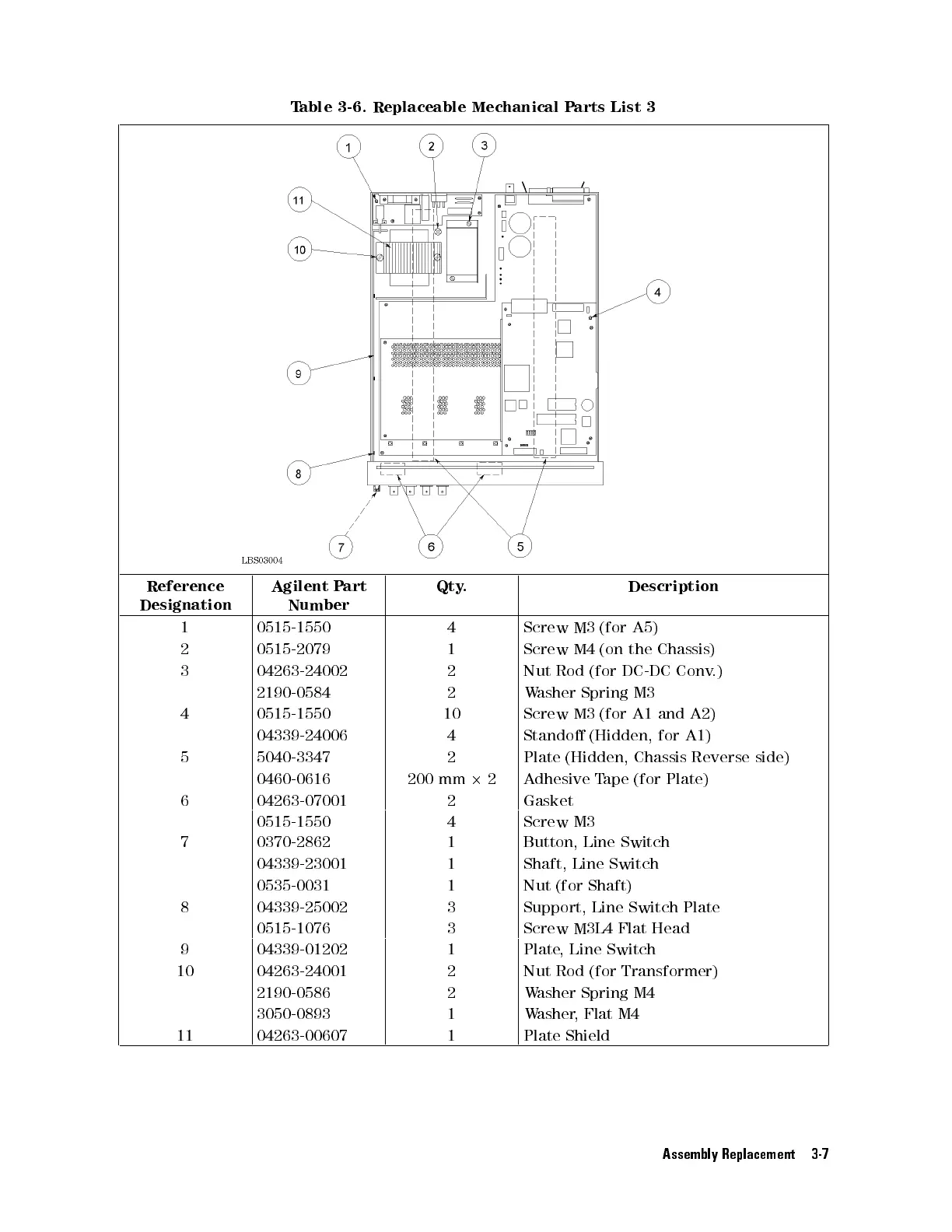

able 3-6.
Replaceable Mechanical
Parts
List
3
Reference
Designation
Agilent
P
art
Number
Qty
.
Description
1 0515-1550 4 Screw
M3 (for
A5)
2 0515-2079 1 Screw
M4
(on
the
Chassis)
3 04263-24002 2 Nut
Rod
(for
DC-DC
Conv.)
2190-0584 2 W
asher
Spring
M3
4 0515-1550 10 Screw
M3 (for
A1 and
A2)
04339-24006 4 Stando (Hidden,
for
A1)
5 5040-3347 2 Plate
(Hidden,
Chassis
Reverse
side)
0460-0616 200
mm 2
2
A
dhesive T
ape (for
Plate)
6 04263-07001 2 Gasket
0515-1550 4 Screw
M3
7 0370-2862 1 Button,
Line
Switch
04339-23001 1 Shaft, Line Switch
0535-0031 1 Nut (for Shaft)
8 04339-25002 3 Support, Line Switch Plate
0515-1076 3 Screw M3L4 Flat Head
9 04339-01202 1 Plate, Line Switch
10 04263-24001 2 Nut Rod (for Transformer)
2190-0586 2 Washer Spring M4
3050-0893 1 Washer, Flat M4
11 04263-00607 1 Plate Shield
Assembly Replacement 3-7
