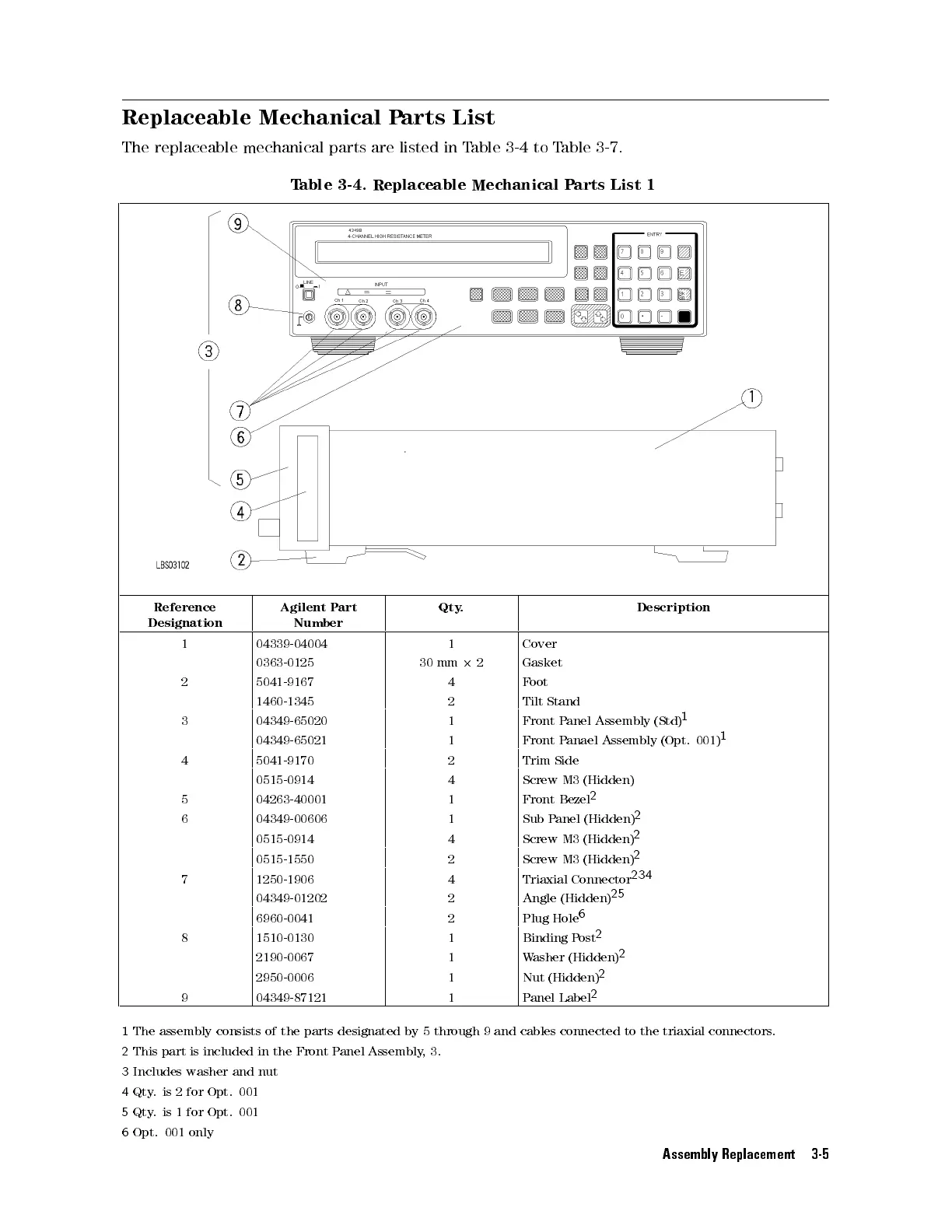

Agilent Technologies 4349B Service Manual

Replaceable Mechanical
Parts
List
The
replaceable
mechanical
parts
are listed
in T
able 3-4
to T
able 3-7
.
T
able
3-4.
Replaceable
Mechanical
P
arts List
1
Reference
Designation
Agilent
P
art
Number
Qty
.
Description
1 04339-04004 1 Cover
0363-0125 30
mm
2
2
Gasket
2 5041-9167 4 F
oot
1460-1345 2 Tilt
Stand
3 04349-65020 1 Front P
anel Assembly
(Std)
1
04349-65021 1 Front
Panael
Assembly (Opt.
001)
1
4 5041-9170 2 Trim
Side
0515-0914 4 Screw
M3 (Hidden)
5 04263-40001 1 Front Bezel
2
6 04349-00606 1 Sub
P
anel
(Hidden)
2
0515-0914 4 Screw
M3
(Hidden)
2
0515-1550 2 Screw M3 (Hidden)
2
7 1250-1906 4 Triaxial Connector
234
04349-01202 2 Angle (Hidden)
25
6960-0041 2 Plug Hole
6
8 1510-0130 1 Binding
Post
2
2190-0067 1 Washer (Hidden)
2
2950-0006 1 Nut (Hidden)
2
9 04349-87121 1 Panel Label
2
1 The assembly consists of the parts designated by 5 through 9 and cables connected to the triaxial connectors.
2 This part is included in the Front Panel Assembly,3.
3 Includes washer and nut
4 Qty.is2forOpt. 001
5 Qty.is1forOpt. 001
6 Opt. 001 only
Assembly Replacement 3-5
