4. Remove
the side
trim label
from both
sides of
the
front
bezel.
5. Remove
four screws
that secure
the front
panel bezel
to
the
chassis
from
both
sides
.
6. Place
the front
panel assembly
,
so
that
the
front
panel
faces
down.
7. Remove
the screw
that secures
the
keyboard
to
the
front
panel
bezel.
8. Remove
the keyboard
assembly
from
the
front
panel
bezel.

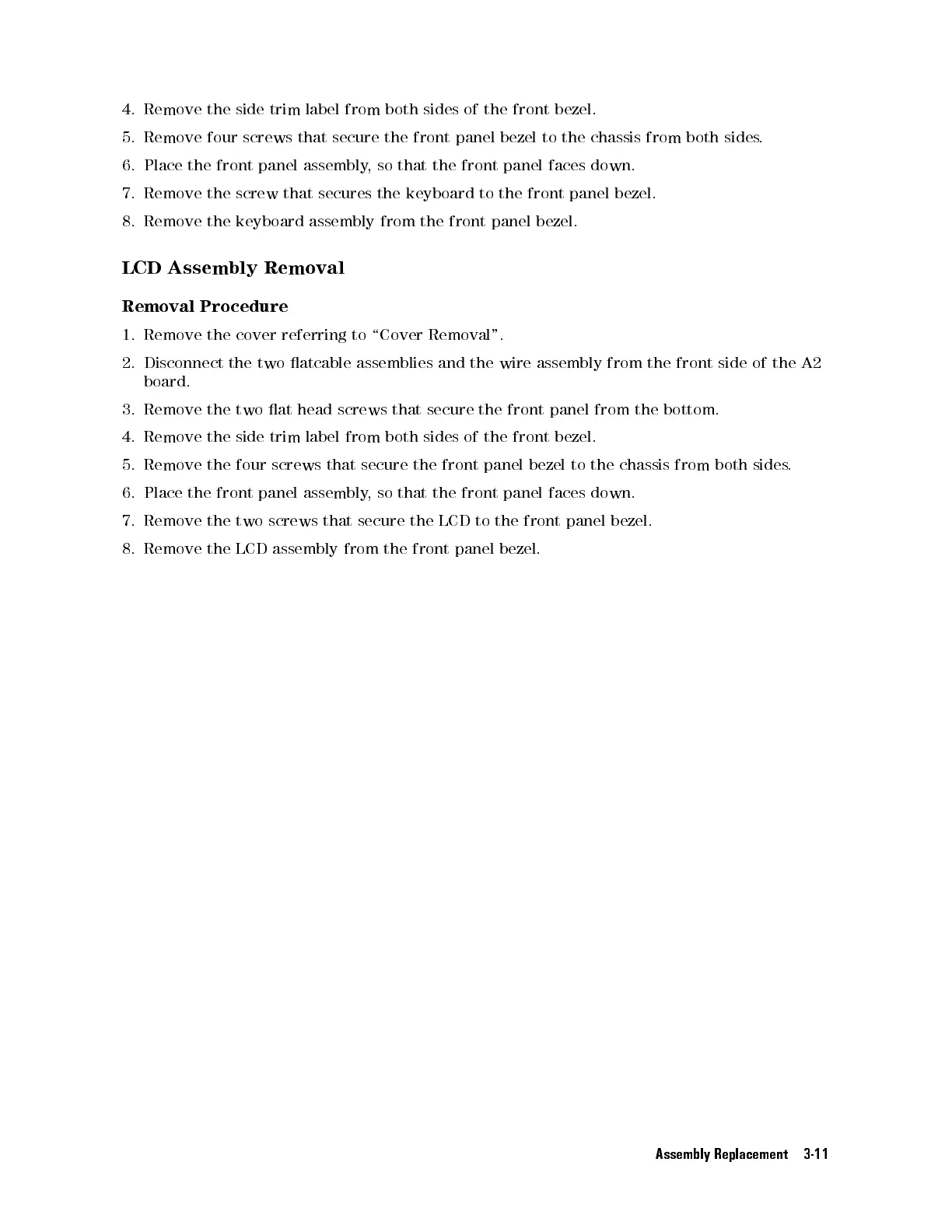

LCD
Assembly
Removal
Removal
Procedure
1.
Remove
the
cover
referring
to
\Cover
Removal".
2.
Disconnect
the
two
atcable
assemblies
and
the
wire
assembly
from
the
front
side
of the
A2
board.
3.
Remove
the
two
at
head
screws
that
secure
the
front
panel
from
the
bottom.
4.
Remove
the
side
trim
label
from
both
sides
of
the
front
bezel.
5.
Remove
the
four
screws
that
secure
the
front
panel
bezel
to
the
chassis
from
both sides
.
6.
Place
the
front
panel
assembly
,
so
that
the
front
panel
faces
down.
7.
Remove
the
two
screws
that
secure
the
LCD
to the
front panel
bezel.
8.
Remove
the
LCD
assembly
from
the
front
panel
bezel.
Assembly Replacement 3-11
