Agilent Technologies 4349B Service Manual

Channel
1
A
djustment
Using
DCV
Calibrator
Note
This
section
provides
adjustment
procedure
using a
DCV Calibrator
.If
a
DC
P
ower
Supply is
used, refer
to \Channel
1A
djustment Using
DC P
ower
Supply".
Equipment
DCV
Calibrator
3245A
Multimeter 3458A
RC
Box
16340A
Dual
Banana-BNC(m)
Cable
PN
11001-60001
Triaxial T
ee (m)(f)(f)
Adapter
PN
1250-1551
Setup
1/2
This
setup
obtains
the
I-V
Converter scaling
factors.

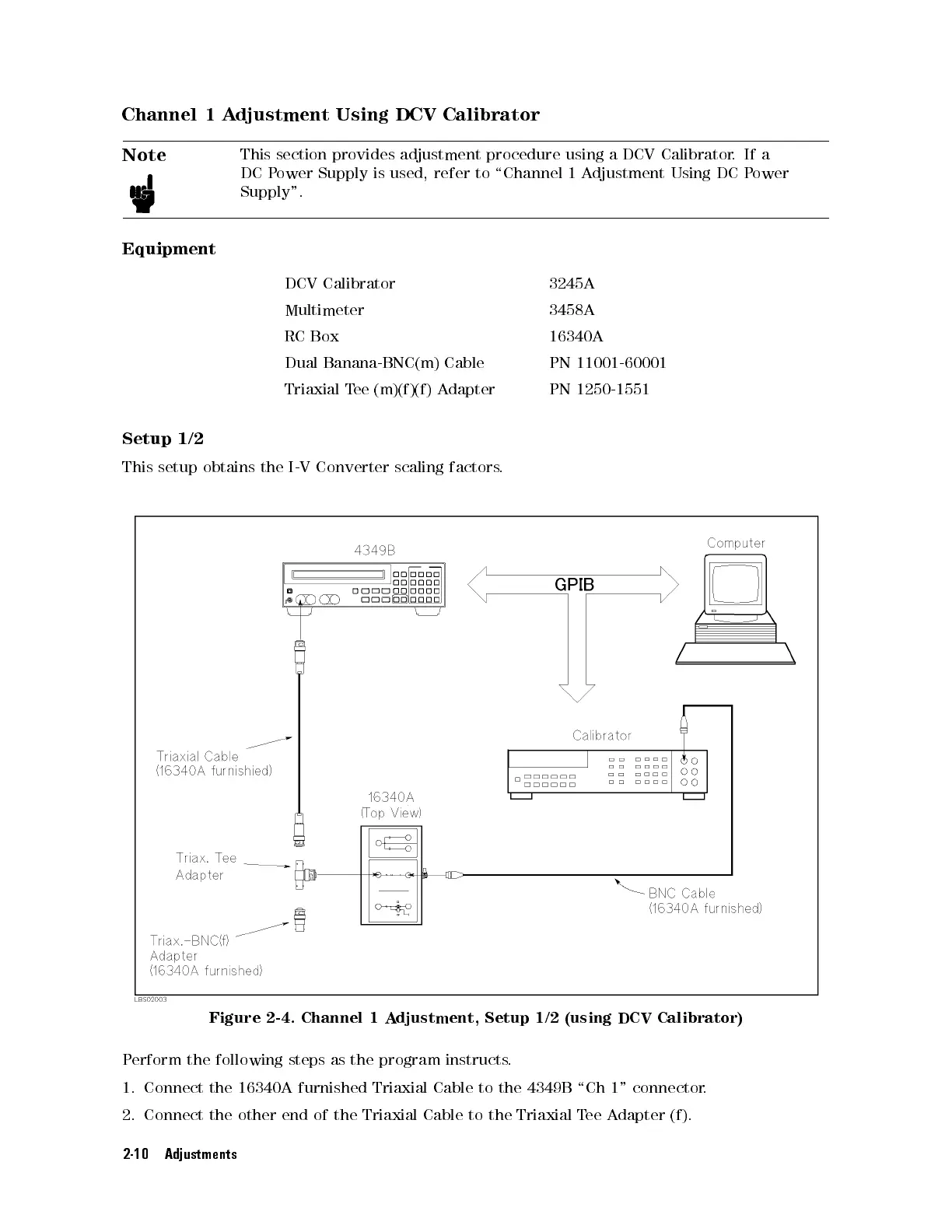

Figure 2-4. Channel 1 Adjustment, Setup 1/2 (using DCV Calibrator)
Perform the following steps as the program instructs.
1. Connect the 16340A furnished Triaxial Cable to the 4349B \Ch 1" connector.
2. Connect the other end of the Triaxial Cable to the Triaxial Tee Adapter (f).
2-10 Adjustments
