Setup
2/2
This
setup obtains
the
I-V
Converter
input
resistance
data
and
the
I-V
Converter
scaling
factors.

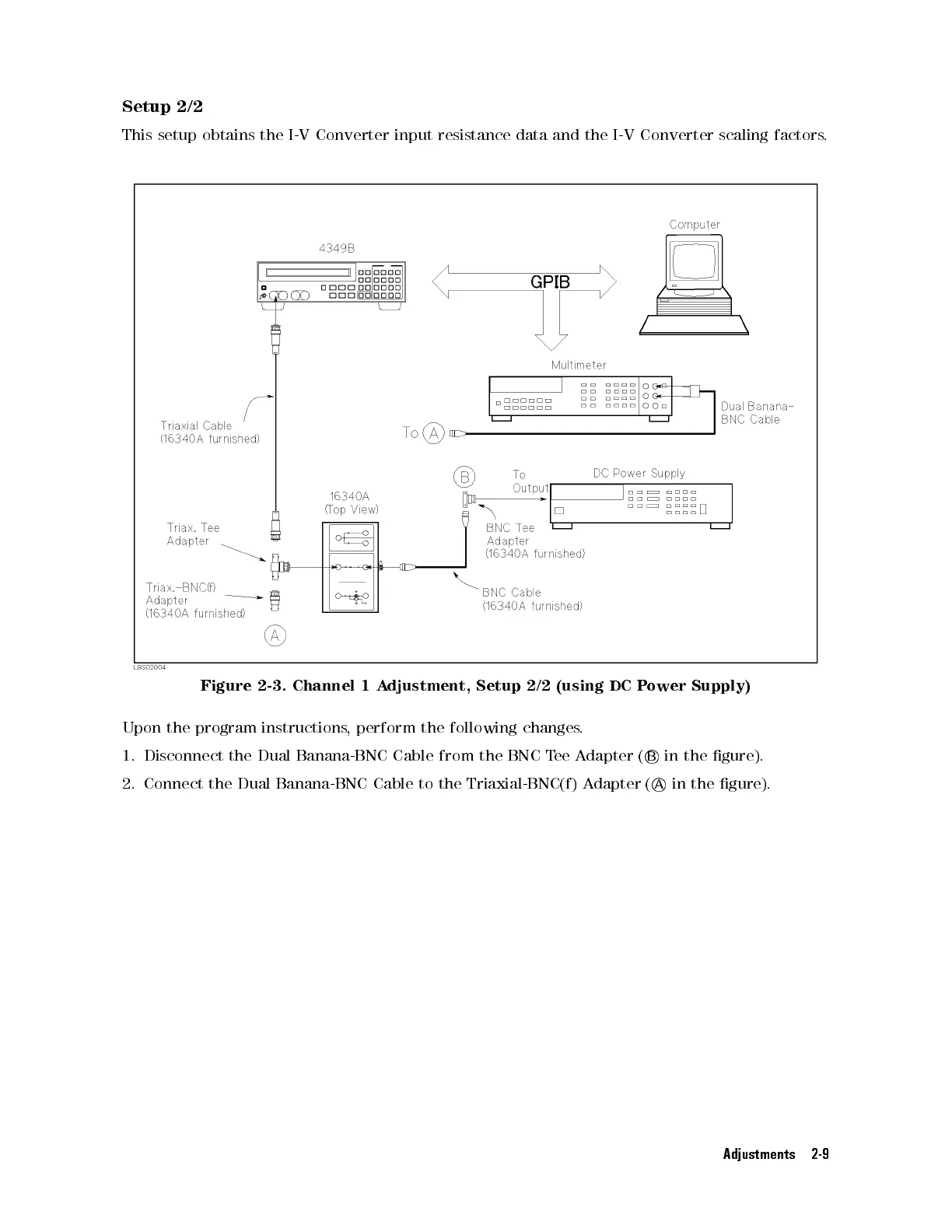

Figure
2-3. Channel
1
A
djustment,
Setup
2/2
(using
DC
P
ower
Supply)
Upon
the
program
instructions
,
perform
the
following
changes
.
1.
Disconnect
the
Dual
Banana-BNC
Cable
from
the
BNC
T
ee
A
dapter
(
B

in
the
gure).
2.
Connect the
Dual
Banana-BNC
Cable
to
the
Triaxial-BNC(f)
A
dapter
(
A

in
the
gure).
Adjustments 2-9
