3. Connect
the 16340A
furnished Triaxial-BNC(f)
A
dapter
with
to
the
Triaxial
T
ee
A
dapter
(f).
4. Connect
the
Triaxial
T
ee
A
dapter
(m)
directly
to
the
16340A's
\10
10
-10
2
" triaxial
connector
.
5. Connect
the
16340A's
\10
10
-10
2
" BNC
connector
to
the
calibrator
dc
voltage
output
using
the 16340A
furnished
BNC
cable
and
appropriate
adapter
.
Setup
2/2
This
setup
obtains
the
I-V
Converter
input
resistance
data
and
the
I-V
Converter
scaling
factors
.

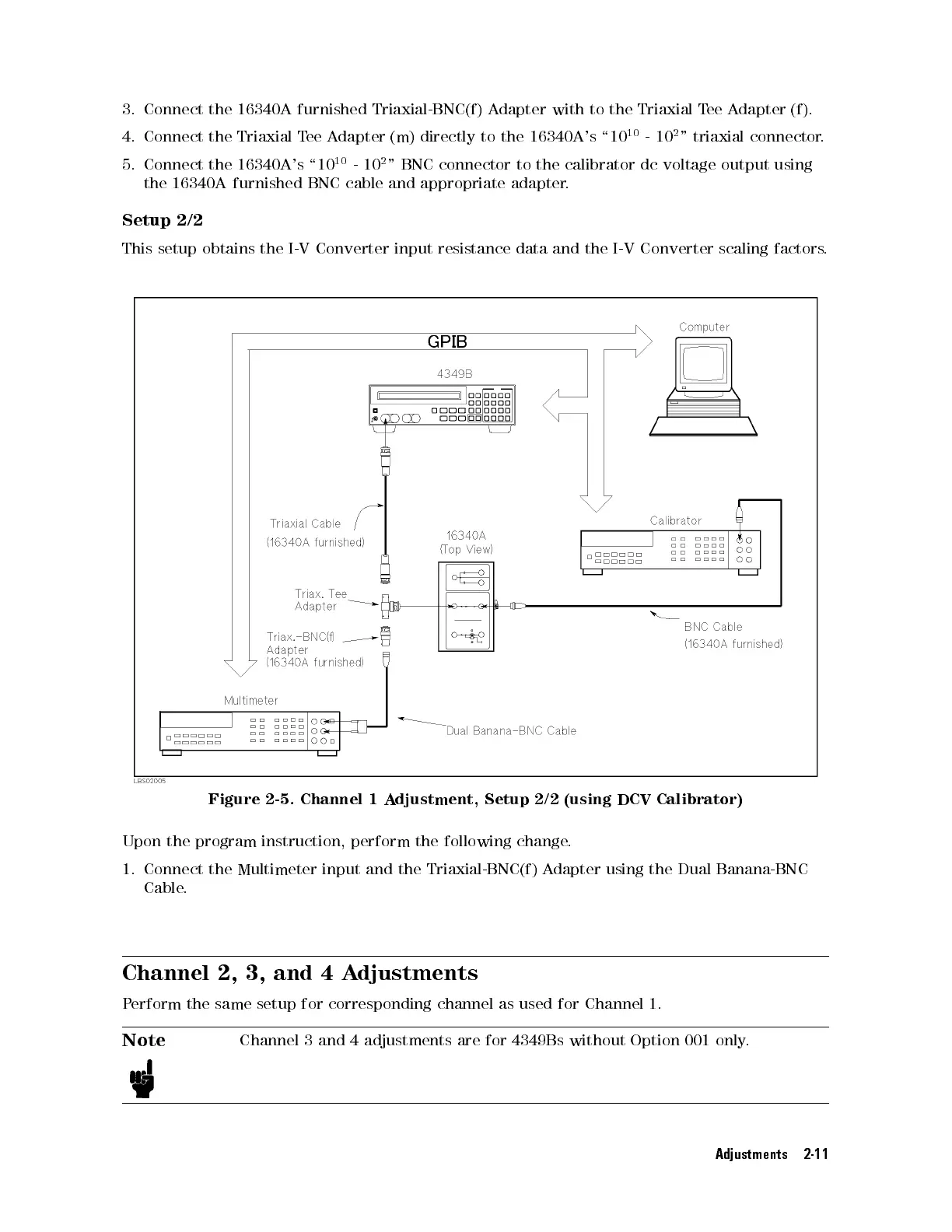

Figure
2-5.
Channel
1
A
djustment,
Setup
2/2
(using
DCV
Calibrator)
Upon
the
program
instruction,
perform
the
following
change
.
1. Connect the Multimeter input and the Triaxial-BNC(f) A
dapter using
the Dual Banana-BNC
Cable.
Channel 2, 3, and 4 A
djustments
Perform the same setup for corresponding channel as used for Channel 1.
Note
Channel 3 and 4 adjustments are for 4349Bs without Option 001 only.
Adjustments 2-11
