Installation
Agilent 5800 and 5900 ICP-OES User's Guide 21
All connections of services to the ICP-OES instrument are made on the right side
of the instrument, except for the mains power which is on the left side of the
instrument. Remove the cover on the right side by hand to gain access to the
Ethernet, accessory, water and gas connections. The Power on/off button is
located on the front lower left side of the instrument and the mains power switch
is located on the left back side of the instrument.

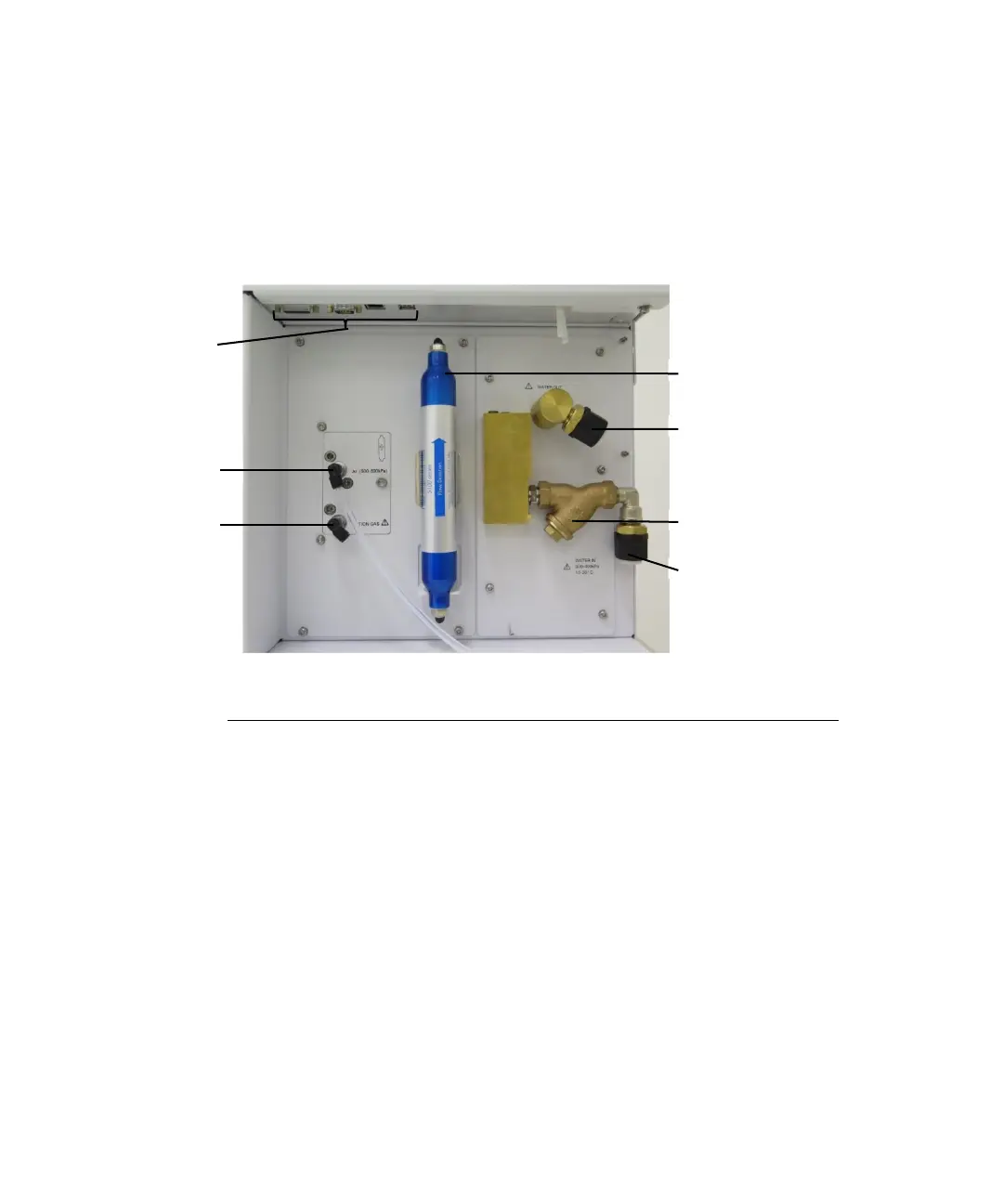

Figure 2. Input and output connections on the side of the ICP-OES instrument
Item Description
1 Accessory and LAN
cable connections
Agilent accessory connections and shielded Ethernet cable
for PC to instrument communication
2 Argon gas inlet Argon gas inlet, standard
3 Option gas inlet Option gas (80% Ar/20% O
2
mix) inlet. Optional nitrogen gas
inlet (not shown)
4 Optics purge filter Argon or nitrogen gas filter
5 Water outlet Connect to return from the water chiller
6 Water filter Coarse particulate water filter
7 Water inlet Connect to supply from the water chiller
3
5
2
7
1
6
4
