Agilent Technologies 7697A Maintenance

10 Maintenance
2 Removing Covers and Components
To Remove the Pneumatics Front Cover
The pneumatics front cover protects the valve thermal
enclosure and transfer line. To remove the pneumatics front
cover:
1 Press [Tray Park/Carousel Advance] to “park” the tray (if
available).
2 Remove the T- 20 screw that secures the cover in place
(Figure 1).

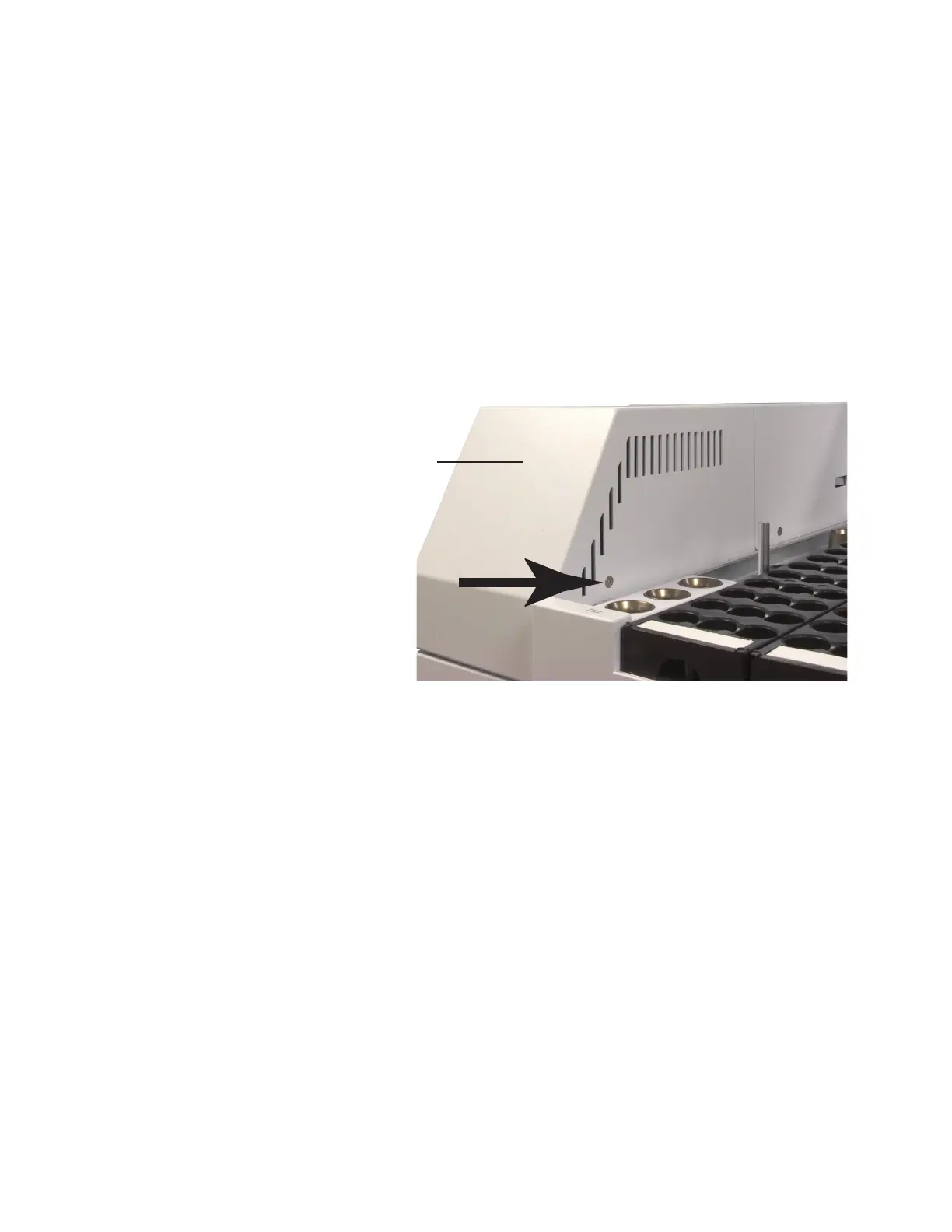

Figure 1 Remove the T-20 Torx screw from the pneumatics front cover
3 Slide the cover out, then lift to remove.
Reinstallation is the reverse of these steps.
Pneumatics
front cover
