22 Maintenance
2 Removing Covers and Components
To Remove the Rotating Top Cover (12-Vial Model)
The rotating top cover protects the carousel on the 12- vial
model Headspace sampler. To remove the rotating top cover:
1 Power off the Headspace and disconnect the power cord.
2 Lift the rotating top cover from the front so that the two
thumbscrews are accessible underneath.
3 Unhinge and remove the rotating top cover by pulling one
of the two thumbscrews inward while lifting the cover off
of the chassis (Figure 14). Once the thumbscrew
disconnects, repeat the same action for the second
thumbscrew.

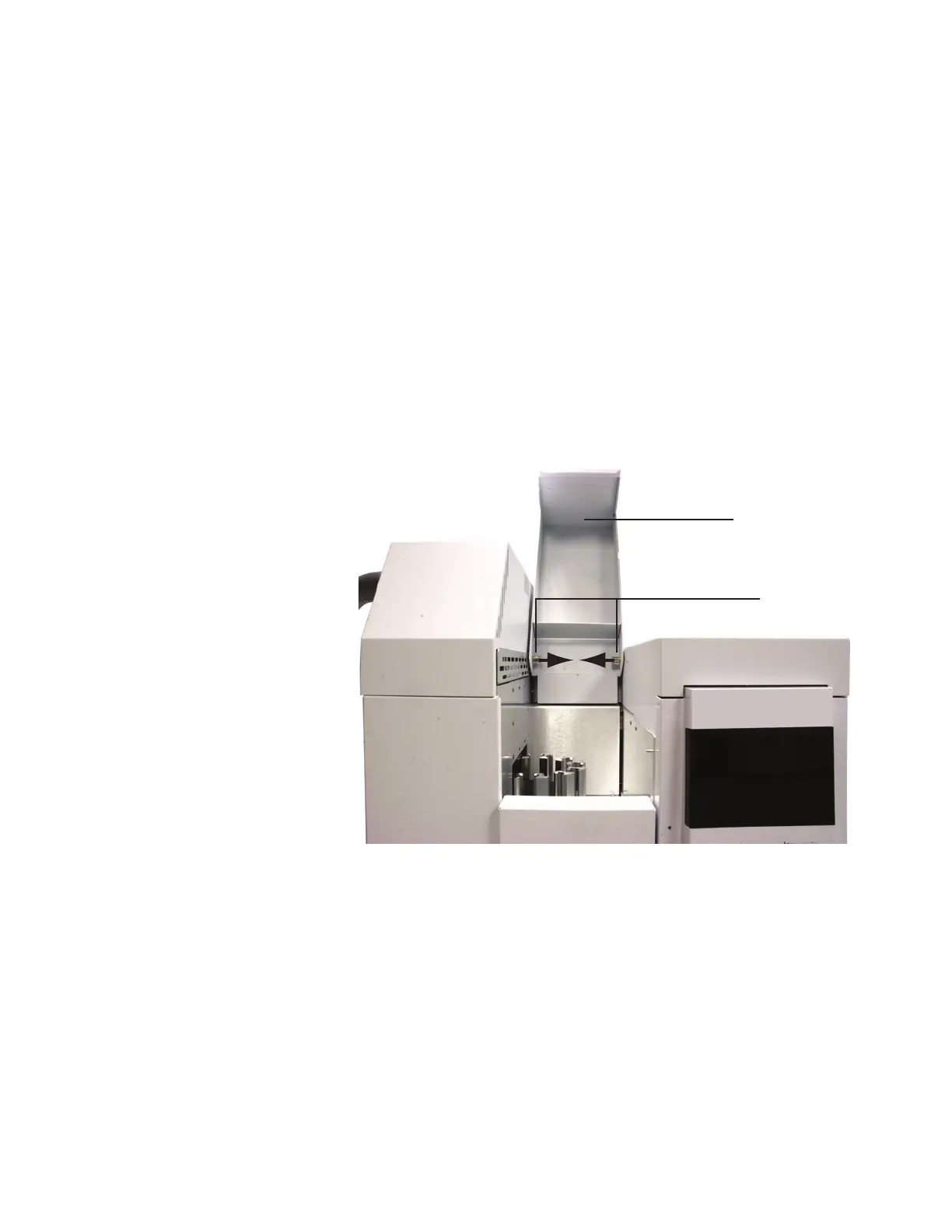

Figure 14 Removing the rotating top cover (12-vial model)
4 Remove the rotating top cover.
Reinstallation is the reverse of these steps.
Thumbscrews
Rotating top cover
