Removing Covers and Com
ponents
2
Maintenance
21
7
Slide th
e cables ou
t of t
he tray cable clip (
Figu
re
13
).

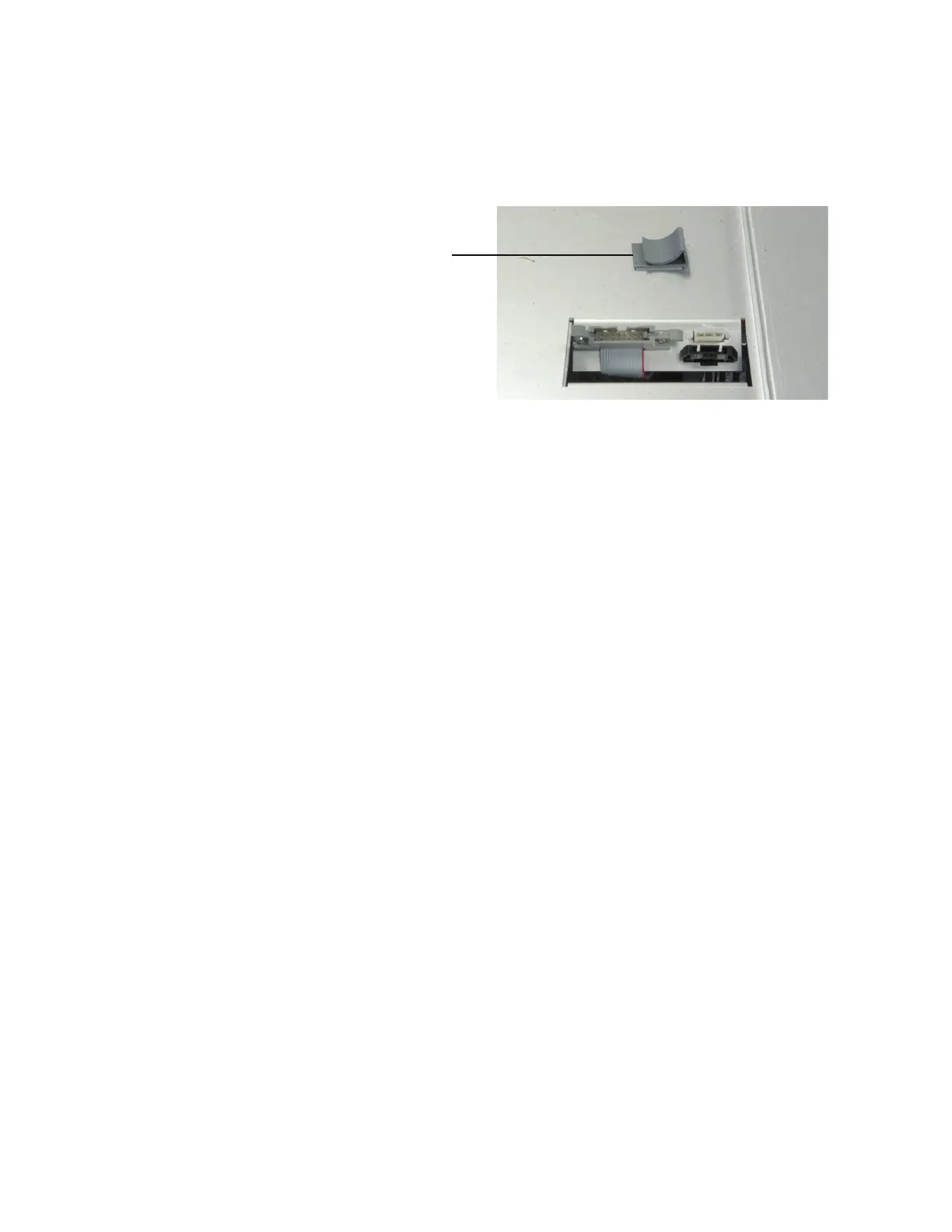

Figure 13
T
ray cable clip
8
Lift t
he tray as
sembly off of t
he Headspace and place it
on a f
lat surface.
Reinstallation is th
e rev
erse of these steps.
T
ray cable clip
20
22
Table of Contents
Default Chapter
3
Table of Contents
3
1 About Maintaining the Headspace Sampler
5
Overview of Maintenance
6
Where to Find a Procedure
6
Early Maintenance Feedback Feature
6
Tools and Materials Required for Maintenance
7
Safety
8
2 Removing Covers and Components
9
To Remove the Pneumatics Front Cover
10
To Remove the Valve Thermal Enclosure
11
To Install the Valve Thermal Enclosure
12
To Remove the Pneumatics Assembly
13
To Remove the Valve Cover
17
To Remove the Loop Cover
18
To Remove the Valve/Loop Cover
19
To Remove the Tray Assembly (111-Vial Model)
20
To Remove the Rotating Top Cover (12-Vial Model)
22
To Clean the Sample Tray (12-Vial Model)
24
To Replace the Sample Tray Seals (12-Vial Model)
26
To Clean the Sample Tray Assembly (111-Vial Model)
27
To Clean the Oven (111-Vial Model)
29
To Replace the Sample Probe
34
To Replace the Sample Loop
37
To Replace the Sample Loop Adapters
42
To Replace the 6 Port Valve
45
To Replace the 6 Port Valve Rotor
46
To Clean the 6 Port Valve and Rotor
49
To Attach the Transfer Line to a Split Splitless or Multimode Inlet
50
To Attach the Transfer Line to a Volatiles Interface
52
To Attach the Transfer Line to a Purged Packed Inlet
55
To Attach the Transfer Line to a Cool On-Column Inlet
57
To Remove the Fused Silica Column from the Transfer Line
59
To Install a Fused Silica Column into the Transfer Line
61
To Use Prosteel Tubing
66
4 Consumables and Parts
67
Consumables and Parts for the Agilent 7697A Headspace Sampler
68
