36 Operating Guide
3 Software Keypad Operation

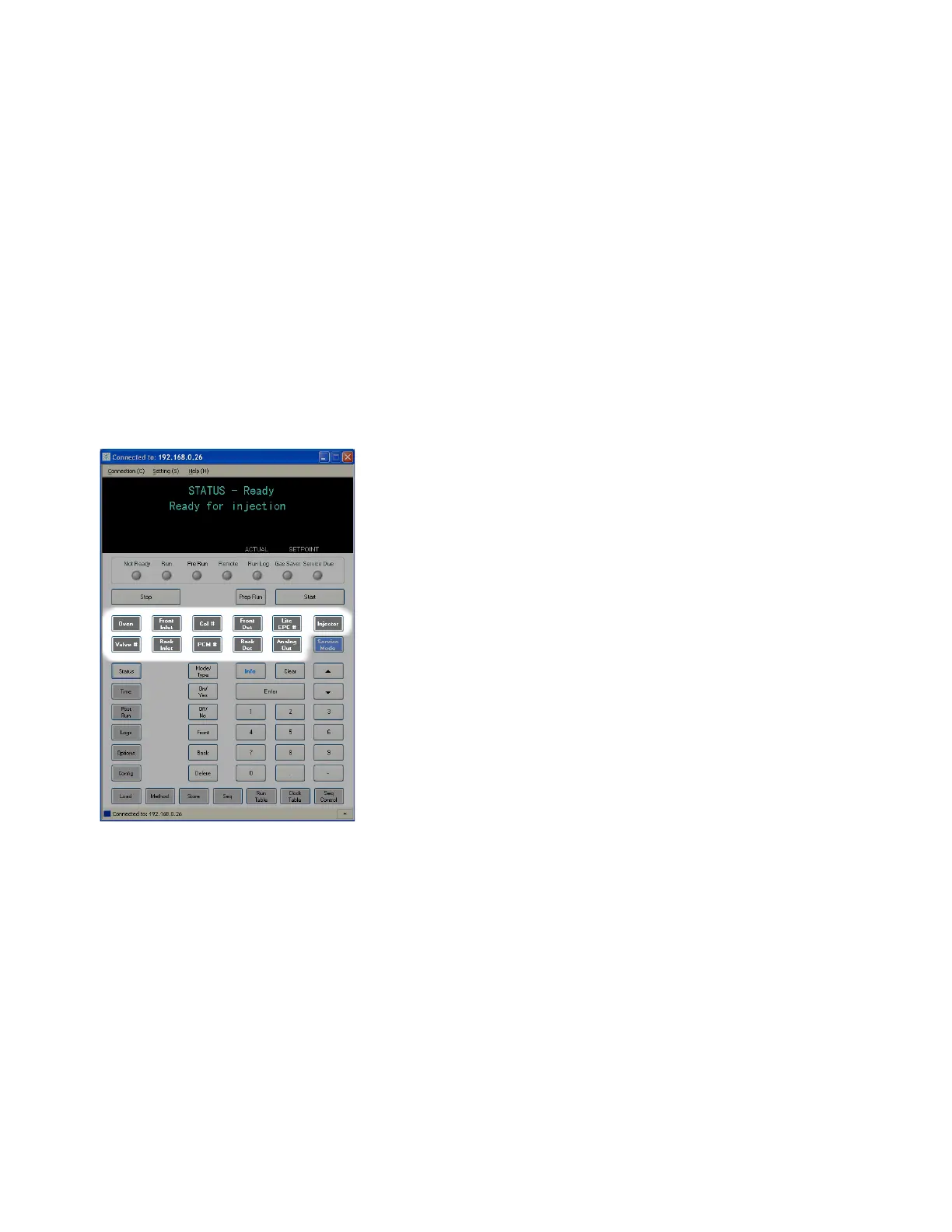

The GC Component Keys
These keys are used to set the temperature, pressure, flow,
velocity, and other method operating parameters.
To display the current settings, press any one of these keys.
More than three lines of information may be available. Use
the scroll keys to view additional lines, if necessary.
To change settings, scroll to the line of interest, enter the
change, and press [Enter].
For context- sensitive help, press [Info]. For example, if you
press [Info] on a setpoint entry, the help provided would be
similar to: Enter a value between 0 and 350.
[Oven] Sets oven temperatures, both isothermal
and temperature programmed.
[Front Inlet]
[Back Inlet]
Controls inlet operating parameters.
[Col #] Controls column pressure, flow, or
velocity. Can set pressure or flow ramps.
[PCM #] Controls column pressure, flow, or velocity
for accessory pneumatic control module(s).
Can set pressure or flow ramps.
[Front Det]
[Back Det]
Controls detector operating parameters.
[Lite EPC #] Provides pneumatics to an inlet, detector,
or other device. Use to configure the
detector EPC for use. Can be used for
pressure programming.
[Injector] Edits injector control parameters such as
injection volumes and sample and solvent
washes.
[Valve #] Allows for configuration or control of the
gas sampling valve (GSV) and/or switching
valves on or off.
[Analog Out] Assigns a signal to the analog output. The
analog output is located on the back of
the GC.
