Setting Up a Clock Signal Setting Up Generic and Advanced Signals
Agilent 81133A/81134A Pulse Generator User’s Guide, August 2002 31

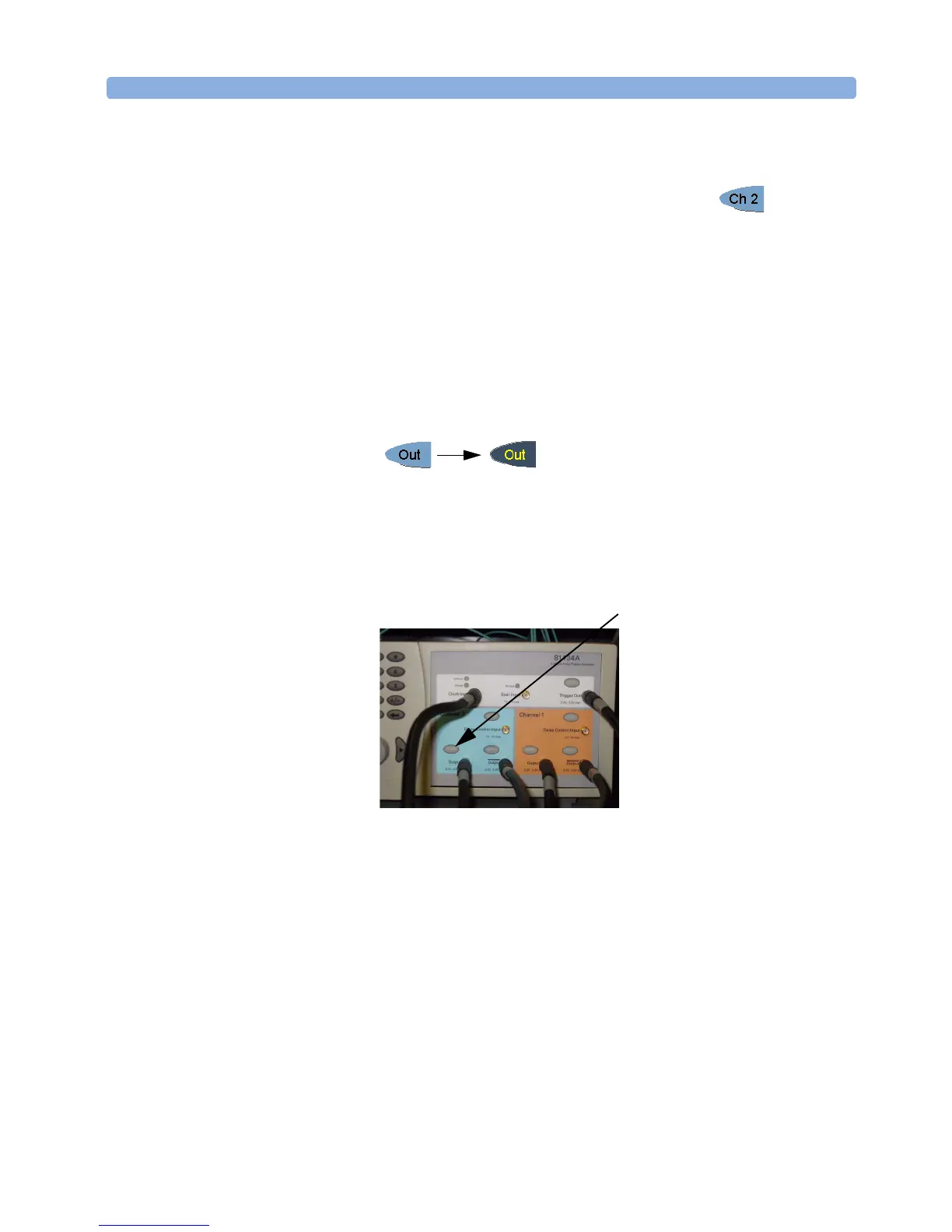

Channel 2 Settings To set the channel parameters for channel 2:
1 Switch to channel 2 by pressing the Ch2 softkey .
2 Select the pattern mode Square.
3 Set the Freq. Divider to 2.
4 In the Levels panel:
–Switch Ampl to High and set High to 1.0 V.
–Set Low to 0 V.
5 Enable the Channel 2 normal Output either:
By pressing the respective softkey in the user interface.
– OR –
By pressing the normal Out softkey for channel 2 next to the Output
port.
Normal Out
Channel 2
