Setting Up a Pulse Signal Setting Up Generic and Advanced Signals
Agilent 81133A/81134A Pulse Generator User’s Guide, August 2002 37
5 Enable the Channel 1 normal Output:
By pressing the respective softkey in the user interface:
– OR –
By pressing the normal Out softkey for channel 1 next to the Output
port.

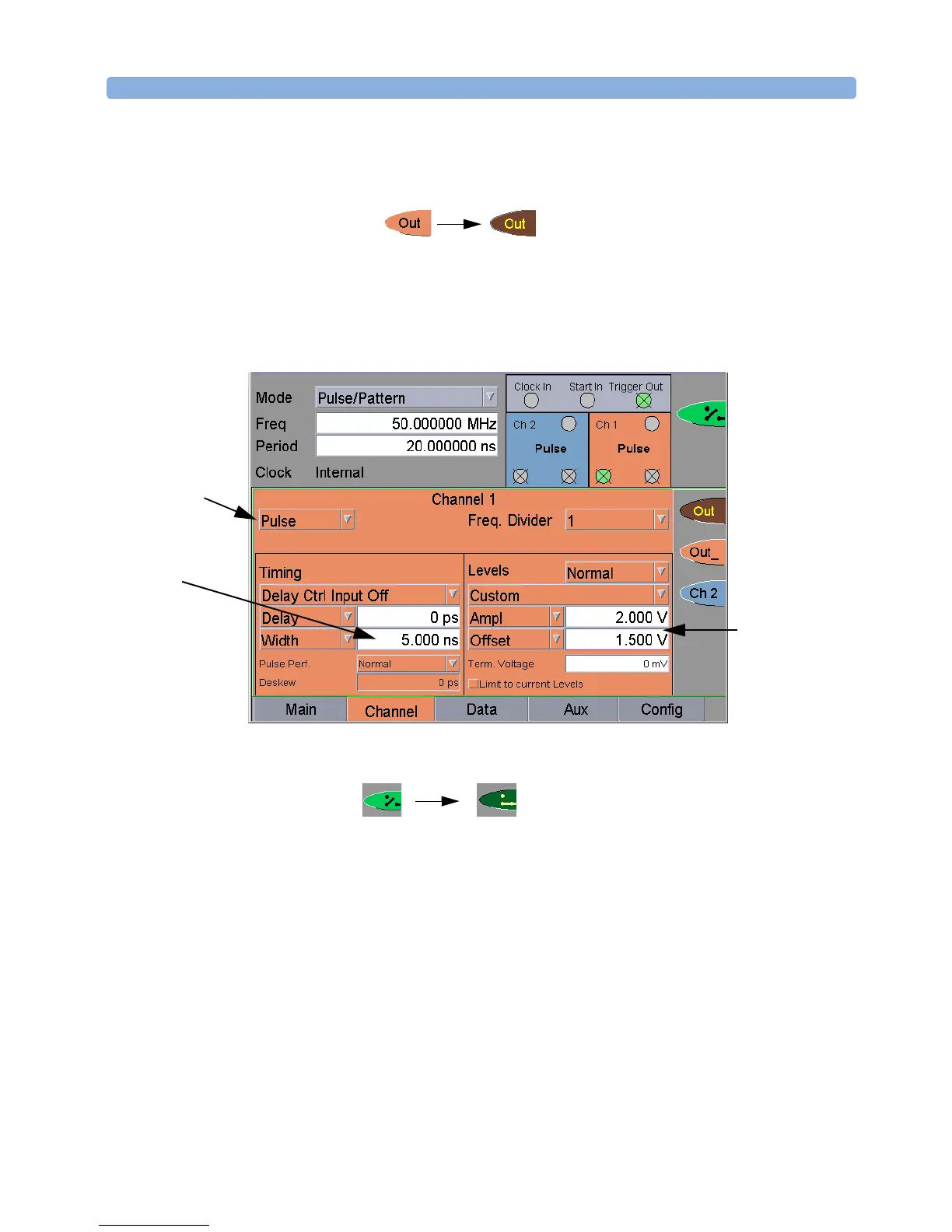

The Channel page now looks as follows:
Reconnect the DUT Enable the outputs:
Generated Signal Use the pulse generator’s TRIGGER OUT to trigger the scope.
To set up the trigger output:
1 On the Aux page, select the trigger mode Pulse.
The frequency of the trigger output equals the system frequency.
Levels
Width
Pattern Mode
