Setting Up Generic and Advanced Signals Setting Up a Pulse Signal
38 Agilent 81133A/81134A Pulse Generator User’s Guide, August 2002
2 Enable the trigger output.

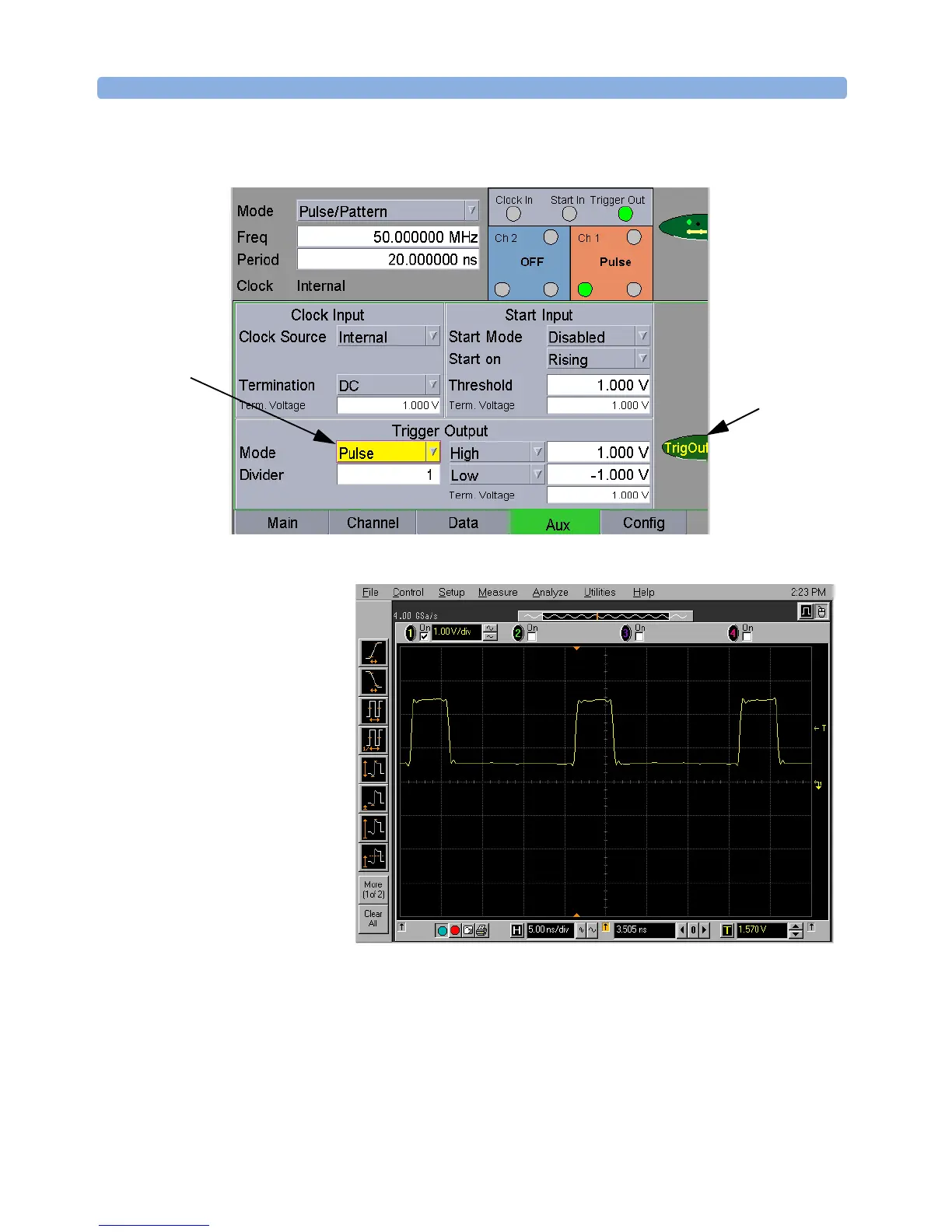

The signal as displayed on a standard oscilloscope is depicted below.
Trigger
Mode
TrigOut softkey
function
