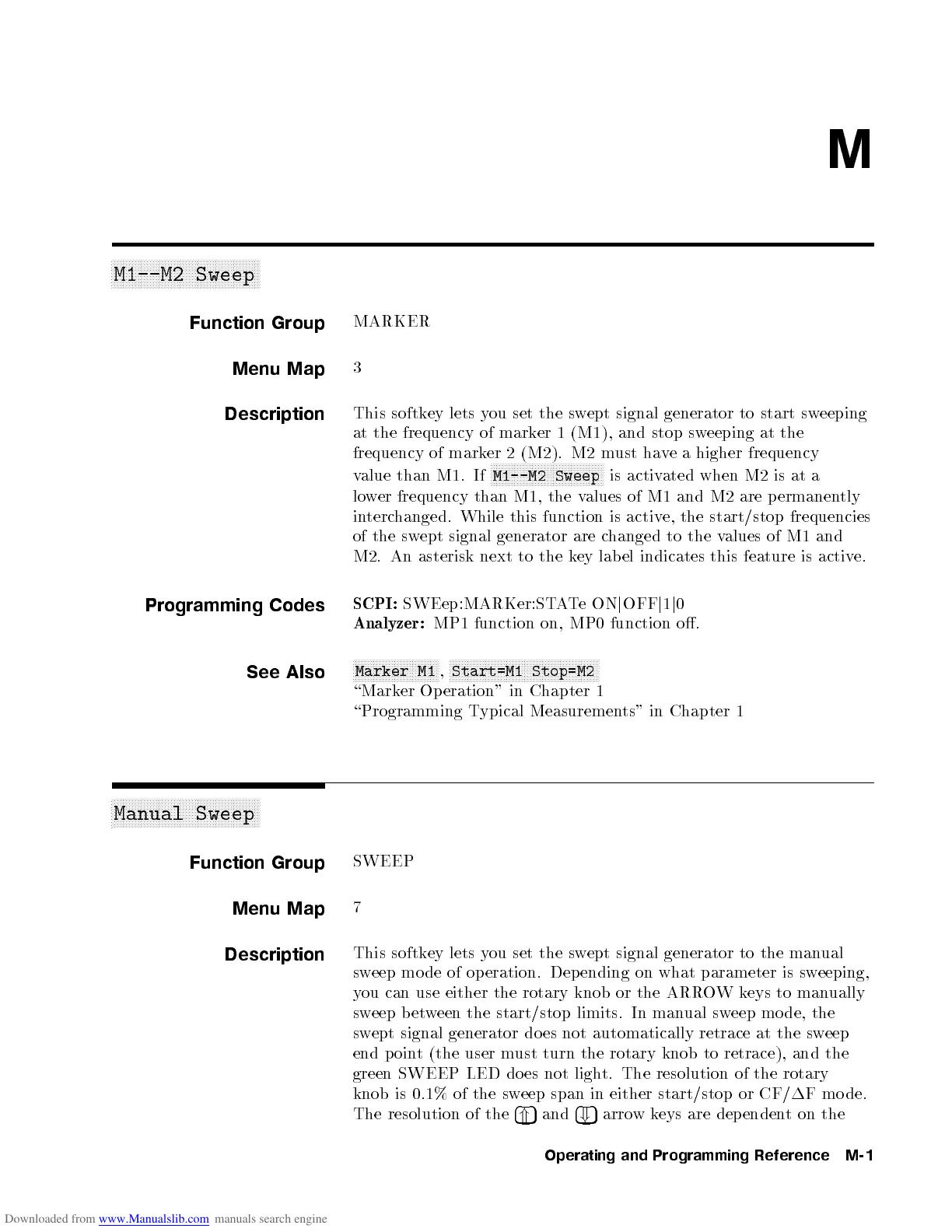

M1--M2 Sweep
Function Group
MARKER
Menu Map
3
Description
This softkey lets you set the swept signal generator to start sweeping
at the frequency of marker 1 (M1), and stop sweeping at the
frequency of marker 2 (M2). M2 must have a higher frequency
value than M1. If
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
M1--M2 Sweep is activated when M2 is at a
lower frequency than M1, the values of M1 and M2 are p ermanently
interchanged. While this function is active, the start/stop frequencies
of the swept signal generator are changed to the values of M1 and
M2. An asterisk next to the key lab el indicates this feature is active.
Programming Codes
SCPI: SWEep:MARKer:STATeON j OFF j 1 j 0
Analyzer: MP1 function on, MP0 function o.
See Also
NNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Marker M1 ,
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Start=M1 Stop=M2
\Marker Operation" in Chapter 1
\Programming Typical Measurements" in Chapter 1
a
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
Manual Sweep
Function Group
SWEEP
Menu Map
7
Description
This softkey lets you set the swept signal generator to the manual
sweep mo de of operation. Dep ending on what parameter is sweeping,
you can use either the rotary knob or the ARROWkeys to manually
sweep between the start/stop limits. In manual sweep mo de, the
swept signal generator do es not automatically retrace at the sweep
end p oint (the user must turn the rotary knob to retrace), and the
green SWEEP LED do es not light. The resolution of the rotary
knob is 0.1% of the sweep span in either start/stop or CF/1F mo de.
The resolution of the 4
*
5 and 4
+
5 arrow keys are dependent on the
Operating and Programming Reference M-1
