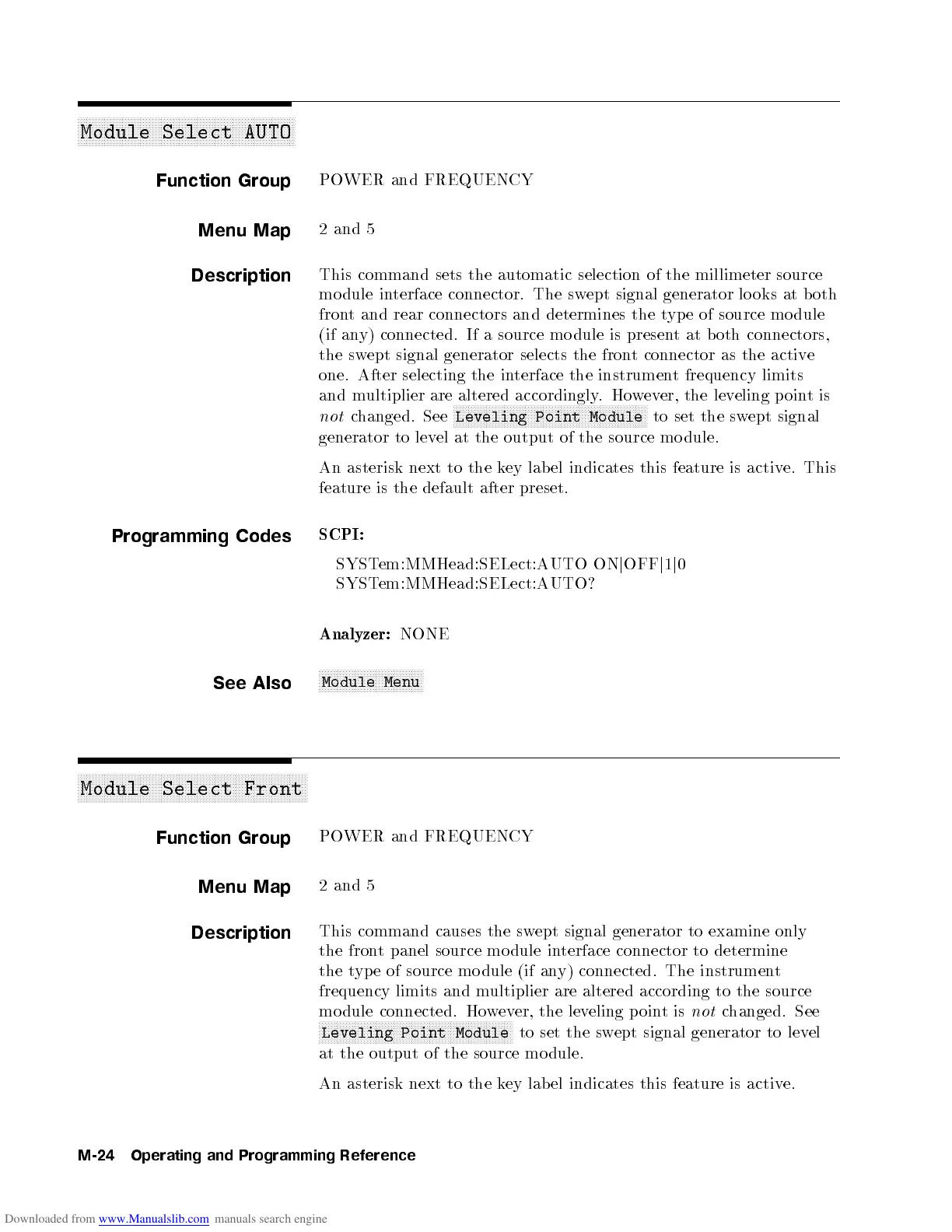

Module Select AUTO
Function Group
POWER and FREQUENCY
Menu Map
2 and 5
Description
This command sets the automatic selection of the millimeter source
mo dule interface connector. The swept signal generator lo oks at b oth
front and rear connectors and determines the type of source mo dule
(if any) connected. If a source mo dule is present at both connectors,
the swept signal generator selects the front connector as the active
one. After selecting the interface the instrument frequency limits
and multiplier are altered accordingly.However, the leveling pointis
not
changed. See
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Leveling Point Module
to set the swept signal
generator to level at the output of the source mo dule.
An asterisk next to the key lab el indicates this feature is active. This
feature is the default after preset.
Programming Codes
SCPI:
SYSTem:MMHead:SELect:AUTO ON
j
OFF
j
1
j
0
SYSTem:MMHead:SELect:AUTO?
Analyzer:
NONE
See Also
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Module Menu
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
Module Select Front
Function Group
POWER and FREQUENCY
Menu Map
2 and 5
Description
This command causes the swept signal generator to examine only
the front panel source mo dule interface connector to determine
the type of source mo dule (if any) connected. The instrument
frequency limits and multiplier are altered according to the source
mo dule connected. However, the leveling p ointis
not
changed. See
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Leveling Point Module
to set the swept signal generator to level
at the output of the source mo dule.
An asterisk next to the key lab el indicates this feature is active.
M-24 Operating and Programming Reference
