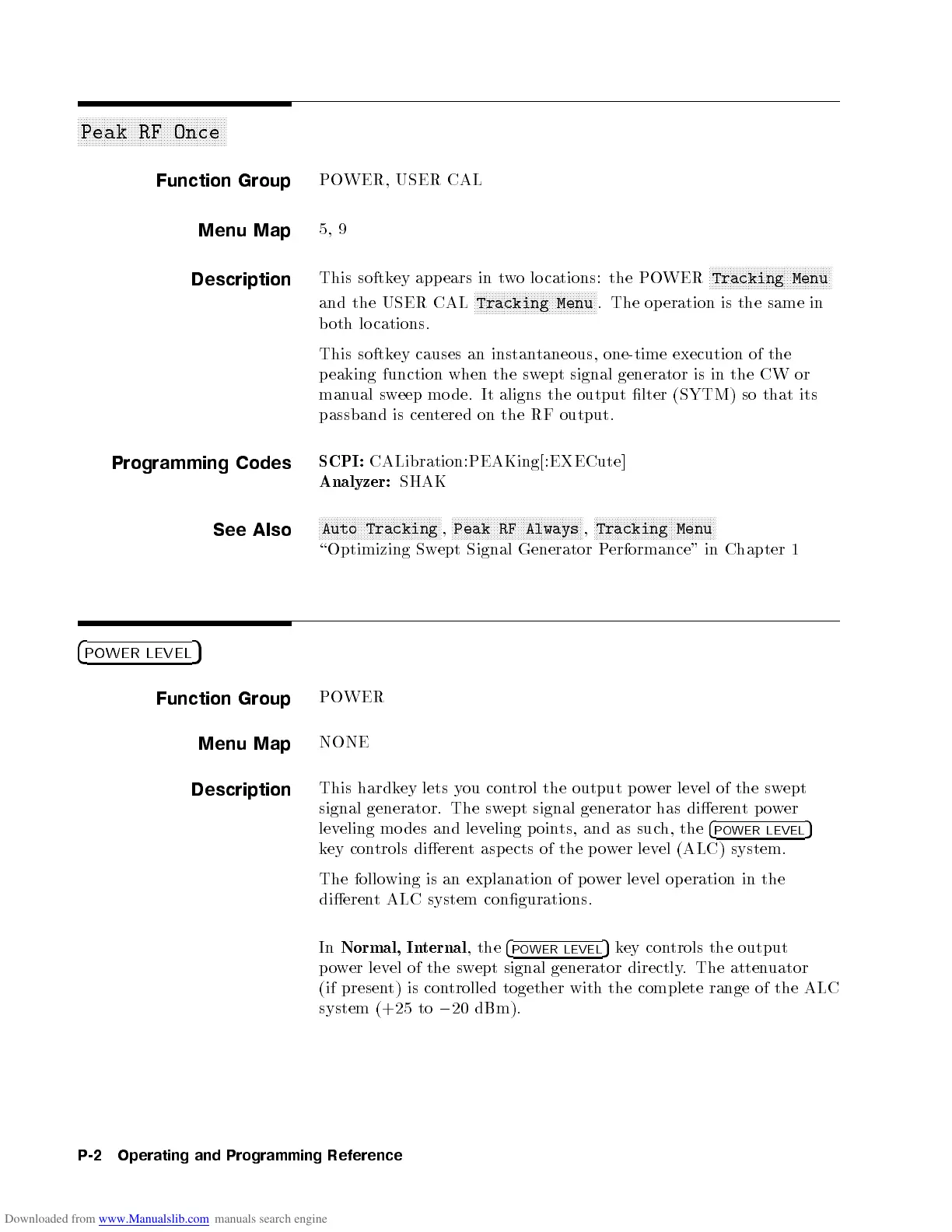

Peak RF Once
Function Group
POWER, USER CAL
Menu Map
5, 9
Description
This softkey appears in two lo cations: the POWER
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Tracking Menu
and the USER CAL
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Tracking Menu . The op eration is the same in
both lo cations.
This softkey causes an instantaneous, one-time execution of the
peaking function when the swept signal generator is in the CW or
manual sweep mo de. It aligns the output lter (SYTM) so that its
passband is centered on the RF output.
Programming Codes
SCPI: CALibration:PEAKing[:EXECute]
Analyzer: SHAK
See Also
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Auto Tracking ,
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Peak RF Always ,
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Tracking Menu
\Optimizing Swept Signal Generator Performance" in Chapter 1
4
POWER LEVEL
5
Function Group
POWER
Menu Map
NONE
Description
This hardkey lets you control the output p ower level of the swept
signal generator. The swept signal generator has dierentpower
leveling mo des and leveling p oints, and as such, the 4
POWER LEVEL
5
key controls dierent asp ects of the p ower level (ALC) system.
The following is an explanation of power level op eration in the
dierent ALC system congurations.
In Normal, Internal , the 4
POWER LEVEL
5 key controls the output
power level of the swept signal generator directly. The attenuator
(if present) is controlled together with the complete range of the ALC
system (+25 to 0 20 dBm).
