Installation Procedure
1. Refer to Figure 3-5. Remove handle trim strips.
2. Remove the four screws on each side that attach the handles to
the instrument; remove the handles.
3. Using the screws provided, attach the rack mount anges to the
swept signal generator.
4. Remove the b ottom and back feet and the tilt stands b efore rack
mounting the instrument.

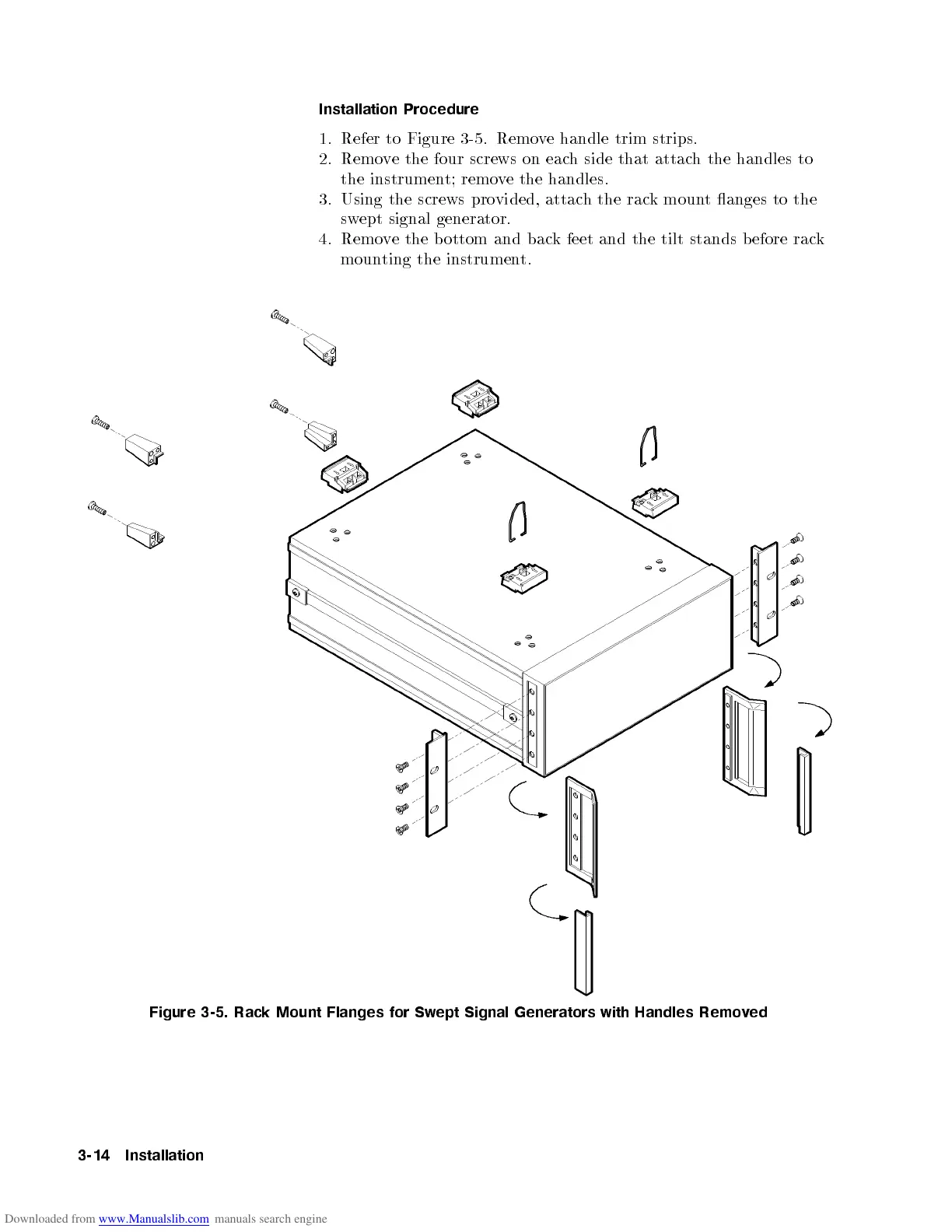

Figure 3-5. Rack Mount Flanges for Swept Signal Generators with Handles Removed
3-14 Installation
