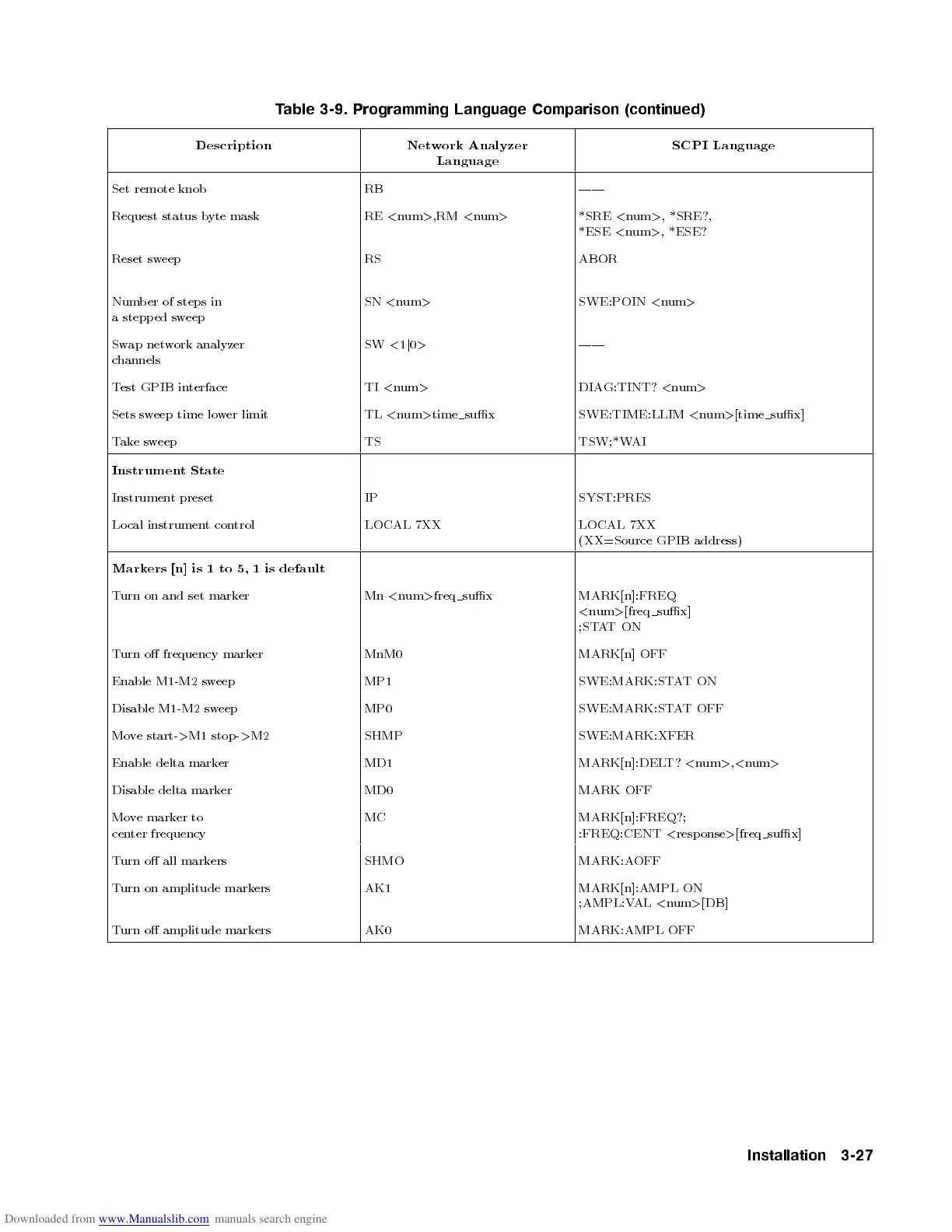

Table 3-9. Programming Language Comparison (continued)
Description Network Analyzer
Language
SCPI Language
Set remote knob RB ||
Request status byte mask RE < num > ,RM < num > *SRE < num > , *SRE?,
*ESE < num > , *ESE?
Reset sweep RS ABOR
Numb er of steps in
a stepp ed sweep
SN < num > SWE:POIN < num >
Swap network analyzer
channels
SW < 1 j 0 > ||
Test GPIB interface TI < num > DIAG:TINT? < num >
Sets sweep time lower limit TL < num > time sux SWE:TIME:LLIM < num > [time sux]
Takesweep TS TSW;*WAI
Instrument State
Instrument preset IP SYST:PRES
Lo cal instrument control LOCAL 7XX LOCAL 7XX
(XX=Source GPIB address)
Markers [n] is 1 to 5, 1 is default
Turn on and set marker Mn < num > freq sux MARK[n]:FREQ
< num > [freq sux]
;STATON
Turn o frequency marker MnM0 MARK[n] OFF
Enable M1-M2 sweep MP1 SWE:MARK:STATON
Disable M1-M2 sweep MP0 SWE:MARK:STAT OFF
Move start- > M1 stop- > M2
SHMP SWE:MARK:XFER
Enable delta marker MD1 MARK[n]:DELT? < num > , < num >
Disable delta marker MD0 MARK OFF
Move marker to
center frequency
MC MARK[n]:FREQ?;
:FREQ:CENT < resp onse > [freq sux]
Turn o all markers SHMO MARK:AOFF
Turn on amplitude markers AK1 MARK[n]:AMPL ON
;AMPL:VAL < num > [DB]
Turn o amplitude markers AK0 MARK:AMPL OFF
