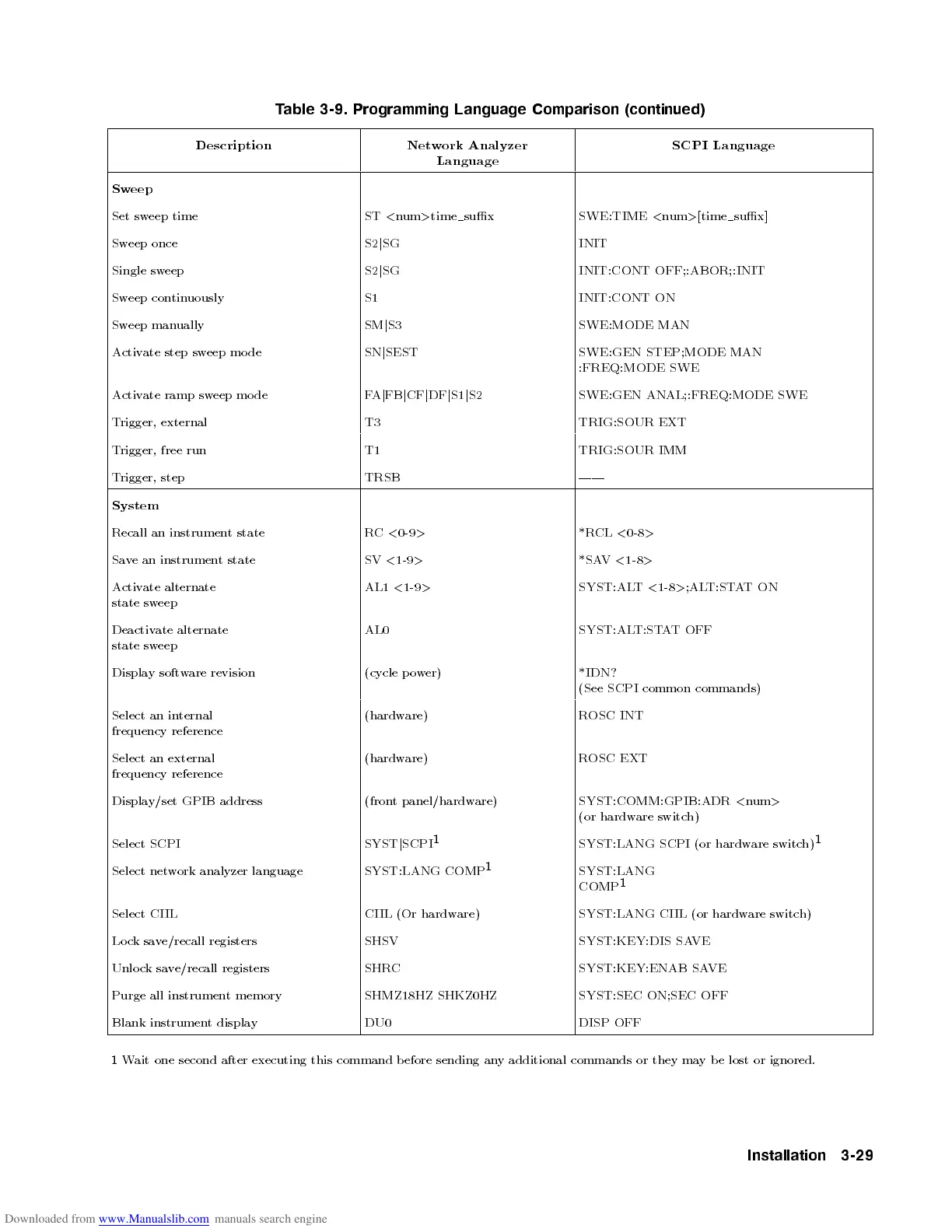

Table 3-9. Programming Language Comparison (continued)
Description Network Analyzer
Language
SCPI Language
Sweep
Set sweep time ST < num > time sux SWE:TIME < num > [time sux]
Sweep once S2 j SG INIT
Single sweep S2 j SG INIT:CONT OFF;:ABOR;:INIT
Sweep continuously S1 INIT:CONT ON
Sweep manually SM j S3 SWE:MODE MAN
Activate step sweep mo de SN j SEST SWE:GEN STEP;MODE MAN
:FREQ:MODE SWE
Activate ramp sweep mo de FA j FB j CF j DF j S1 j S2 SWE:GEN ANAL;:FREQ:MODE SWE
Trigger, external T3 TRIG:SOUR EXT
Trigger, free run T1 TRIG:SOUR IMM
Trigger, step TRSB ||
System
Recall an instrument state RC < 0-9 > *RCL < 0-8 >
Save an instrument state SV < 1-9 > *SAV < 1-8 >
Activate alternate
state sweep
AL1 < 1-9 > SYST:ALT < 1-8 > ;ALT:STATON
Deactivate alternate
state sweep
AL0 SYST:ALT:STAT OFF
Display software revision (cycle p ower) *IDN?
(See SCPI common commands)
Select an internal
frequency reference
(hardware) ROSC INT
Select an external
frequency reference
(hardware) ROSC EXT
Display/set GPIB address (front panel/hardware) SYST:COMM:GPIB:ADR < num >
(or hardware switch)
Select SCPI SYST j SCPI
1
SYST:LANG SCPI (or hardware switch)
1
Select network analyzer language SYST:LANG COMP
1
SYST:LANG
COMP
1
Select CIIL CI IL (Or hardware) SYST:LANG CIIL (or hardware switch)
Lo cksave/recall registers SHSV SYST:KEY:DIS SAVE
Unlo cksave/recall registers SHRC SYST:KEY:ENAB SAVE
Purge all instrument memory SHMZ18HZ SHKZ0HZ SYST:SEC ON;SEC OFF
Blank instrument display DU0 DISP OFF
1 Wait one second after executing this command b efore sending any additional commands or they ma
y b e lost or ignored.
